Ndl Industries G103-2131-36 Gas Connector 36 Inches

Product Description

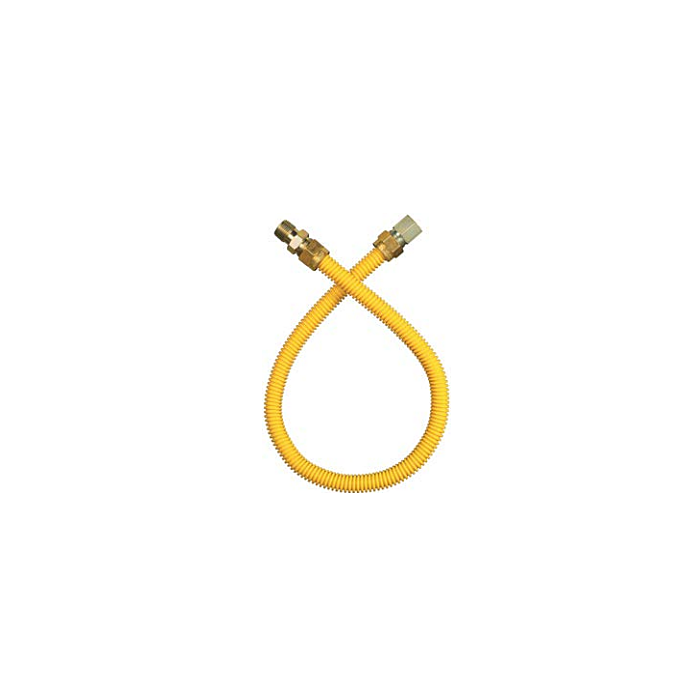

The NDL Industries G103-2131-36 is a stainless steel coated flexible gas connector designed for connecting gas appliances to residential or light commercial supply lines. The connector measures 36 inches in length with a 3/8 inch OD (1/4 inch ID) flexible core and features 1/2 inch MIP x 3/8 inch MIP end fittings. The stainless steel coating provides corrosion resistance and mechanical protection for the flexible inner tube. This type of connector is typically installed by licensed plumbers or gas fitters during appliance hookups involving natural gas or liquid propane systems.

This gas connector is suited for residential and light commercial appliance installations where a flexible connection is required between a fixed gas supply line and a movable or stationary appliance. Typical applications include ranges, dryers, water heaters, and similar gas-fired equipment. The 36 inch length provides adequate slack for standard rough-in configurations and allows for minor appliance repositioning without disconnecting the supply line.

Key Features

• Stainless steel coated construction for corrosion resistance and durability
• 36 inch length accommodates standard appliance hookup distances
• 1/2 inch MIP x 3/8 inch MIP fittings for direct connection to common supply valves and appliance inlets
• 3/8 inch OD flexible body with 1/4 inch ID inner diameter
• Flexible design allows for minor movement and vibration isolation

Compatibility

Designed as an OEM-style replacement or new-installation connector for residential and light commercial gas appliances using 1/2 inch MIP supply-side connections and 3/8 inch MIP appliance inlet fittings.

Installation Notes

Installation must be performed by a licensed plumber or certified gas fitter in accordance with local codes and the International Fuel Gas Code (IFGC). Shut off the gas supply valve completely before disconnecting any existing connector or making new connections. Apply an approved pipe thread sealant or PTFE tape rated for gas service on all threaded connections. Never over-bend or kink the flexible body, and do not reuse a connector that has been previously installed.

Technical Specifications

• Length: 36 inches
• Outer Diameter: 3/8 inch
• Inner Diameter: 1/4 inch
• End Fittings: 1/2 inch MIP x 3/8 inch MIP
• NPT Size: 1/2 inch x 3/8 inch MPT
• Weight: 0.611 pounds
• Box Quantity: 25

Standard Information

• Brand: NDL Industries
• Manufacturer Part Number: G103-2131-36
