Ndl Industries G103-2131-12 Gas Connector 12 Inches

Product Description

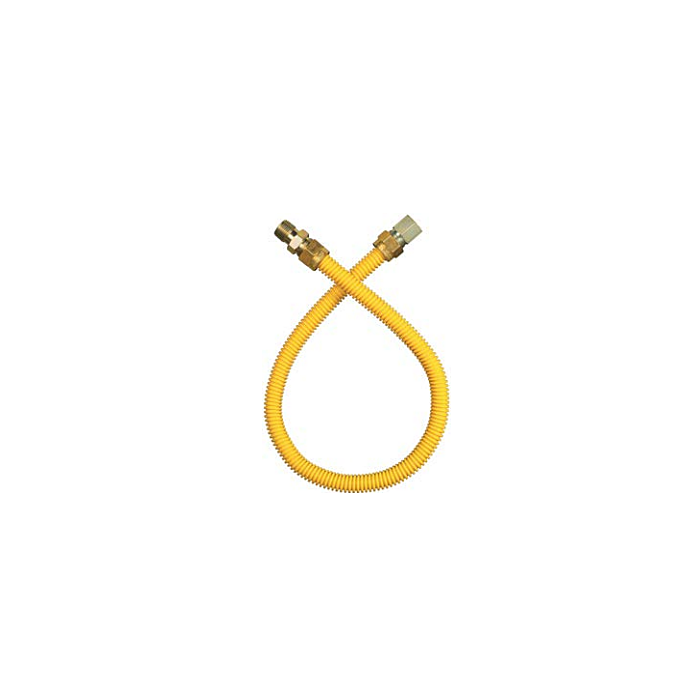

The NDL INDUSTRIES G103-2131-12 is a stainless steel coated flexible gas connector designed for connecting gas appliances to residential supply lines. The connector measures 12 inches in length with a 3/8 inch OD (1/4 inch ID) flexible body and features 1/2 inch MIP on one end and 3/8 inch MIP on the other. The stainless steel coating provides corrosion resistance and durability in typical gas appliance installations. This fitting is handled and installed by licensed plumbers and gas fitters working on residential and light commercial gas appliance connections.

This connector is suited for residential gas appliance hookups including ranges, dryers, and other natural gas or propane appliances requiring a flexible supply line transition. The 12 inch length accommodates standard appliance setbacks from the gas stub-out. The 1/2 inch by 3/8 inch MIP thread configuration matches common residential gas supply valve and appliance inlet combinations. Installations must comply with applicable local gas codes and the International Fuel Gas Code (IFGC).

Key Features

• Stainless steel coated construction for corrosion resistance
• 12 inch length suits standard appliance installations
• 1/2 inch MIP x 3/8 inch MIP thread ends for common residential gas connections
• 3/8 inch OD flexible body with 1/4 inch ID flow path
• Sold in box quantities of 25 for trade restocking

Compatibility

Designed as an OEM-style replacement flexible gas connector for residential gas appliances using 1/2 inch MIP supply-side and 3/8 inch MIP appliance-side connections.

Installation Notes

Installation must be performed by a licensed plumber or qualified gas fitter in accordance with local codes and the IFGC. Shut off the gas supply at the service valve before disconnecting or installing any gas connector. Apply an approved gas-rated thread sealant or PTFE tape rated for gas service to all threaded connections. Do not kink, over-bend, or reuse a previously installed flexible gas connector.

Technical Specifications

• Length: 12 inches
• Outer Diameter: 3/8 inches
• Inner Diameter: 1/4 inches
• NPT Size: 1/2 inch x 3/8 inch MPT
• Item Weight: 0.405 pounds
• Box Quantity: 25

Standard Information

• Brand: NDL INDUSTRIES
• Manufacturer Part Number: G103-2131-12
