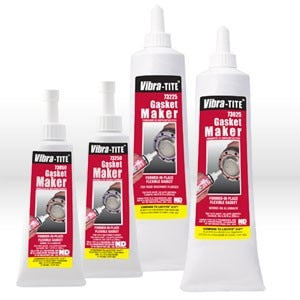

Nd Industries 73230 Vibra-tite Liquid Gasket 300 Ml

Product Description

The ND INDUSTRIES 73230 Vibra-Tite Liquid Gasket is a flexible flange sealant formulated to seal mating surfaces on mechanical assemblies subject to vibration and minor movement. Applied as a liquid, it fills surface irregularities and cures in place to form a durable, flexible gasket without the need for a pre-cut gasket sheet. The sealant operates across a temperature range of -65 degrees F to 300 degrees F and cures in 6 to 48 hours on unprimed surfaces or 1 to 6 hours on primed surfaces. A fluorescent blue color aids visual inspection during and after assembly. Licensed HVAC technicians, plumbers, and mechanical contractors working on flanged joints and housings will find this product suited to high-vibration installations.

This liquid gasket is used in residential and commercial applications where flanged metal surfaces, housings, and covers require a reliable seal against fluid or gas leakage. It is well suited for use on pump housings, gearboxes, compressor covers, and similar mechanical equipment where vibration could degrade a rigid sealant or cause a conventional cut gasket to shift or fail. The 300 ml cartridge size is appropriate for production line use or repeated field service work.

Key Features

• Flexible cure withstands minor surface movement caused by vibration
• Temperature rated from -65 degrees F to 300 degrees F
• Fluorescent blue color allows visual confirmation of sealant coverage during assembly inspection
• Cure time of 6 to 48 hours on unprimed surfaces; 1 to 6 hours on primed surfaces
• 300 ml cartridge format for field service or production applications

Compatibility

Designed for use as a flexible flange sealant on metal mating surfaces in mechanical assemblies subject to vibration, including pump housings, compressor covers, and gearbox flanges.

Installation Notes

This sealant is typically applied by licensed HVAC technicians, plumbers, or industrial mechanics. Mating surfaces should be clean, dry, and free of oil or old gasket material before application. Allow full cure time before pressurizing or operating the assembly. Refer to applicable mechanical codes and the manufacturer application instructions for surface preparation and bead size guidance.

Technical Specifications

• Volume: 300 ml
• Color: Fluorescent Blue
• Temperature Range: -65 degrees F to 300 degrees F
• Cure Time (Unprimed): 6 to 48 hours
• Cure Time (Primed): 1 to 6 hours
• Weight: 0.66 pounds
• UPC: 745619000057

Standard Information

• Brand: ND INDUSTRIES
• Manufacturer Part Number: 73230
