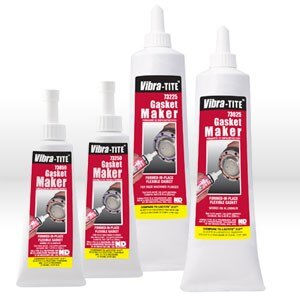

Nd Industries 70930 Vibra-tite Liquid Gasket Maker 300 Ml

Product Description

The ND INDUSTRIES 70930 Vibra-Tite Liquid Gasket Maker is a flexible flange sealant formulated to seal mating surfaces while accommodating minor movement caused by vibration. Packaged in a 300 ml container, it cures to a resilient seal rated for a temperature range of -65 to 300 degrees F. The fluorescent blue color aids visual inspection during and after assembly, making it easier to confirm full coverage on flange surfaces. Cure time runs 6 to 48 hours on unprimed surfaces and 1 to 6 hours on primed surfaces. HVAC technicians, plumbers, and mechanical contractors use this product when sealing flanged joints on equipment subject to vibration or thermal cycling.

This gasket maker is suited for use on metal-to-metal flange connections in residential and commercial mechanical systems. It applies well to compressor housings, pump flanges, gear covers, and similar surfaces where a formed-in-place gasket is preferred over a cut gasket. Its flexibility after cure makes it appropriate for assemblies that experience repeated vibration or minor flexing during operation.

Key Features

• Temperature range of -65 to 300 degrees F for broad service conditions
• Flexible cure resists cracking under vibration and minor joint movement
• Fluorescent blue color simplifies visual assembly inspection
• Unprimed cure: 6 to 48 hours; primed cure: 1 to 6 hours
• 300 ml container provides sufficient volume for multiple flange applications

Compatibility

Designed as a formed-in-place liquid gasket maker for flanged metal joints in mechanical and HVAC equipment where flexibility and vibration resistance are required.

Installation Notes

Clean and degrease all mating surfaces thoroughly before applying the sealant to ensure proper adhesion. Apply a continuous bead around the flange and assemble parts within the product's open time. Allow full cure before pressurizing or returning the assembly to service. Installation should follow the equipment manufacturer's service procedures and applicable mechanical codes.

Technical Specifications

• Volume: 300 ml
• Temperature Range: -65 to 300 degrees F
• Cure Time (Unprimed): 6 to 48 hours
• Cure Time (Primed): 1 to 6 hours
• Color: Fluorescent Blue
• Weight: 0.86 pounds
• UPC: 745619000026

Standard Information

• Brand: ND INDUSTRIES
• Manufacturer Part Number: 70930
