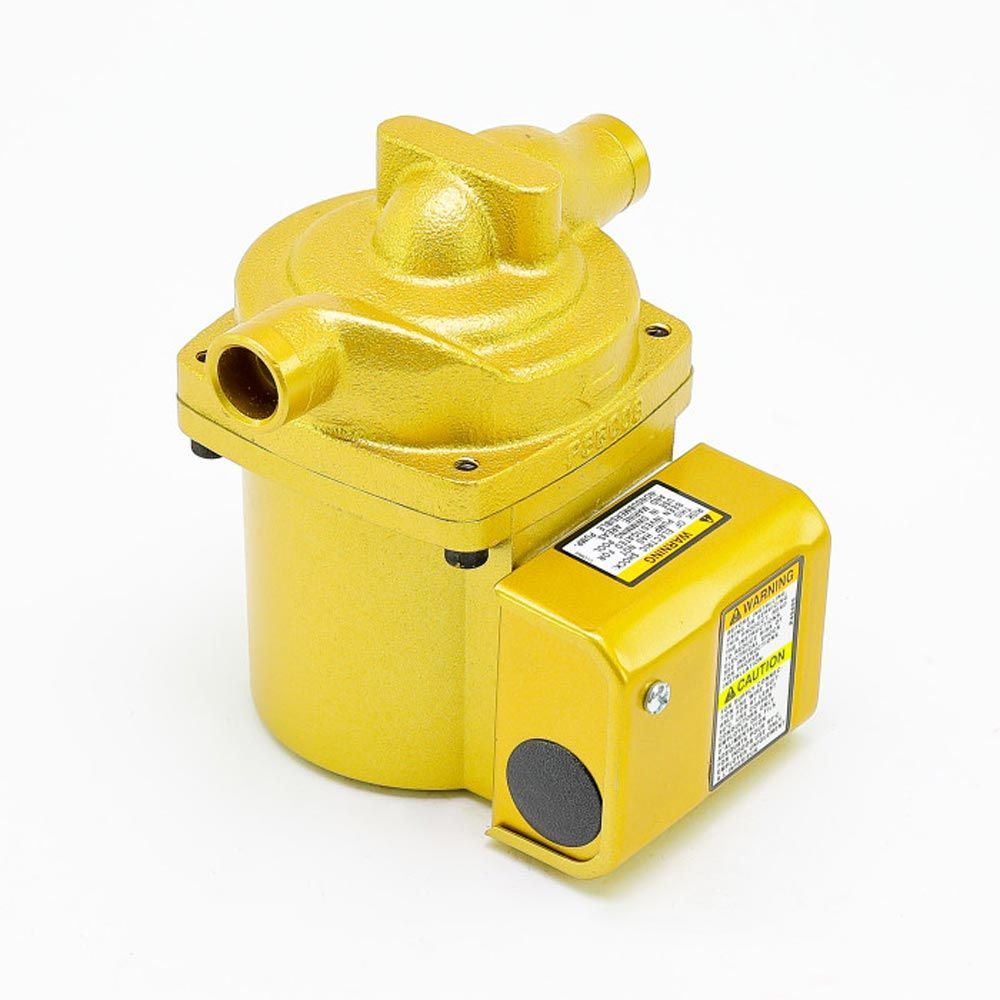

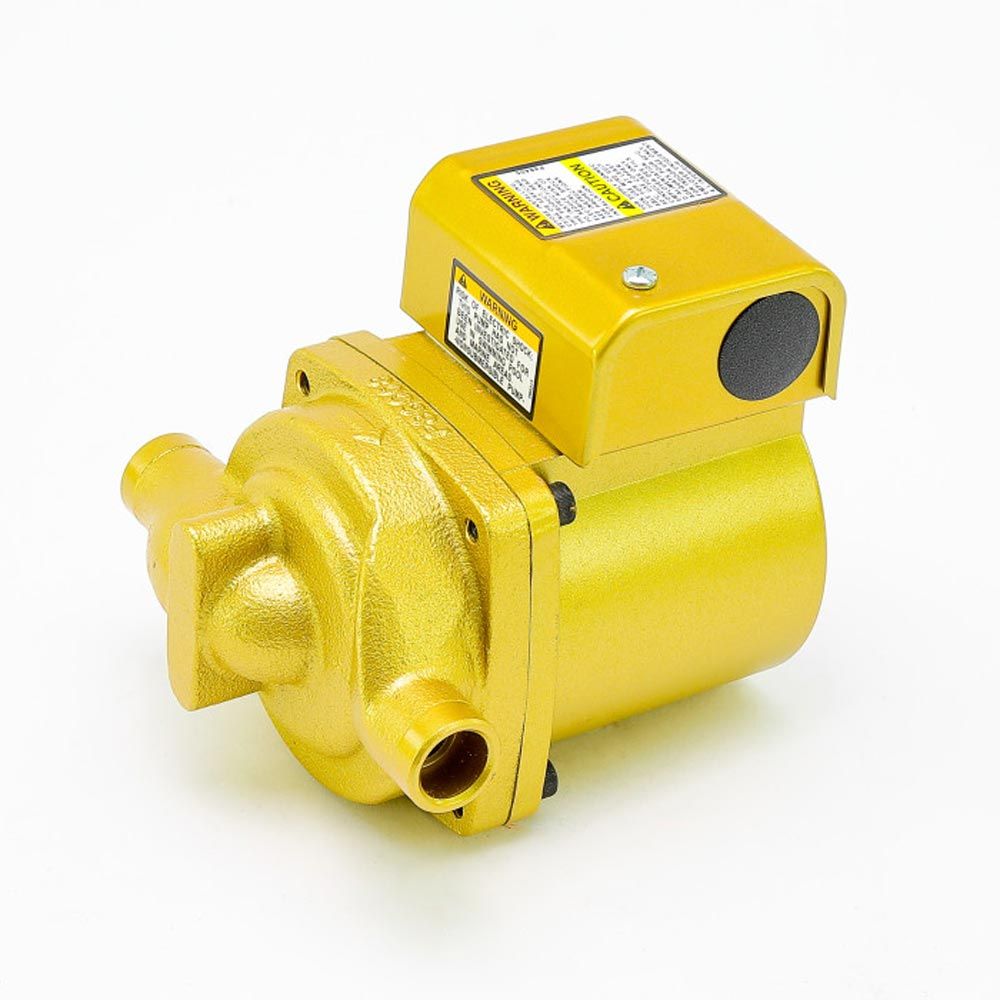

Bell & Gossett 103259LF NBF-10S/LW Bronze Circulator Pump 1/40 HP

Product Description

The Bell & Gossett 103259LF is a NBF-10S/LW Bronze Circulator Pump with a 1/40 horsepower motor. It is designed for circulating water in various applications, particularly in heating and cooling systems. With an operating voltage of 115 VAC and a maximum flow rate of ten gallons per minute, this circulator pump excels in efficiency and reliability.

• 1/40 HP motor providing sufficient power for various applications.
• Maximum head capability of fifteen feet for effective fluid movement.
• Constructed from bronze for durability and resistance to corrosion.

Product Highlights

The Bell & Gossett NBF-10S/LW features a compact design ideal for tight installation spaces while offering robust performance. This pump operates quietly and minimizes energy consumption.

Product Information

Standard Information

• Brand: Bell & Gossett
• Manufacturer: Xylem

Technical Specifications

• MPN: 103259LF
• HP Rating: 1/40 hp
• Flow Rate: 10 gpm
• Maximum Head: 15 ft
• Voltage Rating: 115 VAC
• Amperage Rating: 0.46 A
• Temperature Rating: 230 deg F
• Pressure Rating: 150 psi
• Frequency Rating: 60 Hz
• Phase: 1 ph
• Dimensions: 7.15 inches (Length) x 6.95 inches (Width) x 5.85 inches (Height)
