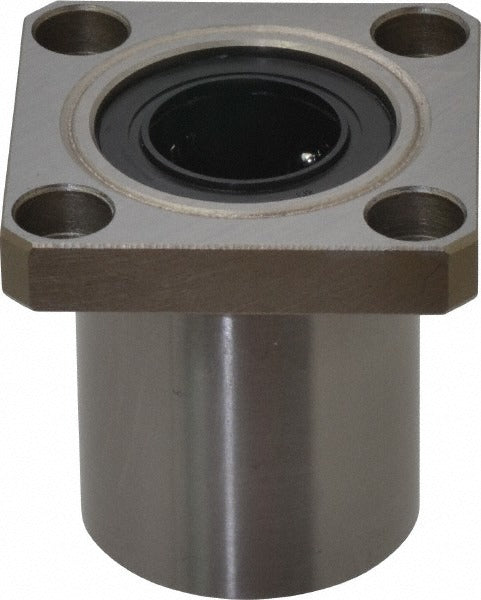

Nb Swk 10GUU Square Flanged Single Linear Bearing

Product Description

The NB SWK 10GUU is a square flanged single linear bearing designed for linear motion applications requiring precise shaft guidance and a rigid mounting footprint. With a 0.625-inch inside diameter and a 1.125-inch outside diameter, this bearing accepts a standard 5/8-inch shaft and fits into equipment where a square flange mount provides more secure, bolt-down retention than a round housing. The overall length measures 1.5 inches and the flange width is 2.0 inches, giving installers a compact but stable footprint. At 2 pounds, this is a solid, production-grade component intended for mechanical technicians and maintenance professionals working on linear motion systems.

This bearing is suited for use in industrial machinery, automation equipment, and precision linear motion assemblies where a square flanged housing is specified. The square flange configuration allows direct bolting to a mounting plate or frame surface, making it a practical choice for both original equipment builds and maintenance replacement work in light to medium-duty linear motion systems.

Key Features

• Square flanged single bearing style for rigid, bolt-down mounting
• 0.625-inch inside diameter accepts standard 5/8-inch linear shafting
• 1.125-inch outside diameter for compact housing integration
• 1.5-inch overall length suits space-constrained linear motion assemblies
• 2.0-inch flange width provides a stable, broad mounting footprint

Compatibility

Designed as an OEM-style replacement or direct-fit component for linear motion systems specifying a square flanged single bearing with a 5/8-inch bore and 1-1/8-inch outside diameter.

Installation Notes

Installation should be performed by a qualified mechanical technician familiar with linear motion systems. Power down or de-energize any driven equipment before removing or installing the bearing. Ensure the mating shaft and mounting surface are clean and free of burrs before seating the bearing. Follow the equipment manufacturer's torque specifications for flange fasteners.
