Navtech GB4-24 Insulated ground bus mounting plate (4 x 24 x 1/4)

Product Description

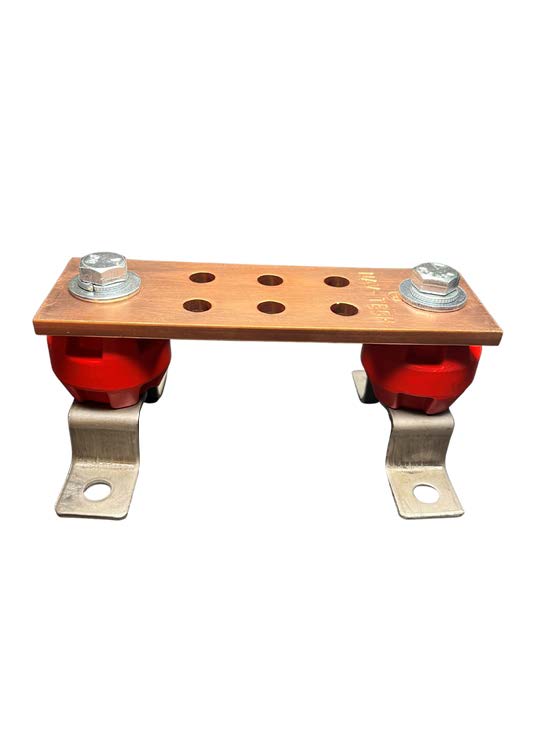

Navtech GB4-24 is an insulated ground bus mounting plate (ground bar) constructed from Type 110 alloy solid copper. The bus measures 4 x 24 x 1/4 inches, stands 2-1/2 inches from the backboard or wall, and accepts up to 21 lugs for electrical grounding and bonding applications. The kit includes insulators, standoff brackets, and stainless steel mounting hardware for installation and secure lug attachment.

• Type 110 alloy solid copper construction; solid copper grounding bus for grounding and bonding
• Dimensions 4 x 24 x 1/4 in; stands 2-1/2 in from backboard or wall; accepts up to 21 lugs
• Accepts lug centers 3/4 in, 1 in, or 1-3/4 in and accepts lugs with 3/8 in bolts; includes insulators, standoff brackets, stainless steel bolts, lock washers, flat washers

Product Highlights

Insulated solid copper ground busbar with 2-1/2 in standoff and up to 21 lug capacity

Product Information

Standard Information

• Brand: NAVTECH
• Manufacturer Part Number: GB4-24

Technical Specifications

• Brand: Navtech
• Manufacturer Part Number: GB4-24
• Product type: Insulated ground bus mounting plate (ground bar)
• Material: Type 110 alloy solid copper
• Dimensions: 24 in x 4 in x 0.25 in
• Length: 24 in
• Width: 4 in
• Thickness: 0.25 in
• Stand-off distance: 2.5 in from backboard or wall
• Lug capacity (24"): Up to 21 lugs
• Accepted lug centers: 3/4 in, 1 in, 1-3/4 in
• Accepted lug bolt size: 3/8 in bolts
• Includes: Busbar; 2 insulators; 2 standoff brackets; 4 stainless steel bolts; 4 lock washers; 4 flat washers
• UPC: 61698320991
