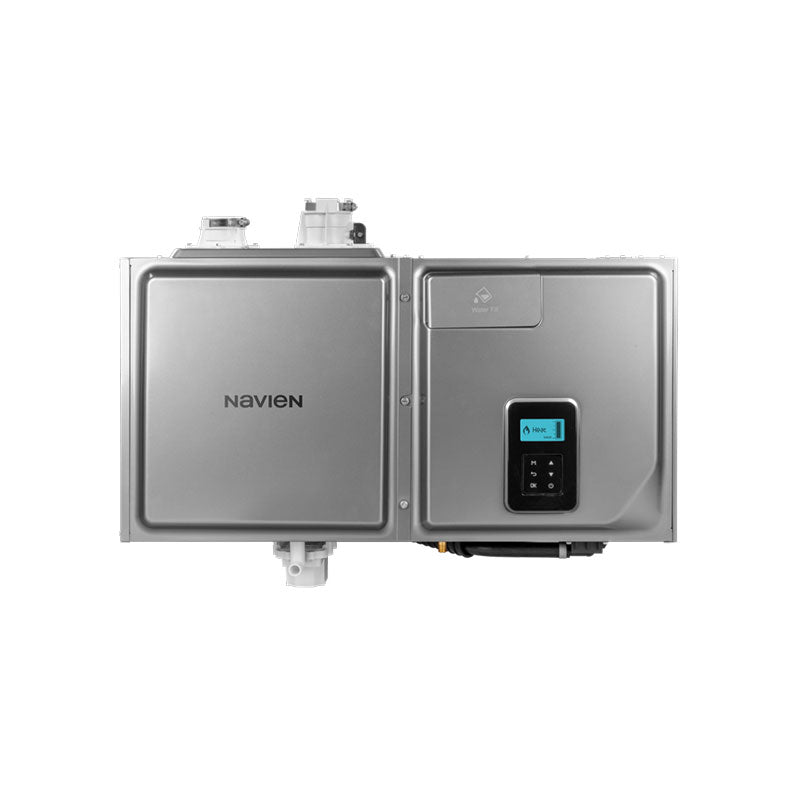

Navien PNPF7000018HH001 NPF700 condensing gas hydro-furnace 60000 Btu/hr

Product Description

The NAVIEN PNPF7000018HH001 NPF700 condensing gas hydro-furnace features 97 % energy efficiency and operates at 120 VAC. It has a flow rate of 720 to 1200 cfm and a BTUH capacity of 60000 Btu/hr. The unit includes an electronic ignition system and an ECM motor. It is designed for direct or non-direct venting with a 2 in vent.

• Modulating burner and blower provide a 15% to 100% firing rate.
• Durable stainless steel combustion heat exchanger ensures quiet operation.
• Compatible with 2 in PVC vent up to 70 ft and 3 in PVC vent up to 140 ft.

Product Highlights

This condensing gas hydro-furnace offers variable capacity, a stainless steel heat exchanger, and versatile venting options for efficient and quiet operation.

Product Information

Standard Information

• Brand: NAVIEN
• Manufacturer Part Number: PNPF7000018HH001

Technical Specifications

• Item Name: Condensing Gas Hydro-furnace
• Model No: NPF700
• Configuration: Horizontal
• Energy Efficiency: 97 %
• Voltage Rating: 120 VAC
• Current Rating: 7.6 A
• Flow Rate: 720 to 1200 cfm
• Temperature Rating: 95 to 150 deg C
• Water Connection: 1/4 in NPT
• Material: Steel
• BTUH Capacity: 60000 Btu/hr
• Vent Type: Direct/Non-Direct
• Ignition System: Electronic
• Vent Size: 2 in
• Motor Type: ECM
• Capacity in Tons: 1.5 to 3 ton
• Standards/Approvals: AHRI Certified, ASME Specified, ANSI Z21.47/CSA 2.3 and Z21.13/CSA 4.9, Intertek, SCAQMD
