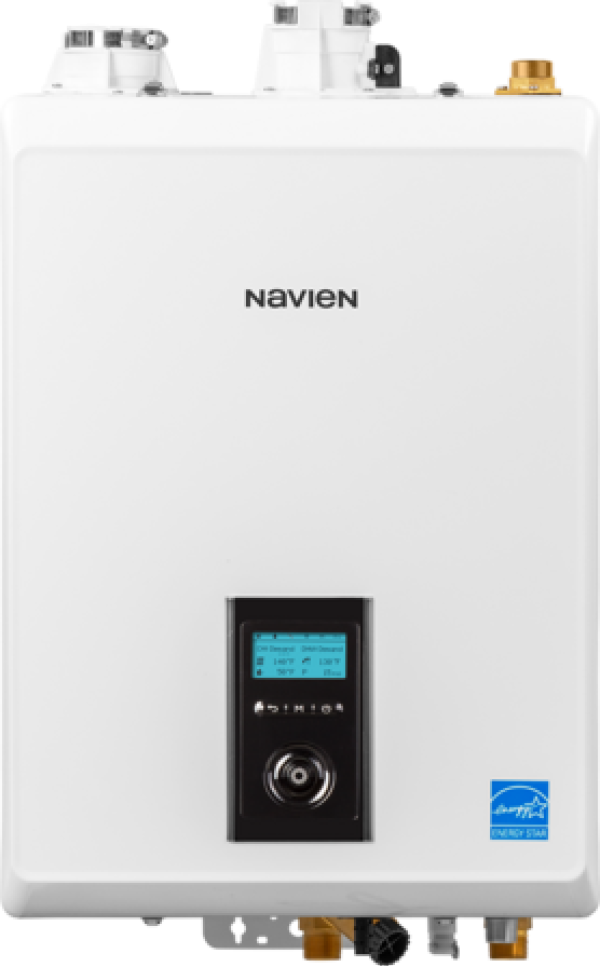

Navien PNHB0023LZ001 nhb-80 condensing boiler 80,000 btu

Product Description

The NAVIEN PNHB0023LZ001 NHB-80 is a condensing boiler with an 80,000 BTU input. It features high efficiency condensing and dual stainless steel heat exchangers. The boiler supports SCH40, 2" venting up to 65' and 3" venting up to 150'. It is designed for indoor wall-hung installation and has electronic ignition.

• High efficiency condensing
• Dual stainless steel heat exchangers
• SCH40, 2" venting up to 65'
• 3" venting up to 150'

Product Highlights

High-efficiency condensing boiler with dual stainless steel heat exchangers and versatile venting options.

Product Information

Standard Information

• Brand: NAVIEN
• Manufacturer Part Number: PNHB0023LZ001
• Country of Origin: KOREA, REPUBLIC OF

Technical Specifications

• Manufacturer: Navien Inc.
• Manufacturer Part Number: NHB-80H
• UPC: 884954939759
• Dimensions: 17.3" W x 23.8" H x 12.8" D (43.9cm W x 60.5cm H x 32.5cm D)
• Boiler weight: 73 lbs (33.1 kg)
• Installation location: Indoor wall-hung
• Venting type: Forced draft direct vent
• Max Vent Length: 2" PVC venting up to 65', 3" up to 150'
• Ignition: Electronic ignition
• Natural gas supply pressure (from source): 3.5 " WC to 10.5 " WC (0.87 kPa to 2.61 kPa)
• Propane gas supply pressure (from source): 8 " WC to 13.5 " WC (1.99 kPa to 3.36 kPa)
• Natural gas manifold pressure: -0.17 " WC (-0.042 kPa)
• Propage gas manifold pressure: -0.17 " WC (-0.042 kPa)
• Gas Inlet Connection Size: 3/4" NPT (male)
• Main Power Supply: 120V AC, 60Hz
• Max Power Consumption: Less than 10A
• Casing Material: Cold rolled carbon steel
• Heat Exchanger Material: Stainless Steel
• Exhaust Venting: 2" or 3" PVC, CPVC, approved polypropylene (see installation manual for more details) 2" or 3" special gas vent type BH (Class III, A/B/C)
• Intake Venting: 2" or 3" PVC, CPVC, approved polypropylene (see installation manual for more details) 2" or 3" special gas vent type BH (Class III, A/B/C)
• Safety Devices: Flame rod, APS, gas valve operation detector, ignition operation detector, water temp high limit switch, exhaust temp high limit sensor, Vent Installation Detector (VID)
• AFUE: 95.0%
• BtuH Input: 80000
• DOE Htg. Capacity BtuH: 74,000
• Depth: 12"
• Energy Star: Y
• Gas Type: NG or LP
• Height: 24"
• Thermal Efficiency: 0.95 AFUE
• Width: 17"
• Wt. Lbs.: 73
