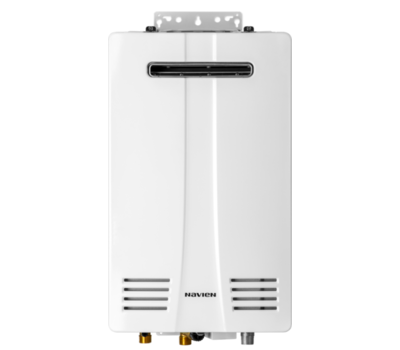

Navien PNGW7000028E001 NPN-199E 199900 BTU Premium Non-Condensing Tankless Natural Gas Water Heater

Product Description

The Navien PNGW7000028E001 NPN-199E is a premium non-condensing tankless natural gas water heater. It operates without a storage tank. When you turn on a hot water faucet, cold water enters the unit. The gas burner heats the water, providing a continuous supply of hot water.

• NaviTech stainless steel heat exchanger and burner.
• Exterior unit for outdoor installations.
• Cascading capable.

Product Highlights

NaviTech stainless steel heat exchanger and burner, outdoor installation, low NOx emissions, built for residential and commercial use.

Product Information

Standard Information

• Brand: Navien
• MPN: PNGW7000028E001

Technical Specifications

• UPC: 884954915821
• Depth: 9.3 inches
• Height: 23 inches
• Weight: 60 lb.
• Fuel Type: Natural Gas
• Application: Residential, Commercial
• Ignition Type: Electronic
• Mounting Type: Wall-Hung
• Recovery Rate: 9.5 GPM at 35 deg F
• Catalog Number: PNGW7000028E001
• Gas Inlet Size: 3/4 inches
• Voltage Rating: 120 V AC
• Pressure Rating: 15 to 150 PSI
• Frequency Rating: 60 Hz
• Heating Capacity: 199900 BTU
• Maximum Flow Rate: 11.1 GPM
• Specifications Met: AHRI Certified, ANSI Z21.10.3-CSA 4.3 Certified, CSA, NSF 5/Low Lead Certified, SCAQMD Approved
• Cold Water Inlet Size: 3/4 inches
• Hot Water Outlet Size: 3/4 inches
• Uniform Energy Factor: 0.81
• Height To Gas Connection: 4.8 inches
• Height To Vent Connection: 9.3 inches
• Maximum Temperature Rating: +140 deg F
• Minimum Temperature Rating: +98 deg F
• Residential Warranty Labor: 1 year
• Residential Warranty Parts: 5 years
• Residential Warranty Heat Exchanger: 15 years
• Height To Hot Water Connection: 4.2 inches
• Height To Cold Water Connection: 1.8 inches
