Navien NAA-17V60 Variable-capacity Air Conditioner 4-5 Ton NAVHNAA-17V60

Product Description

Navien NAA-17V60 is a variable-capacity outdoor air conditioner that uses an inverter-driven compressor and variable-speed capacity matching to deliver 4 - 5 ton cooling with low-GWP R-454B refrigerant. The unit operates on 230 V single-phase power, can achieve up to 18 SEER2 with AHRI-matched systems, and includes a refrigerant charge of 155.2 oz, max line length 100 ft, max vertical lift 50 ft, and an operating range of 5 - 124 F.

• Inverter-driven rotary compressor with variable-speed capacity matching; compressor frequency 18 - 78 Hz, RLA 20 A, LRA 58.1 A.
• 4 - 5 ton cooling capacity using R-454B low-GWP refrigerant; EER2 up to 11.5 and SEER2 up to 18 with AHRI-matched systems; refrigerant charge 155.2 oz.
• Outdoor unit with four independent louvered coil access panels, Gold Coat outdoor coil, dimensions 29.1 in W x 32.9 in H x 29.9 in D, net weight 185 lbs; electrical: 230 V / 1 phase / 60 Hz; min circuit ampacity 30 A; max OCP 45 A.

Product Highlights

Variable-capacity outdoor air conditioner, 4 - 5 ton, inverter-driven compressor, R-454B refrigerant, up to 18 SEER2, 230 V single-phase electrical.

Product Information

Standard Information

• Brand: NAVIEN
• Manufacturer Part Number: NAA-17V60

Technical Specifications

• Brand: Navien
• Manufacturer Part Number: NAA-17V60
• Model: NAA17V60
• Series: NAA Series (NAA-17 Series)
• Product Type: Variable-capacity outdoor air conditioner
• Cooling Capacity: 4 - 5 ton
• Maximum SEER2: Up to 18 SEER2 (with AHRI-matched systems)
• EER2: Up to 11.5
• Refrigerant Type: R-454B (low GWP)
• Refrigerant Charge: 155.2 oz (4,399.8 g)
• Input Voltage: 230 V / 1 phase / 60 Hz
• Voltage Range (min - max): 187 - 253 V
• Minimum Circuit Ampacity: 30 A
• Maximum Overcurrent Protection: 45 A
• Compressor Type: Inverter driven rotary
• Compressor Frequency Range: 18 - 78 Hz
• Compressor Rated Current (RLA): 20 A
• Compressor Locked Rotor Amps (LRA): 58.1 A
• Fan Motor Power Supply: DC
• Fan Motor RLA: 1.8 A
• Fan Motor Maximum Speed: 1,100 RPM
• Fan Motor HP: 1/4
• Fan Motor FLA: 1.8 A
• Coil Rows: 2
• Tube Outside Diameter: 9/32 in
• Tube Pitch x Row Pitch: 0.83 in x 0.53 in (21.1 mm x 13.5 mm)
• Liquid Line OD: 3/8 in (9.5 mm)
• Vapor Line OD: 7/8 in (22.2 mm)
• Max Line Length: 100 ft
• Max Vertical Lift: 50 ft
• Operating Temperature (Cooling mode): 5 - 124 F
• Dimensions: 29.1 in W x 32.9 in H x 29.9 in D (74.0 cm W x 83.5 cm H x 75.9 cm D)
• Net Weight: 185 lbs (83.9 kg)
• Gross Weight: 214 lbs (97.1 kg)
• Service Access: Four independent louvered coil access panels

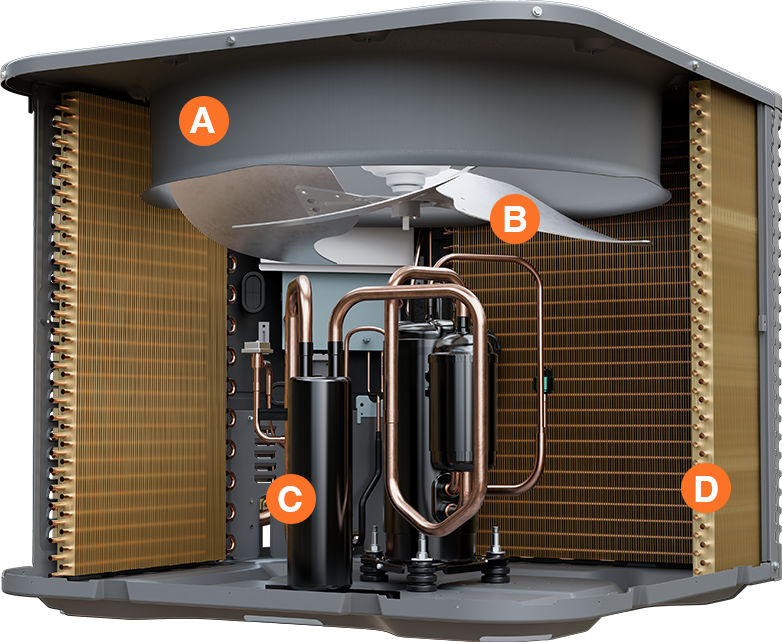

• Additional Features: Gold Coat outdoor coil; large suction accumulator; swept wing fan blades; deep drawn venturi
• Certifications: AHRI, cETLus
• Replacement MPN: NAVHNAA-17V60
• UPC: 884654929272
• Manufacturer: NAVIEN INC
