Navien GAIE170M024BWMD 17-1/2 in Multi-Position 2 Ton Cased Indoor Coil (17.5 in Width) NAM24B2TA1

Product Description

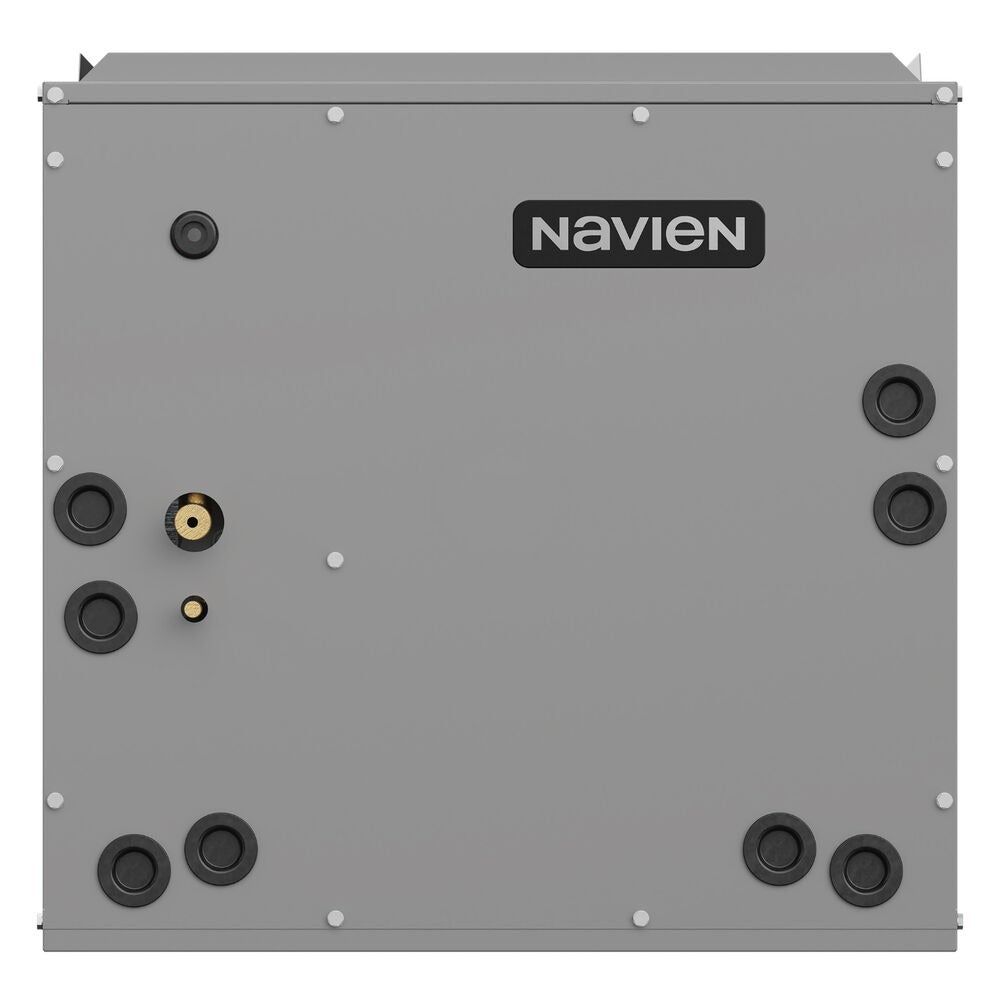

The Navien GAIE170M024BWMD is a cased indoor evaporator coil (NAM24B2TA1) with a nominal 2 ton (24,000 Btu/hr) capacity designed for multi-position installation. The 3-row coil features 16 fins per inch and a TXV metering device, with 1200 CFM nominal airflow. It is configured for R-454B refrigerant and includes 3/8 in liquid and 3/4 in suction line connections. Dimensions: 17.5 in W x 20.1 in H x 21.1 in D.

• Nominal capacity: 2 ton (24,000 Btu/hr) with 1200 CFM design airflow
• 3-row evaporator coil, 16 fins per inch, TXV metering device
• Multi-position cased indoor design; liquid line 3/8 in, suction line 3/4 in

Product Highlights

Cased multi-position evaporator coil for 2-ton HVAC systems, configured for R-454B with 3-row, 16 FPI construction and TXV metering.

Product Information

Standard Information

• Brand: NAVIEN
• Manufacturer Part Number: GAIE170M024BWMD
• Country of Origin: Domestic

Technical Specifications

• Brand: Navien
• Manufacturer Part Number: GAIE170M024BWMD
• Model: NAM24B2TA1
• Nominal Capacity: 2 ton
• Cooling Capacity: 24,000 Btu/hr
• Type: Multi-position evaporator coil
• Enclosure Type: Cased
• Flow Rate: 1200 cfm
• Refrigerant Type: R-454B
• Number of Rows: 3
• Fins per Inch: 16
• Metering Device: TXV
• Liquid Line Size: 3/8 in
• Suction Line Size: 3/4 in
• Dimensions: 17.5 in W x 20.1 in H x 21.1 in D
• Item Number: NVNNAM24B2TA1
• UPC: 884954570709
• Series: NAM
• Domestic / Import: Domestic
