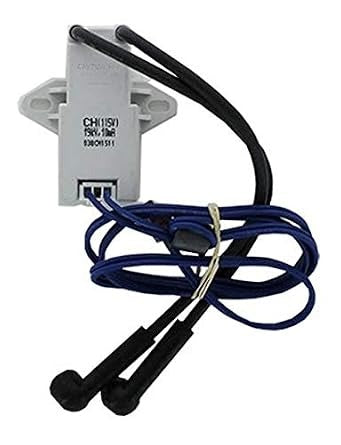

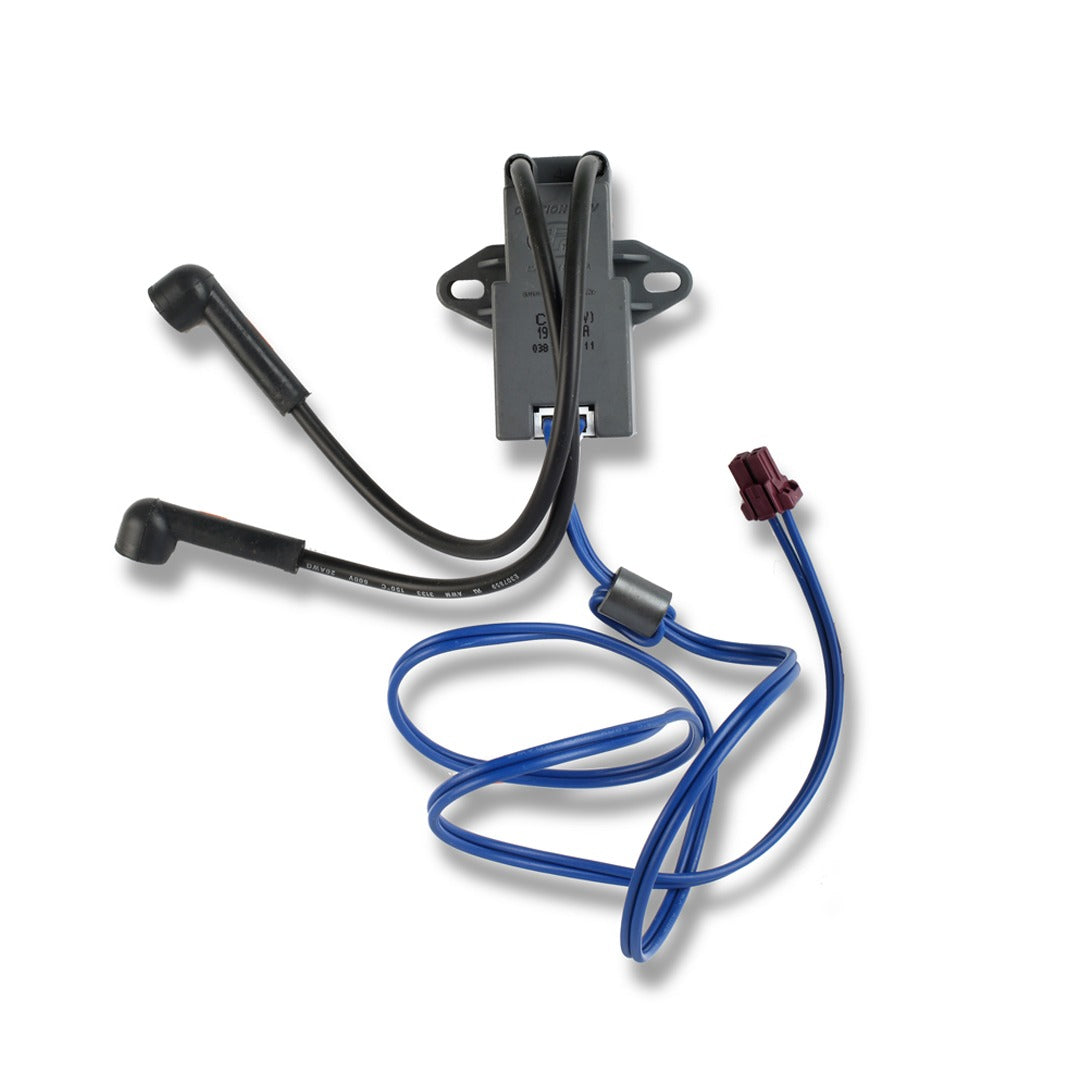

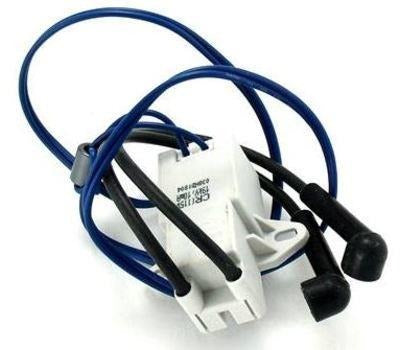

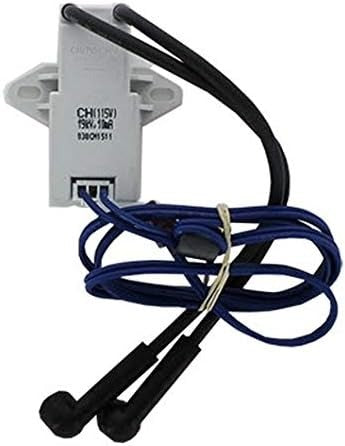

Navien BH1201045A Ignition Transformer 115V (Single) 30002475A

Product Description

Navien BH1201045A is an ignition transformer used in Navien tankless water heaters and boilers, identified also by catalog number 30002475A. The unit provides the high-voltage ignition required for gas-fired burners in compatible CR, CC, NR, NP, and CH series models. It is a corded electric, wall-mountable assembly, often supplied with attached wiring. Typical dimensions are about 3.15 x 3.94 x 3.94 inches and weight is 0.35 lbs.

• Compatible with Navien CR, CC, NR, NP, and CH series boilers and tankless units
• Corded electric ignition transformer, wall-mountable; input voltage listed as 115V in listings
• Compact dimensions 3.15 x 3.94 x 3.94 inches; replaces older Navien reference numbers

Product Highlights

115V corded ignition transformer for Navien CR/CC/NR/NP/CH series; wall-mount replacement (catalog 30002475A) that includes wiring and replaces older BH1201041 series references.

Product Information

Standard Information

• Brand: NAVIEN
• Manufacturer Part Number: BH1201045A

Technical Specifications

• Brand: Navien
• Manufacturer Part Number: BH1201045A
• Catalog Number / Replacement Part: 30002475A
• Item Type: Ignition transformer
• Compatible Series: CR, CC, NR, NP, CH
• Input Voltage: 115V
• Power Source: Corded Electric
• Mounting Type: Wall mount
• Mounting Location: Wall
• Includes Wire: Yes
• Dimensions (H x W x D): 3.15 x 3.94 x 3.94 in
• Weight: 0.35 lbs
• Replaces / Old Part Numbers: BH1201041A, BH1201041B, BH1201041C, BH1201041D, 30002471A
• GTIN: 0884954310053
• ASIN: B08DDJXY9K
• UL Listed: False
• UL Recognized: False
