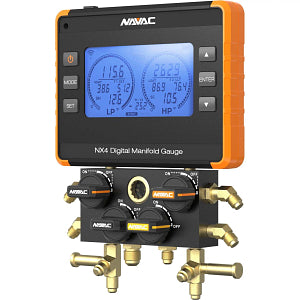

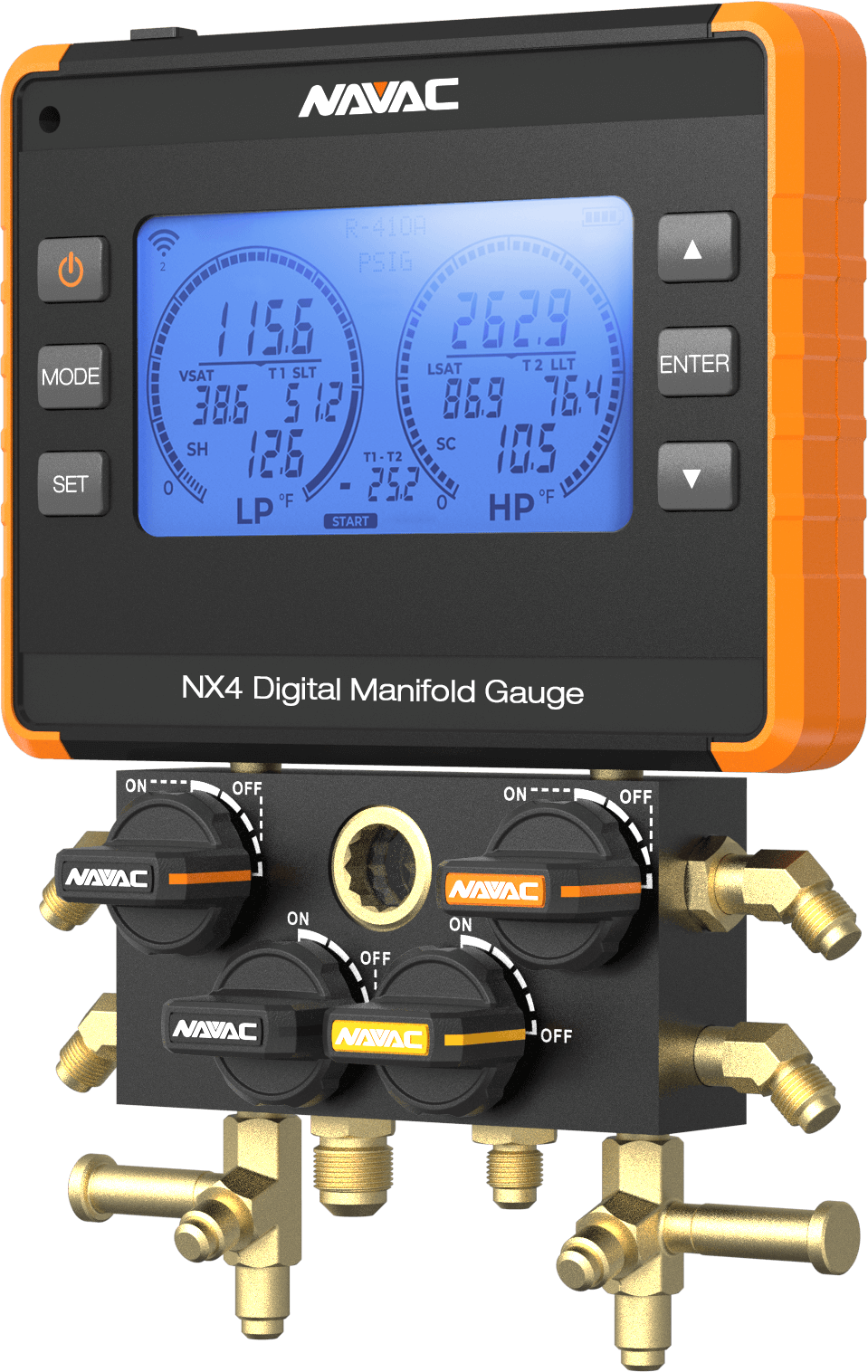

Navac NX4V Nexus Digital Manifold Gauge 1087 psi

Product Description

The NAVAC NX4V Nexus Digital Manifold Gauge revolutionizes HVAC diagnostics with advanced wireless features. Equipped with 4 valves, including a 3/8" vacuum port for fast evacuations, it enables a single setup for multi-task operations. Seamlessly connect to Bluetooth-enabled temperature probes and micron gauges to access comprehensive remote insights directly on the Nexus screen.

• Advanced wireless features for HVAC diagnostics
• Equipped with 4 valves, including a 3/8" vacuum port for fast evacuations
• Enables a single setup for multi-task operations

Product Highlights

Offers four operational modes: Manifold, Leak Test, Evacuation, and Decay Test. The robust aluminum body and 1/4-turn ball valve ensure lasting durability.

Product Information

Standard Information

• Brand: NAVAC
• Manufacturer Part Number: NX4V

Technical Specifications

• Model: NX4, NX4V
• Refrigerant Type: R-11, R-12, R-13, R-22, R-23, R-32, R-113, R-114, R-115, R-116, R-123, R-124, R-125, R134a, R-236fa, R-245fa, R-290, R-401A, R-401B, R-402A, R-402B, R-403B, R-404A, R-406A, R-407A, R-407B, R-407C, R-408A, R-409A, R-410A,R-413A, R-414A, R-414B, R-416A, R-417A, R-417C, R-420A, R-421A, R-421B, R-422A, R-422B, R-422C, R-422D, R-424A, R-427A, R-428A, R-434A, R-437A, R-438A, R-448A, R-449A, R-450A, R-452A, R-452B, R-453A, R-454B, R-458A, R-500, R-501, R-502, R-503, R-507A, R-508B,R-513A, R-600, R-600a, R-601, R-601a, R-744*, R-1233zd, R-1234yf, R-1234ze
• Maximum pressure: 1087psi (7500kPa)
• Ports: (1)3/8" sae vacuum: (3) 1/4" sae for suction line liquid line, and refrigerant recovery/charging
• Maximum Manifold Pressure: 1087psi (7500kPa)
• Power Supply: Rechargeable 3000mAh lithium battery
• Accessory NX4: Bluetooth Temperature Clamps NST1 (Low Side) & NST2 (High Side), Charging Cable, Carry Case
• Accessory NX4V: NMV1S Micron Gauge in addition to the NX4 Kit
• Brand: NAVAC
• Accuracy: 0.4
• Pressure Rating: 1087 psi
• Type: Digital Manifold Gauge
