Navac NX4G Nexus 2 Digital Manifold Gauge, 4-Valve

Product Description

The NAVAC NX4G Nexus 2 is the ultimate manifold gauge every HVAC technician needs. Added versatility of a 4-valve configuration to the NEXUS 2 platform, it enables a true plug-and-play setup. Simply hook up your hoses once and handle it all: diagnostics, charging, and evacuation seamlessly in one device. The HD color touchscreen and enhanced interface make key functions more intuitive, visual, and precise.

• Added versatility of a 4-valve configuration
• Supports 100 refrigerants

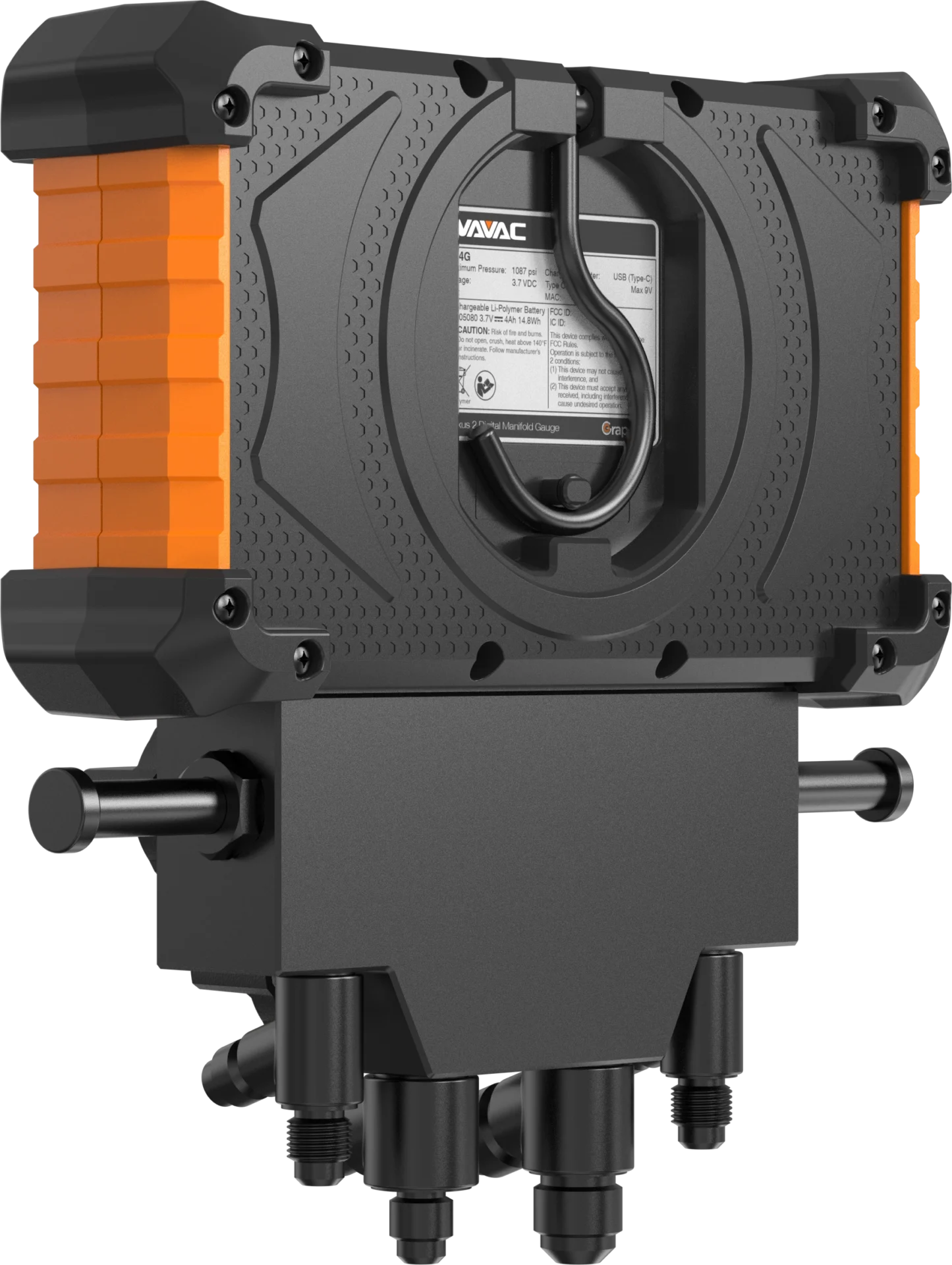

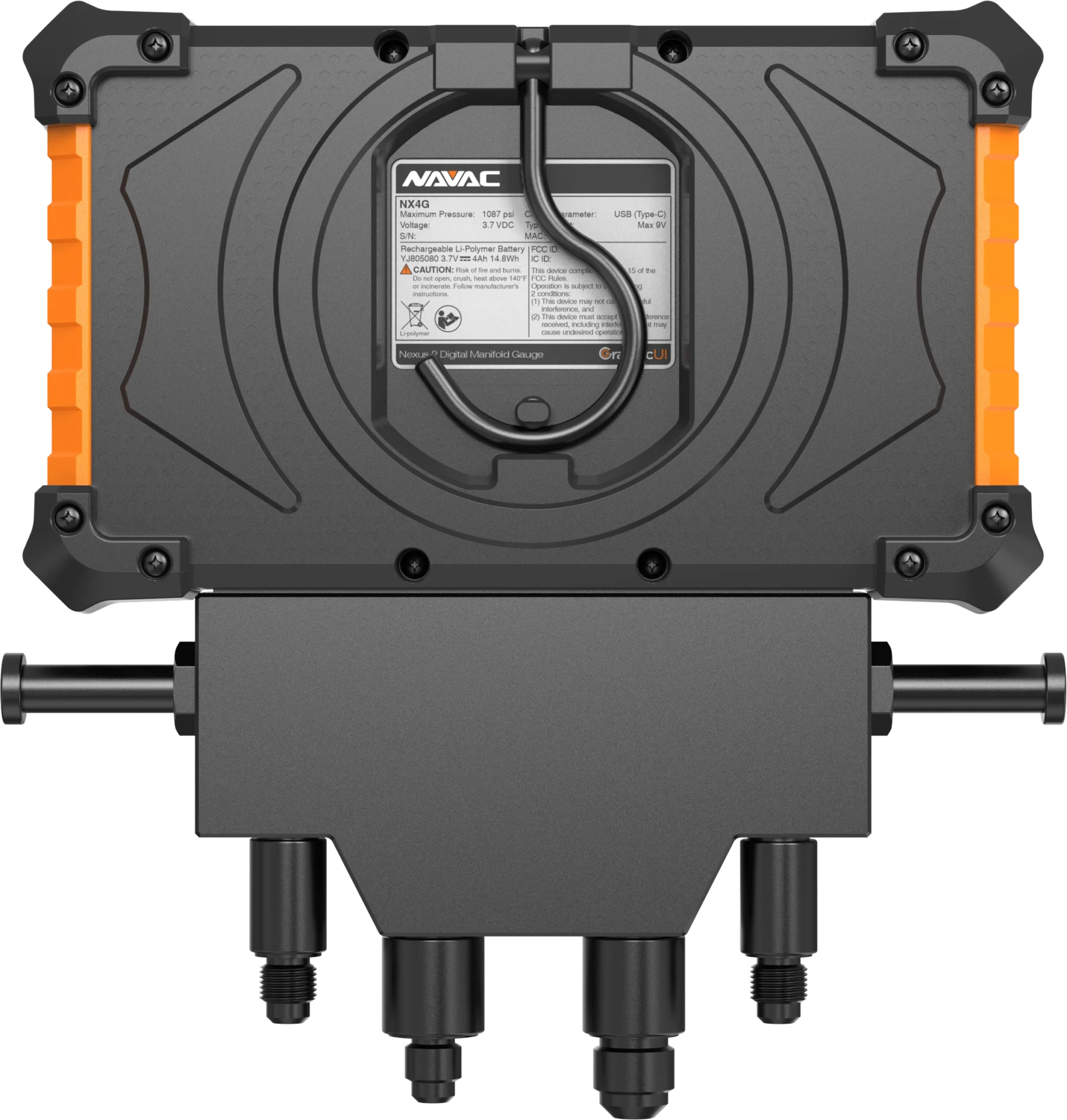

• Heavy-duty protective shell

Product Highlights

This digital manifold gauge features smart wireless connectivity, rechargeable battery power, and seamless integration with MeasureQuick App. It has quarter-turn ball valves and swivel hose ports.

Product Information

Standard Information

• Brand: NAVAC
• Manufacturer Part Number: NX4G

Technical Specifications

• Refrigerant Type: R11, R113, R114, R115, R116, R12, R1224yd(Z), R123, R1233zd, R1233zd(E), R1234yf, R1234ze, R1234ze(E), R1234ze(Z), R124, R1243zf, R125, R13, R134a, R1409A, R22, R23, R236fa, R245fa, R290, R32, R401A, R401B, R401C, R402A, R402B, R403A, R403B, R404A, R405A, R406A, R407A, R407B, R407C, R407D, R408A, R41, R410A, R410B, R411A, R411B, R12A, R413A, R414A, R414B, R415A, R415B, R416A, R417A, R417C, R420A, R421A, R421B, R422A, R422B, R422C, R422D, R424A, R427A, R428A, R434A, R437A, R438A, R447A, R447B, R448A, R449A, R450A, R451A, R451B, R452A, R452B, R452C, R453A, R454A, R454B, R454C, R455A, R456A, R458A, R459A, R459B, R460A, R460B, R500, R501, R502, R503, R507A, R508B, R513A, R600, R600a, R601, R601A

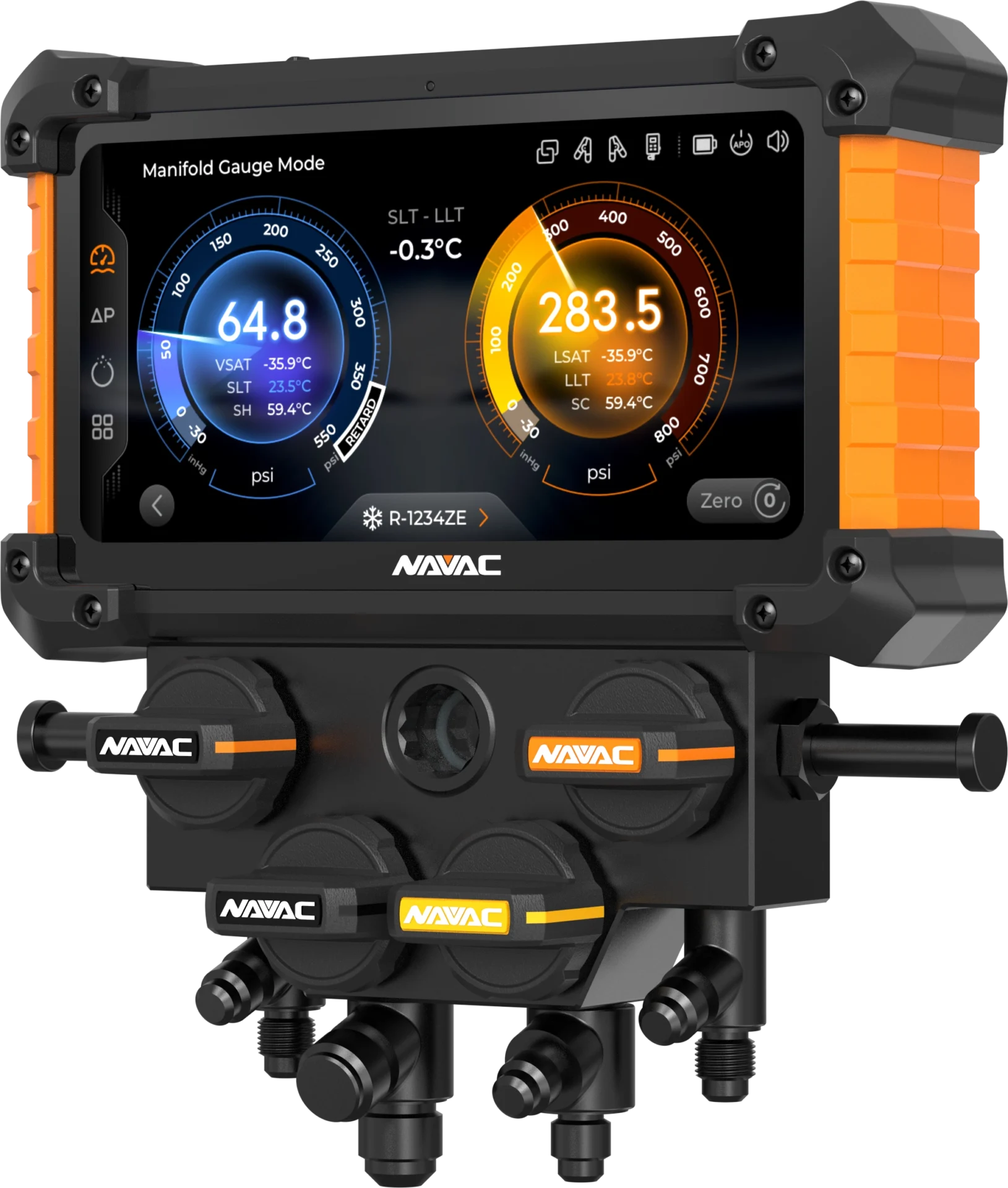

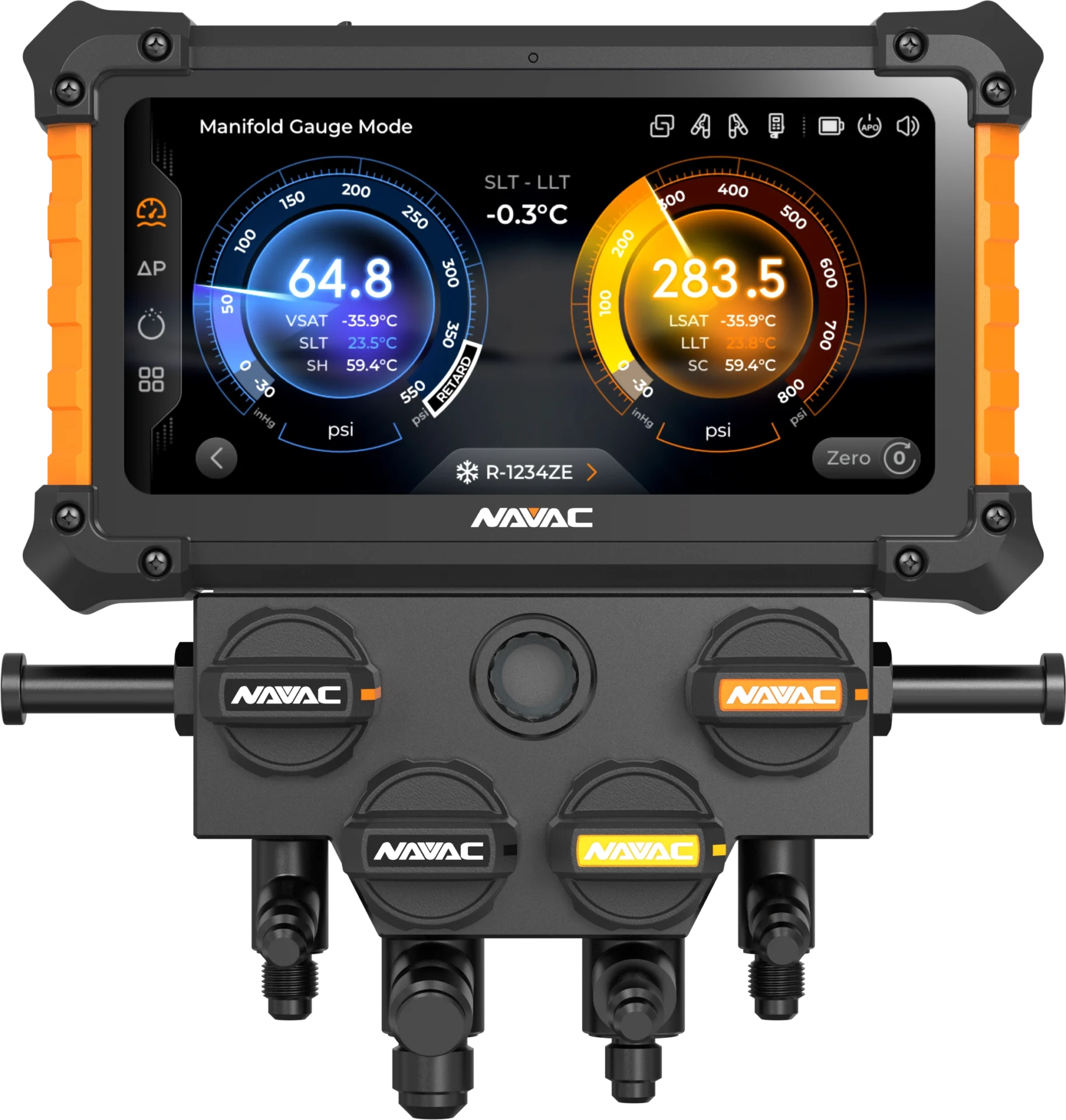

• Screen Configuration: IPS touch screen, 1024 x 512 pixel
• Ports: (1) 1/4″ sae for evacuation (3) 1/4″ sae for suction line, liquid line, and rẻigerant recovery.charging
• Maximum Manifold Pressure: 1087 psi (7500 kPa)
• Bluetooth Range: 260 ft (80m) line of sight
• Power Supply: Rechargeable 3000mAh lithium battery
• Language: English, Spanish, French
• Connectivity: Bluetooth
• Refrigerant Support: 100 refrigerants
• Battery Life: 8~100 hours
• Charging Port: Type-C
• Max Manifold Pressure: 1087 psi (7500 kPa)
