Product Description

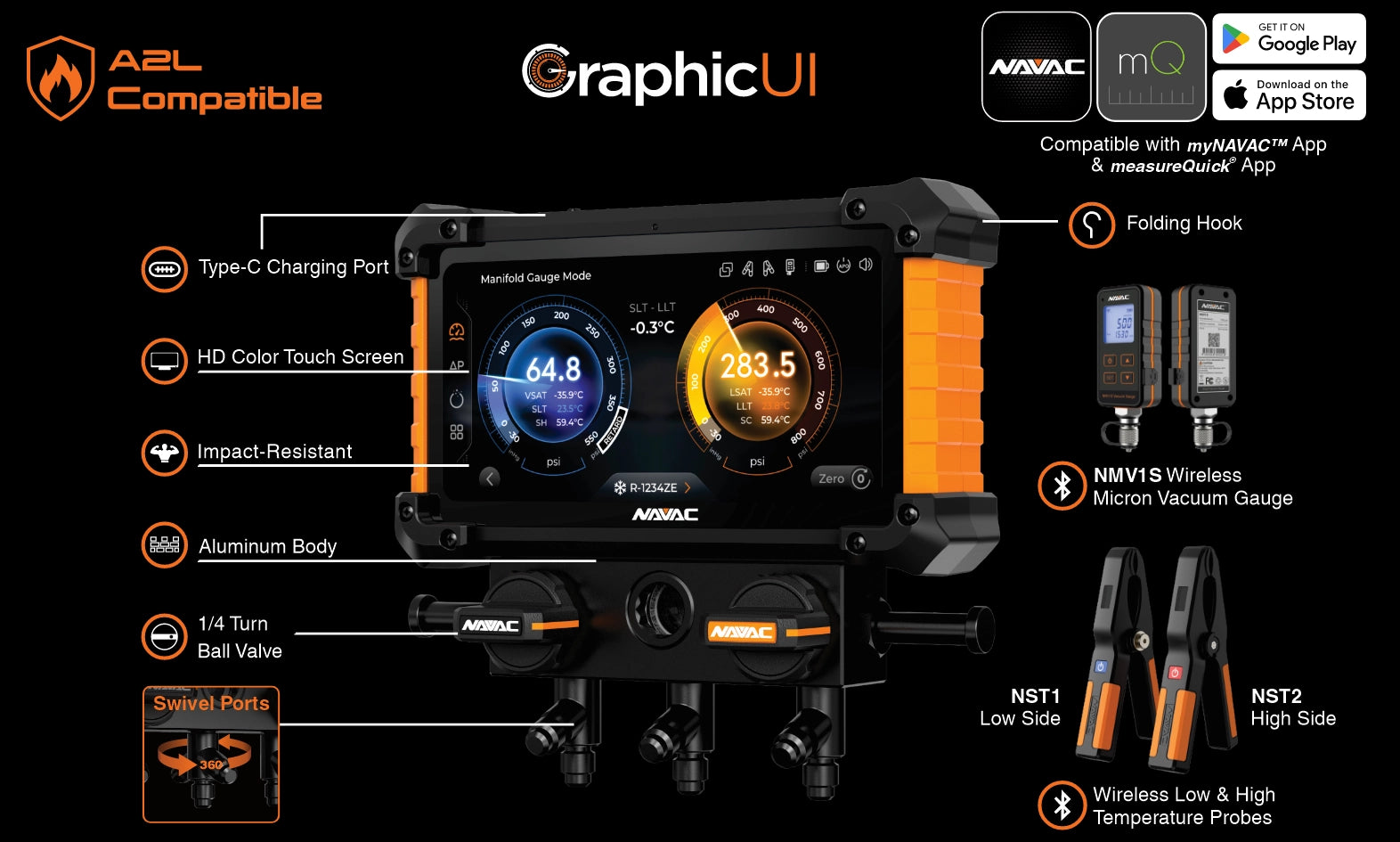

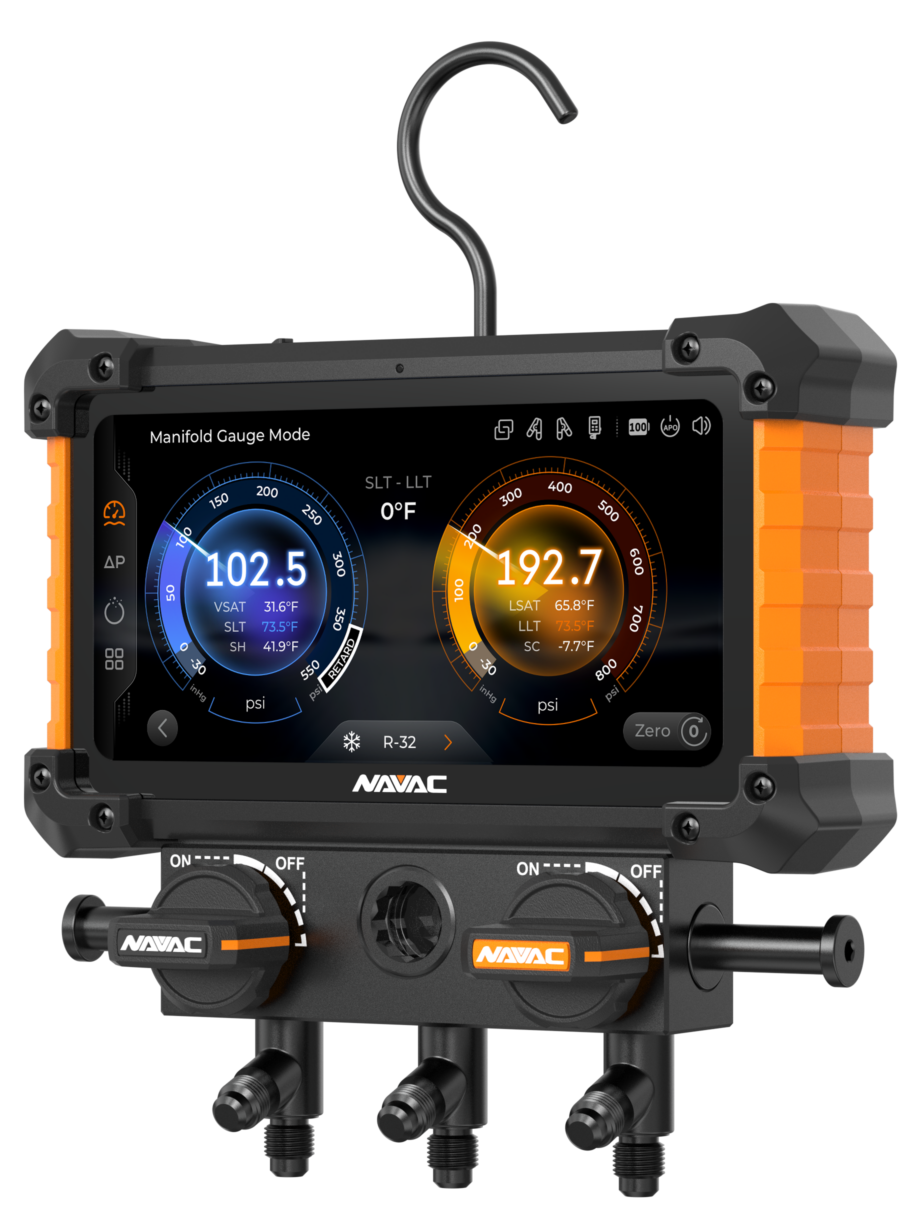

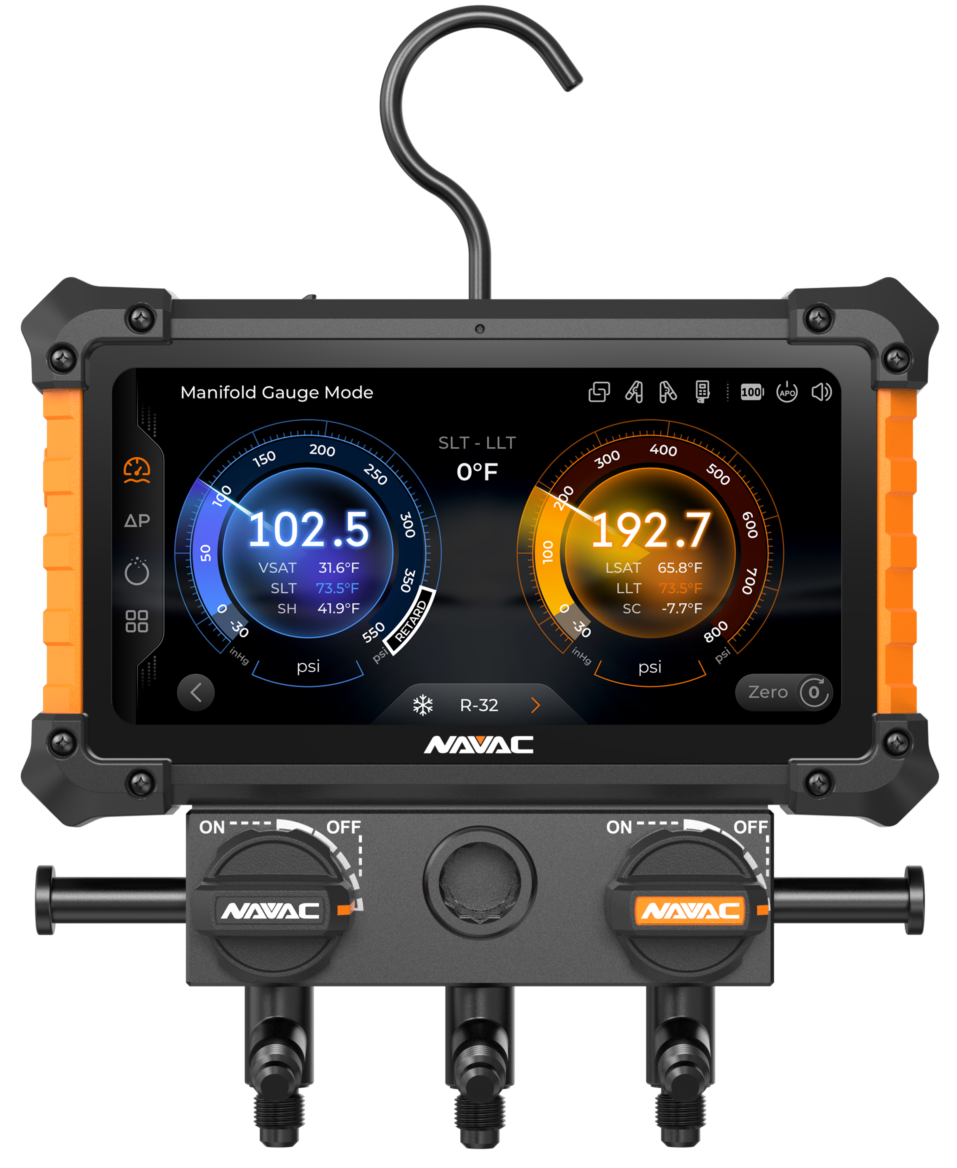

The NAVAC NX1G Nexus™ 2 Digital Manifold Gauge is designed to elevate workflow, offering diagnostics, charging, and evacuation in one device. It supports 100 refrigerants with updates via the myNAVAC App. The gauge features a heavy-duty protective shell, a HD color touchscreen, and quarter-turn ball valves for faster operation.
- True plug-and-play setup
- Supports 100 refrigerants
- Easy updates via the myNAVAC App
Product Highlights
This digital manifold gauge has a protective shell, smart wireless connectivity, and integration with the MeasureQuick App.
Product Information
Standard Information
-
Brand: NAVAC
-
Manufacturer Part Number: NX1G
Technical Specifications
-
Model: NX1G (Vacuum Gauge Not Included)
NX1GV (Vacuum Gauge Included)
-
Refrigerant Type: R11, R113, R114, R115, R116, R12, R1224yd(Z), R123, R1233zd, R1233zd(E), R1234yf, R1234ze, R1234ze(E), R1234ze(Z), R124, R1243zf, R125, R13, R134a, R1409A, R22, R23, R236fa, R245fa, R290, R32, R401A, R401B, R401C, R402A, R402B, R403A, R403B, R404A, R405A, R406A, R407A, R407B, R407C, R407D, R408A, R41, R410A, R410B, R411A, R411B, R12A, R413A, R414A, R414B, R415A, R415B, R416A, R417A, R417C, R420A, R421A, R421B, R422A, R422B, R422C, R422D, R424A, R427A, R428A, R434A, R437A, R438A, R447A, R447B, R448A, R449A, R450A, R451A, R451B, R452A, R452B, R452C, R453A, R454A, R454B, R454C, R455A, R456A, R458A, R459A, R459B, R460A, R460B, R500, R501, R502, R503, R507A, R508B, R513A, R600, R600a, R601, R601A
-
Screen Configuration: IPS touch screen, 1024 × 512 pixel
-
Ports: 1/4" SAE
-
Maximum Manifold Pressure: 1087 psi (7500 kPa)
-
Bluetooth Range: 260 ft (80 m) line of sight
-
Power Supply: Rechargeable 3000mAh lithium battery, 8–100 hours run time, Type-C charging port
-
Language: English, Spanish, French
-

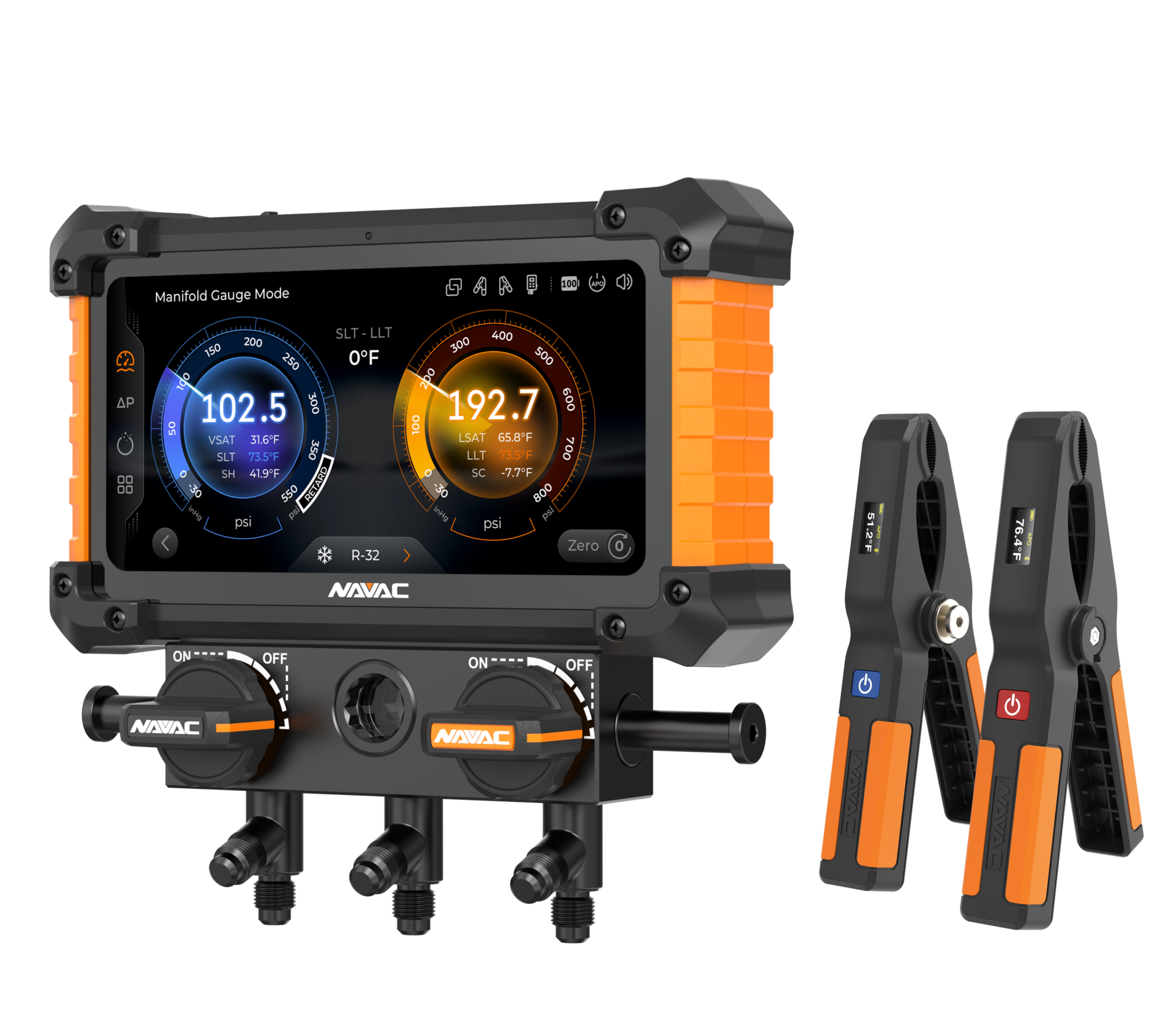

Accessory: Bluetooth Temperature Clamps NST1 (Low Side) & NST2 (High Side)
, Charging Cable, Carry Case

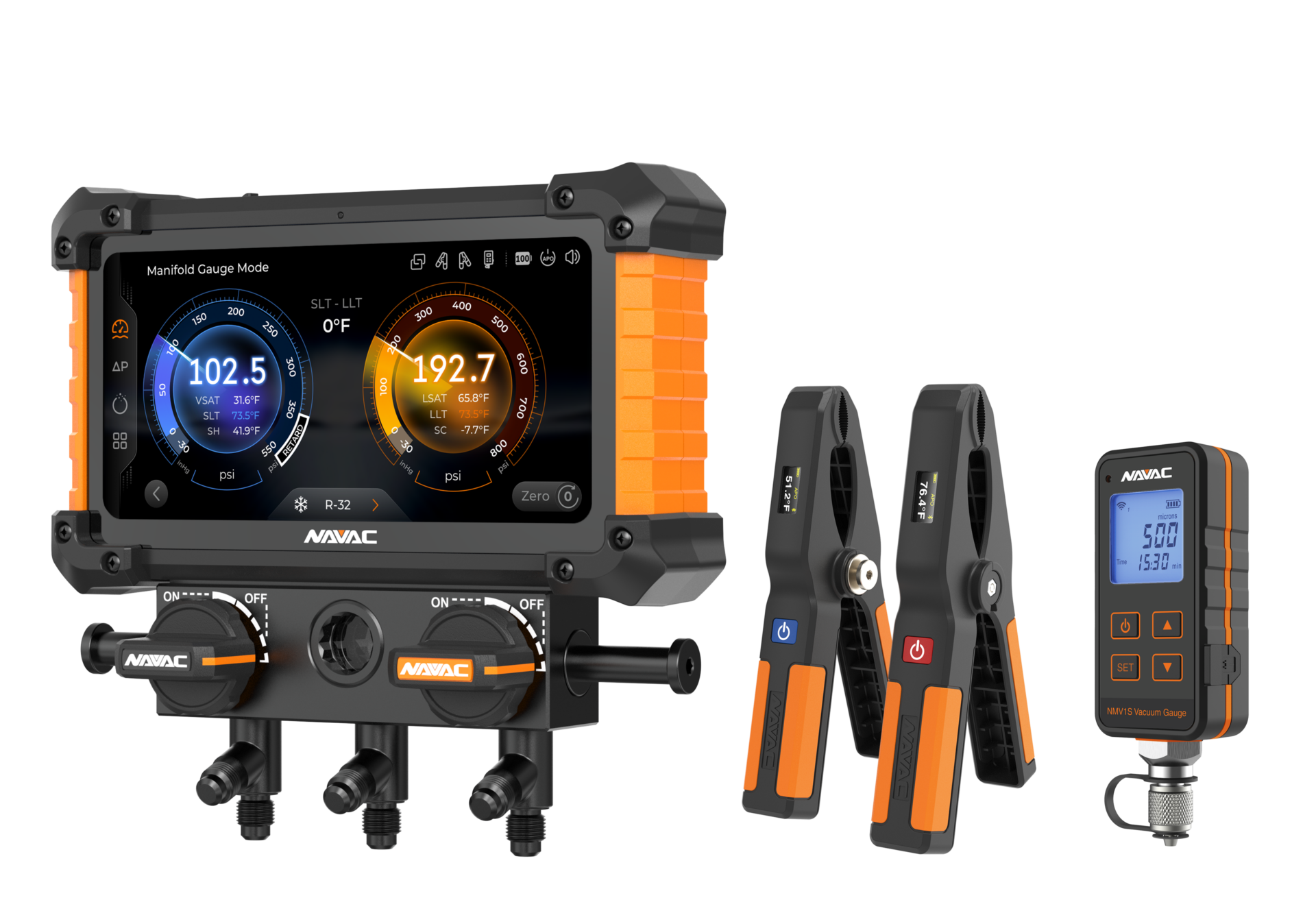

NMV1S Micron Gauge
in addition to the NX1G Kit
-
Number of Valves: 2
