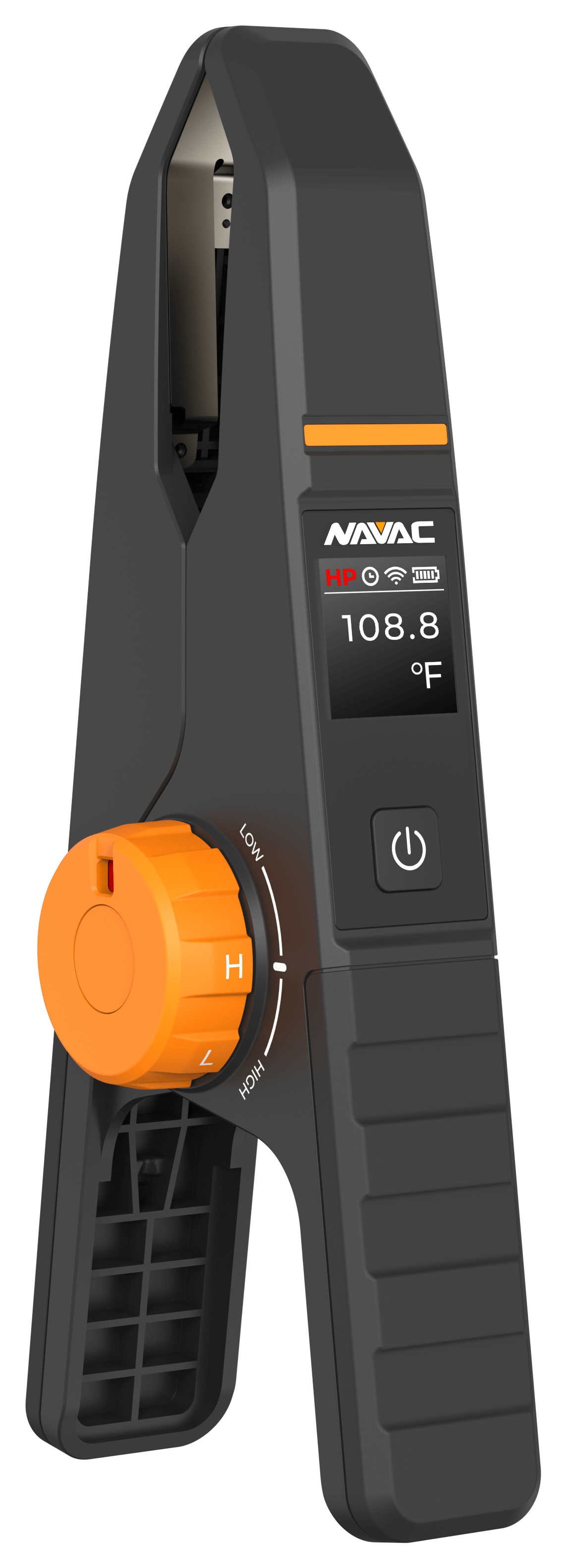

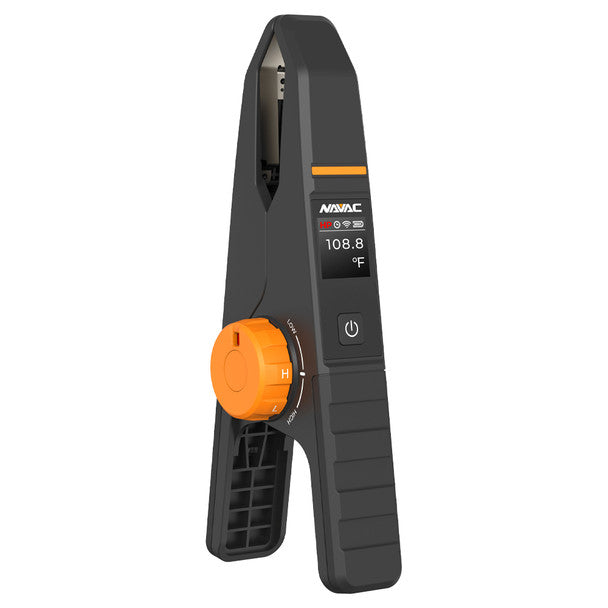

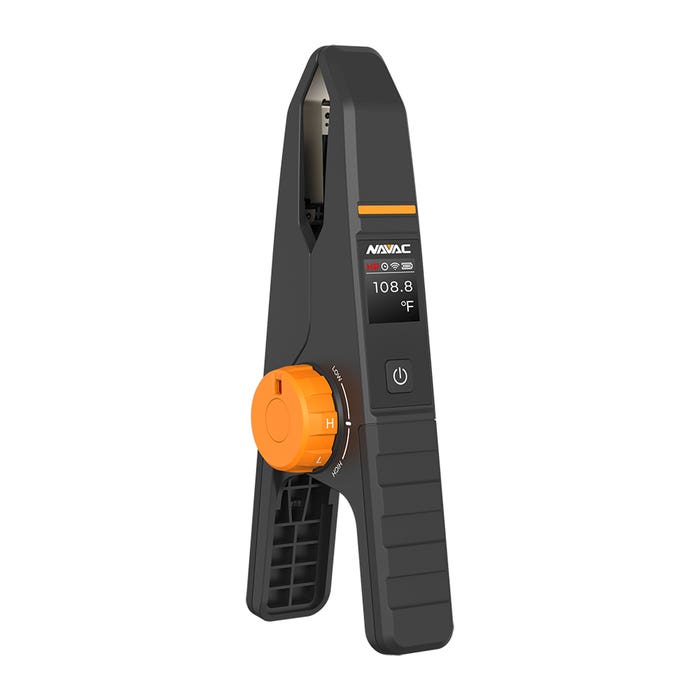

NAVAC NSTL Large Bluetooth Temperature Clamp

Product Description

The NAVAC NSTL Large Bluetooth Temperature Clamp is suitable for temperature measurement in various applications, including residential, commercial, and refrigeration systems. This clamp features an adjustable opening that fits multiple pipe sizes and connects via Bluetooth to the myNAVAC app or operates as an independent digital thermometer. It includes a user-friendly digital display and utilizes a thermoelectric sensor. The device is rated IP54, making it resistant to dust and water. It operates on AAA batteries.

• Measures temperature accurately from -40°F to 257°F
• Bluetooth feature enables connection with the myNAVAC app
• Functions as a digital thermometer when needed

Product Highlights

The NAVAC NSTL offers versatile temperature measurement and connectivity, making it an ideal tool for HVAC professionals.

Product Information

Standard Information

• Brand: NAVAC
• MPN: NSTL

Technical Specifications

• Temperature Measurement Range: -40°F to 257°F (-40°C to 125°C)
• Accuracy: ±2.7°F (±1.5°C)
• Resolution: 0.1°F
• Sensor Type: Thermocouple (Nickel Chromium)

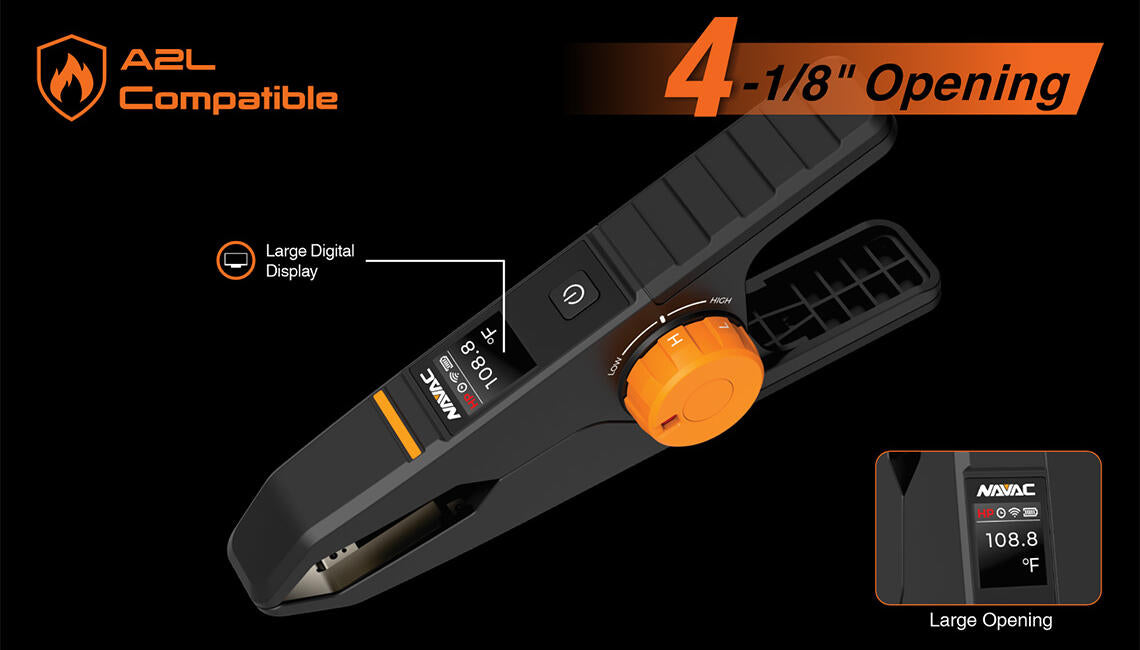

• Pipe Size Compatibility: Three-fourths inch to four-and-one-eighth inch OD
• Bluetooth Range: 164 feet (50m)
• Battery Type: Two AAA batteries
• Battery Life: Greater than 150 hours (screen off), greater than 12 hours (screen on)
• Water Resistance: IP54
• Weight: 7.8 ounces (220g)
• Wireless Frequency: 2.4 GHz
• Certification: CE, FCC, RoHS
• Warranty: One Year
• Refresh Rate: One measurement per second
• Stabilization Time: Within three seconds for a temperature difference of 41°F error, approximately seven to eight seconds to stabilize within a 34°F temperature difference
• Minimum Device Requirement: BLE4.0 or above, Android 7.0.0 or above, Apple iOS 12.0 or above
• Accessory: Carry bag
