Navac NSM1 Bluetooth Manometer with digital display

Product Description

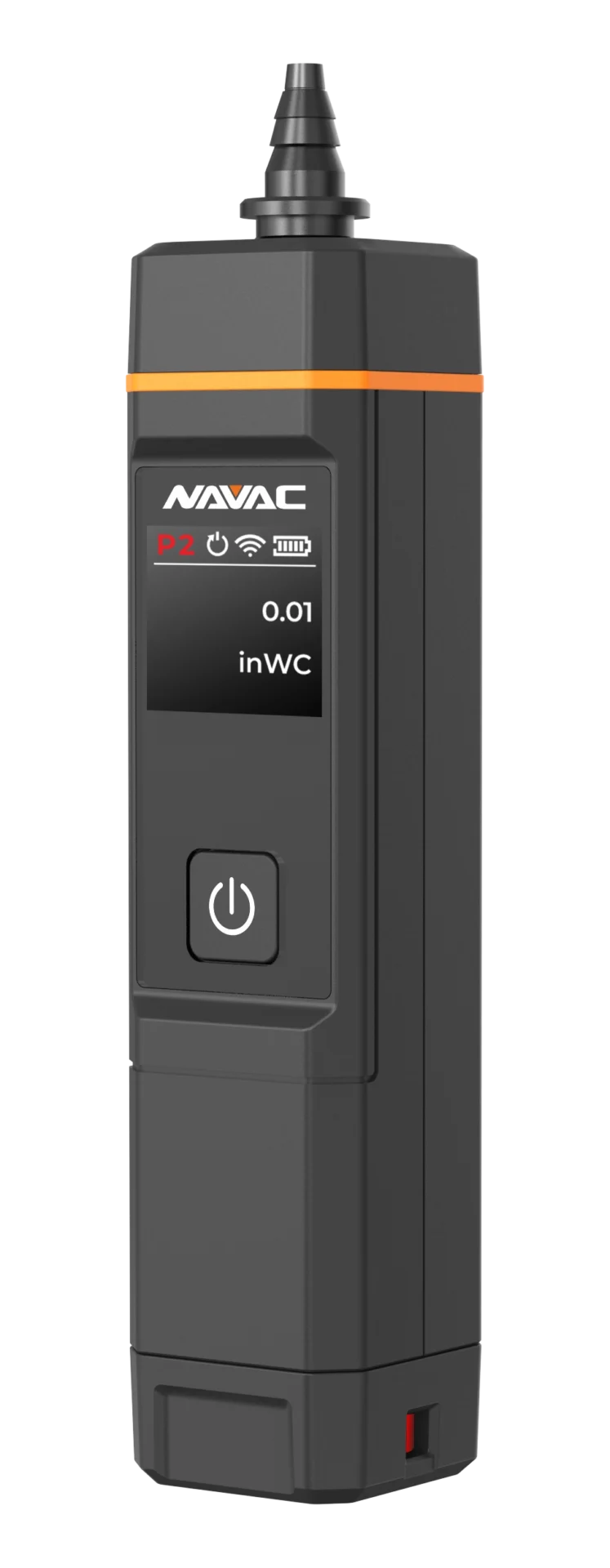

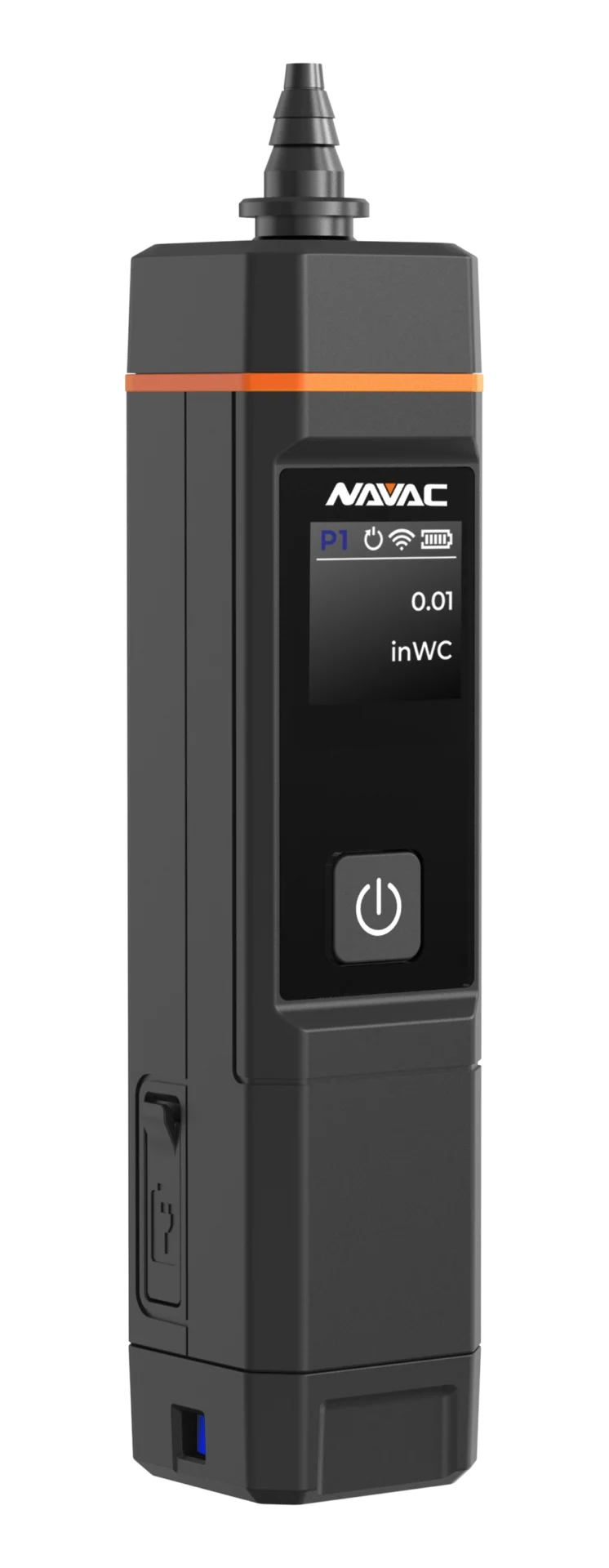

The NAVAC NSM1 Bluetooth Manometer with Digital Display delivers precise, reliable air pressure measurement in a compact, easy-to-use design. Its large digital screen provides clear, accurate static pressure readings, whether used independently or wirelessly connected to the myNAVAC App via Bluetooth. Engineered for speed and accuracy, the NSM1 features a high-accuracy sensor with fast response and simple one-button operation.

• Precise, reliable air pressure measurement
• Compact, easy-to-use design
• Large digital screen for clear, accurate static pressure readings

Product Highlights

The NSM1 Bluetooth Manometer is a dependable digital tool designed to complete NAVAC’s probe offering while streamlining diagnostics in the field. It features a built-in magnet for hands-free use, a tip direction indicator, and a universal turn knob for different configurations.

Product Information

Standard Information

• Brand: NAVAC
• Manufacturer Part Number: NSM1

Technical Specifications

• Measurement Range: -8 ~ 64 inWC
• Maximum Overload Pressure: 400 inWC (100 kPa)
• Accuracy: ±0.02 inWC on 0.00 ~ ±2.00 inWC ±1.5% FS on ±2.00 ~ ±60.00 inWC
• Resolution: 0.01 inWC, 0.1 mmWC, 0.01 mbar, 0.001 psig, 0.1 Pa, 0.0001 kPa, 0.001 Torr
• Operating Environment: -4 ~ 122°F (-20 ~ 50°C) Relative Humidity < 75%
• Max. Bluetooth Range: 164 ft (50 m) line of sight

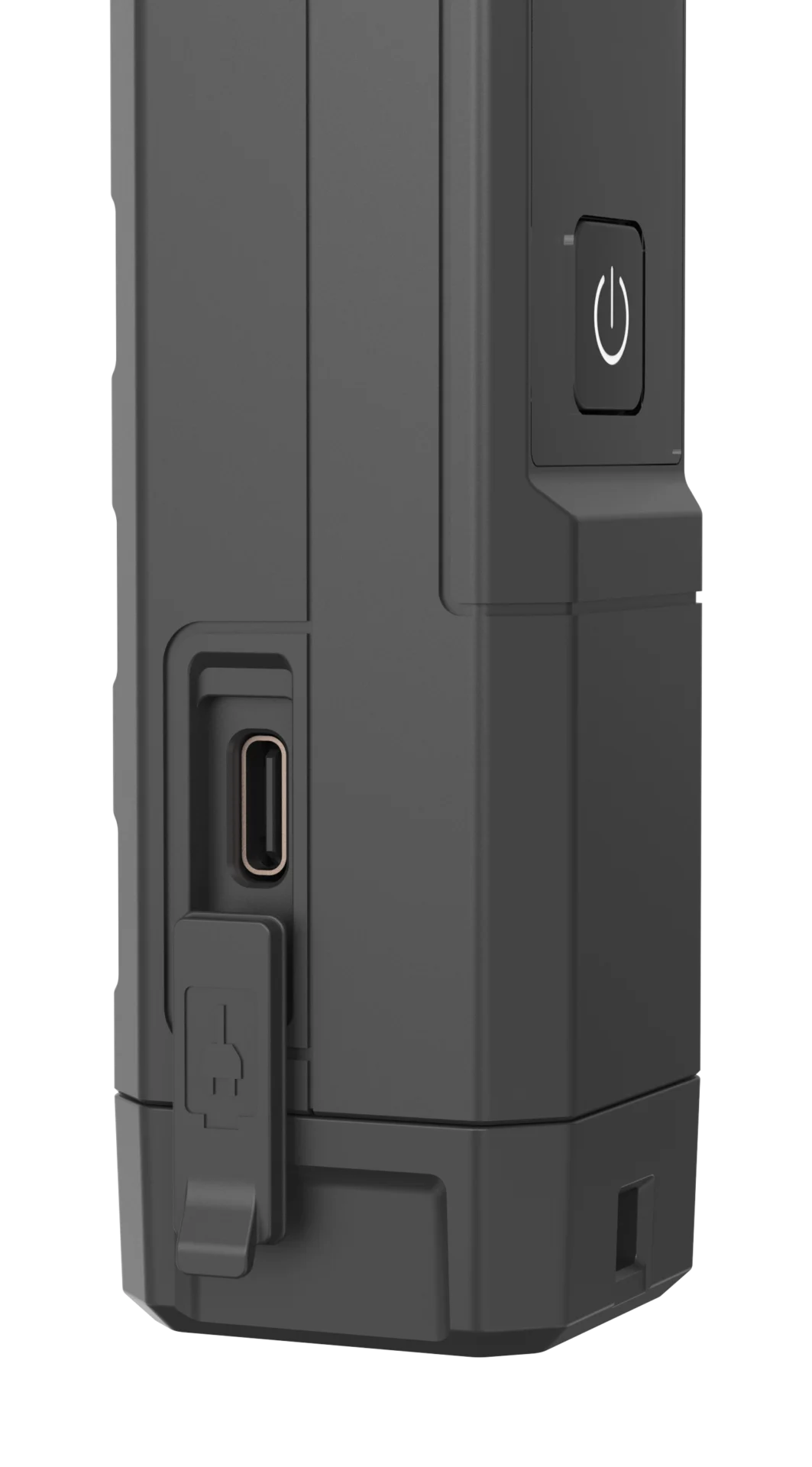

• Power Supply: Rechargeable 1200mAh lithium battery, Type-C charging port
• Rechargeable Battery Operating Time: 150 hours
• Wireless Frequency: 2.4 GHz
• Auto Power Off (APO): 2 hours (can be disabled)
• Minimum Device Requirement: BLE 4.0 or above, Android 7.0.0 or above, Apple iOS 12.0 or above
• Unit Weight: 7.6 oz
• Accessory: Soft tube with brass adapter, static pressure probe with tube, gas detection adapter
• Bluetooth Range: 164 ft. (50m) line-of-sight
