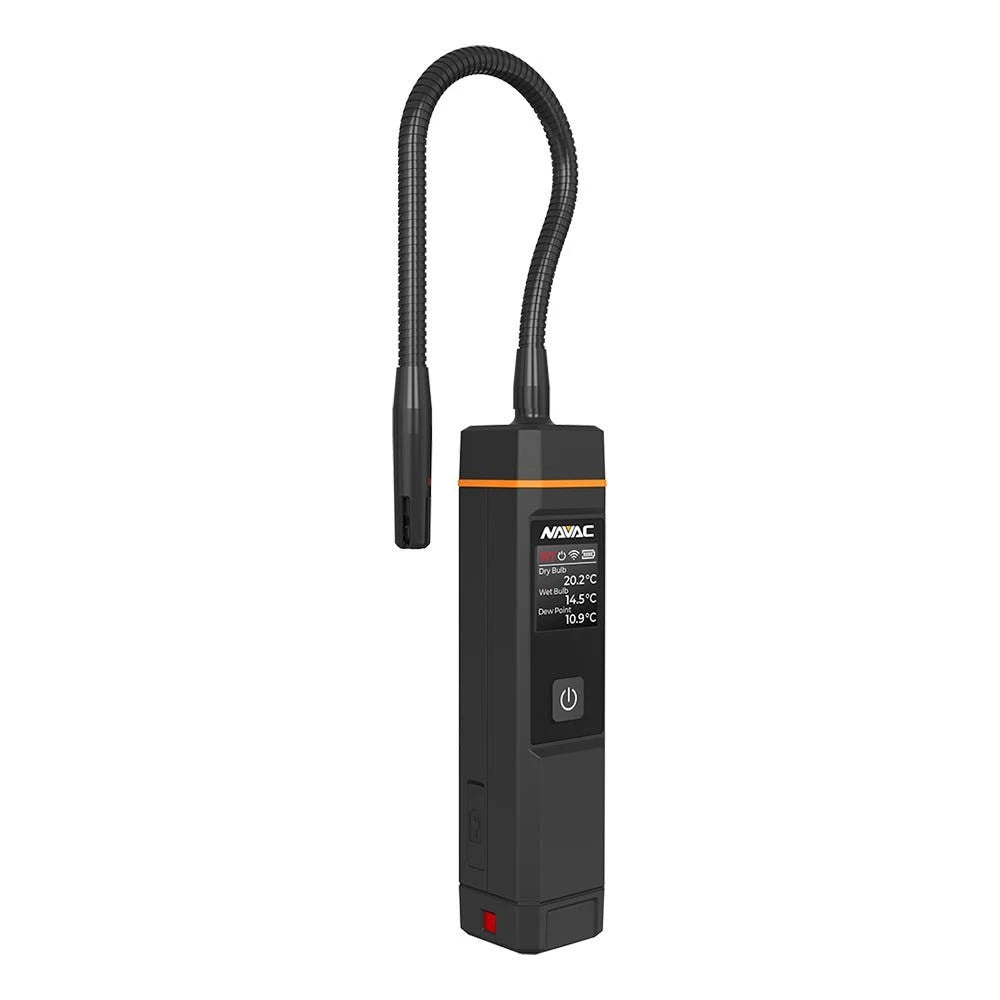

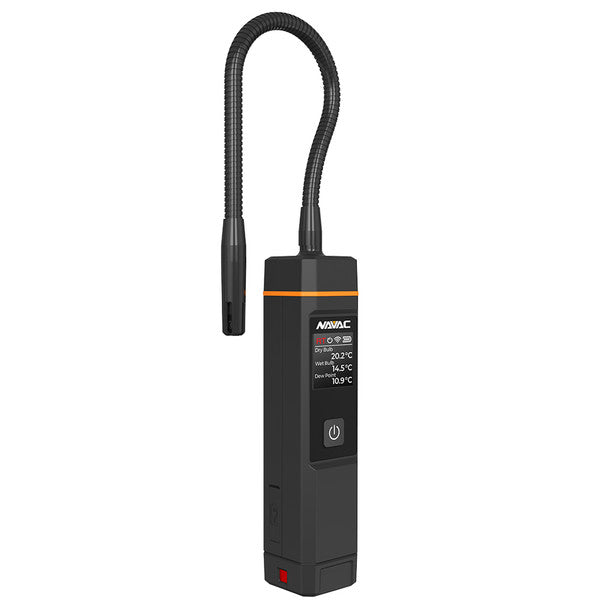

NAVAC NSH1 Bluetooth Psychrometer

Product Description

The NAVAC NSH1 is a psychrometer designed for humidity measurement in HVAC applications. This tool comes with Bluetooth connectivity for use with the myNAVAC app. It can also operate independently using its digital display. The unit shows psychrometric data, covering dry bulb, wet bulb, dew point, relative humidity, absolute humidity, and enthalpy.

• Offers Bluetooth connectivity for wireless operation.
• Displays simultaneous psychrometric data points.
• Features a rechargeable battery with up to 150 hours of life.

Product Highlights

This psychrometer is a reliable choice for HVAC technicians who need accurate humidity readings and temperature data.

Product Information

Standard Information

• Brand: NAVAC
• Model: NSH1

Technical Specifications

• Temperature Range: -40 degrees F to 249.8 degrees F
• Humidity Measurement Range: 0 to 100% RH
• Measurement Units: °F, °C, % RH, °Ftd, °Ctd, Wet Bulb °F, Wet Bulb °C
• Accuracy Humidity: ±2.0%RH (10 to 90%RH) at 77 degrees F / 25 degrees C, ±5.0%RH (<10%RH or >90%RH) at 77 degrees F / 25 degrees C
• Accuracy Temperature: ±1.1 degrees F (-4 degrees F to 32 degrees F), ±0.6 degrees C (-20 to 0 degrees C); ±0.9 degrees F (32 degrees F to 140 degrees F), ±0.5 degrees C (0 to 60 degrees C); ±1.3 degrees F (140 degrees F to 248 degrees F), ±0.7 degrees C (60 to 120 degrees C)
• Resolution Humidity: 0.1%RH
• Resolution Temperature: 0.1 degrees C
• Sensor Type Humidity: Capacitive Polymer Film
• Sensor Type Temperature: Precision Thermistor
• Response Time: 10 seconds
• Bluetooth Range: 164ft (50m)
• Power Supply: Rechargeable 1200mAh lithium battery, Type-C Charging Port
• Rechargeable Battery Operating Time: Screen off: >200h; Screen on: >40h
• Unit Weight: 7.8oz (0.49lbs / 220g)
• Accessory: Carry bag
• Wireless Frequency: 2.4 GHz
• Auto Power Off (APO): 2 hours (can be disabled)
• Flexible Probe Length: 7.9 in (200 mm)
• Flexible Probe Diameter: 0.39 in (10mm)
• Minimum Device Requirement: BLE4.0 or above, Android 7.0.0 or above, Apple iOS 12.0 or above
• Warranty: 1 Year
