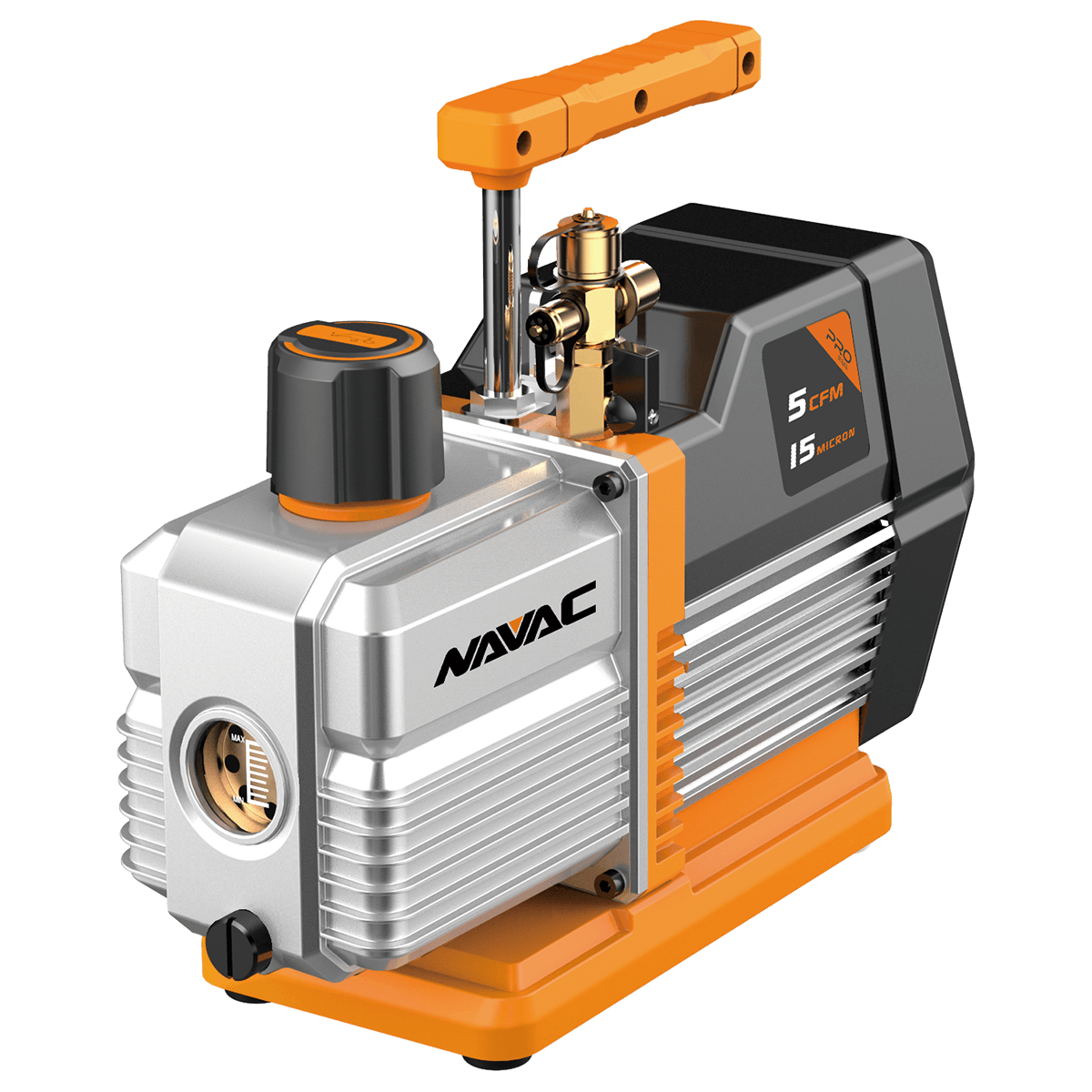

NAVAC NP5DP Vacuum Pump 4CFM 110 to 120, 220 V, 1/2 hp 1/4, 3/8, 1/2 in

Product Description

The NAVAC NP5DP is a vacuum pump designed for performance in varied applications. This dual-stage vacuum pump operates efficiently at four cubic feet per minute and supports both 110 to 120 and 220 volts. It features multiple connection sizes including one-fourth, three-eighths, and one-half inches.

• Dual-voltage support for enhanced versatility
• Advanced air-cooled motor for reliable operation
• Gas ballast valve for fast deep vacuum achievement

Product Highlights

This product provides an optimal solution for HVAC professionals requiring a powerful and dependable vacuum pump.

Product Information

Standard Information

• Brand: NAVAC
• Type: Vacuum Pump

Technical Specifications

• Horsepower: 0.75 hp
• Free Air Displacement: 6 CFM @ 60 Hz, 144 l/min @ 50 Hz
• Ultimate Vacuum: 15 microns
• Operating Temperature Range: 0°C (32°F) to 52°C (125°F)
• Oil Capacity: 19 oz
• Connection Sizes: 1/4, 3/8, 1/2 in
• Shipping Weight: 24.3 lbs
• Dimensions: 14 in x 11.3 in x 5 in
