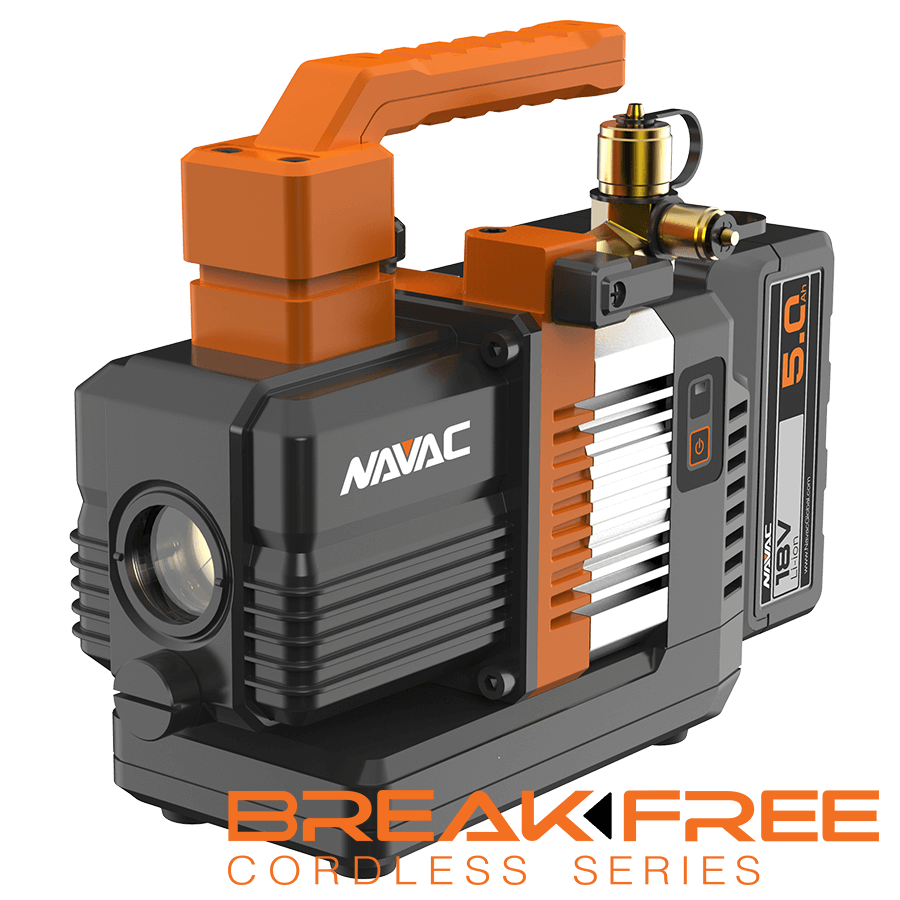

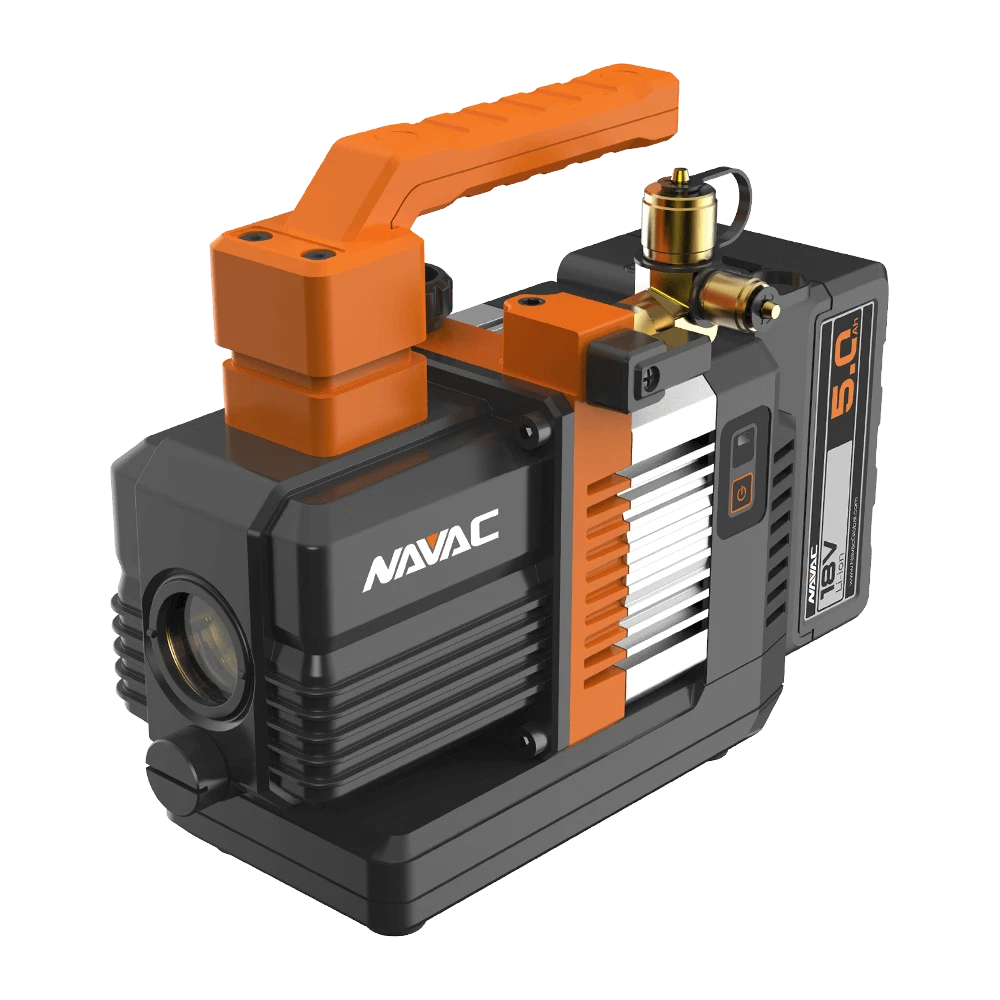

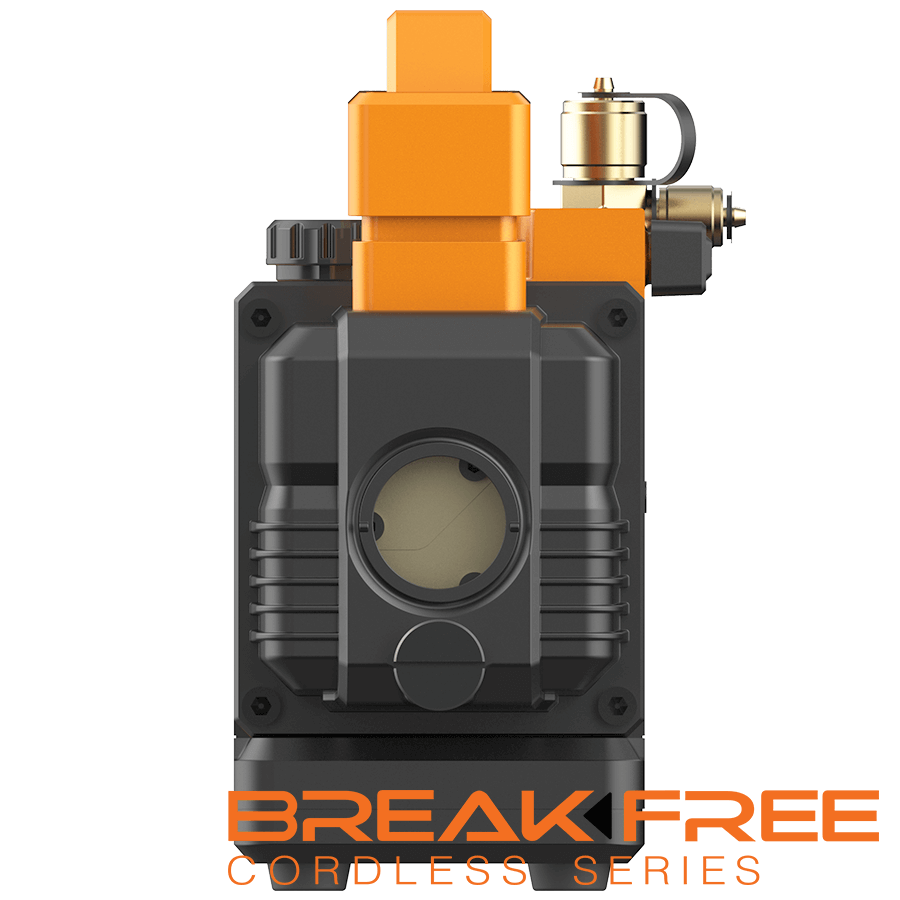

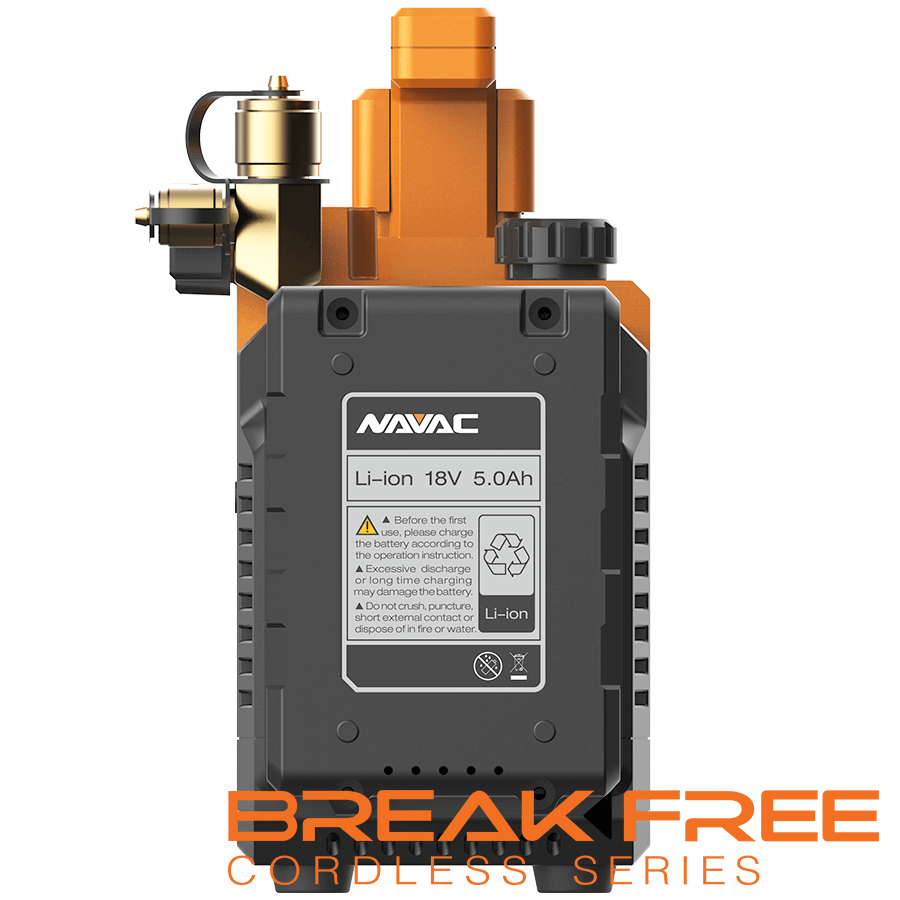

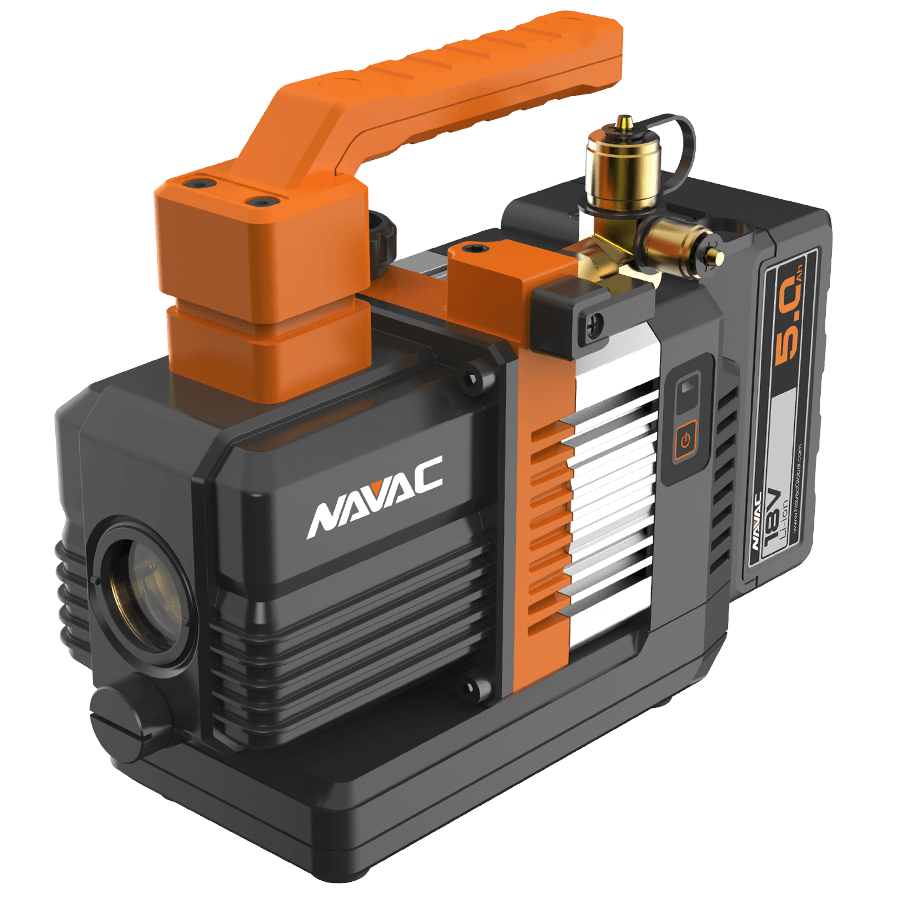

NAVAC NP2DLM BreakFree Cordless Vacuum Pump

Product Description

The NAVAC NP2DLM BreakFree Cordless Vacuum Pump is a dual-stage pump designed for effective evacuation processes. It features a cordless operation powered by an eighteen-volt, five amp hour battery. This vacuum pump reaches an ultimate vacuum level of twenty-three microns. It incorporates a backflow prevention check valve and an isolation ball valve for enhanced operational control. The pump includes both one-quarter and three-eighths flare inlet ports and utilizes brushless DC technology with a twin-cylinder design, making it compatible with A2L applications.

• Operates cordless with a lithium battery for up to one hour.
• High ultimate vacuum down to twenty-three microns.
• Includes an isolation ball valve and backflow prevention check valve.

Product Highlights

The NAVAC NP2DLM BreakFree Vacuum Pump is ideal for HVAC technicians and professionals requiring efficient vacuum operations in various applications.

Product Information

Standard Information

• Brand: NAVAC
• Type: Vacuum Pump

Technical Specifications

• Model: NP2DLM
• Battery: 18V, 5Ah
• Flow Rate: 4 CFM
• Ultimate Vacuum: 23 Microns
• Pump Design: Dual stage
• Inlet Port: 1/4, 3/8 Flare
• Oil Capacity: 5.1 oz
• Dimensions: 9.2 x 3.5 x 7.5 inches
• Weight: 8.4 lbs
• Power Supply: 18V, 5Ah
• Motor Power: 1/2 HP
• Accessory: Carry bag, NB1 Battery, NC2 Charger, Oil Bottle (Oil Not Supplied)
• Warranty: 2 Years
• Stages: Dual-Stage down to 23 Microns
• Technology: Brushless DC technology
• Valves: Backflow Prevention Check Valve, Includes Isolation Ball Valve
• Cylinder: Twin Cylinder
• A2L Compatible: Yes
• Safety Standards California Prop 65: Yes
• Shipping Weight: 9 lbs
