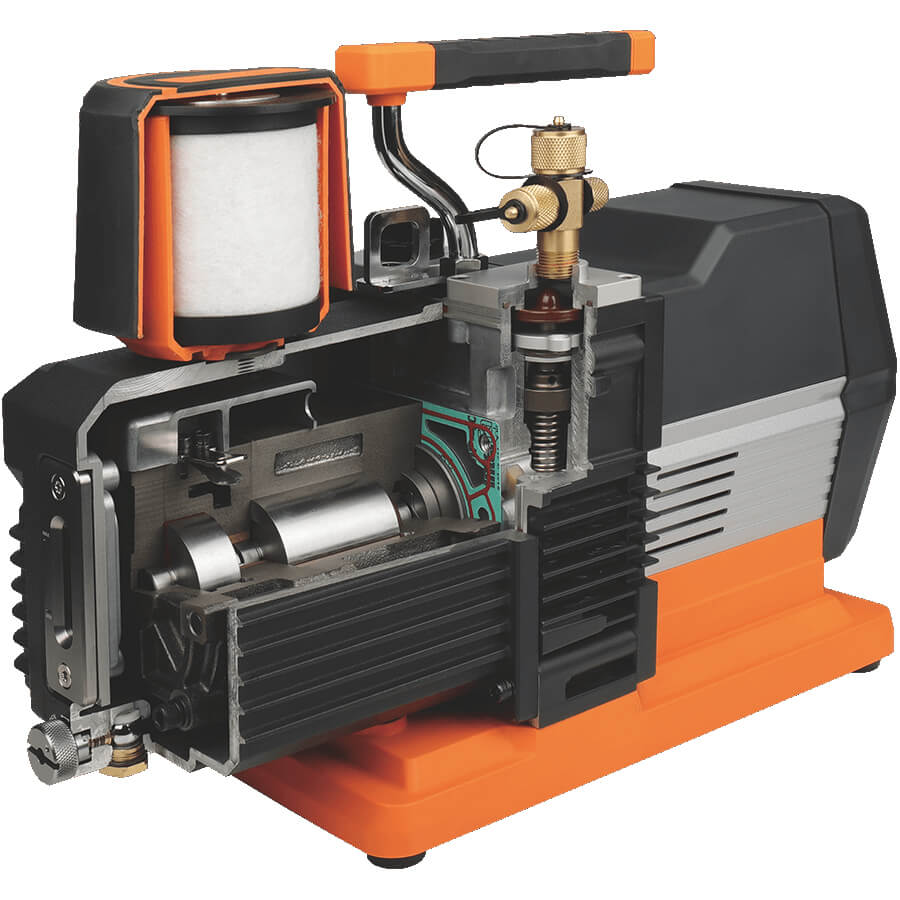

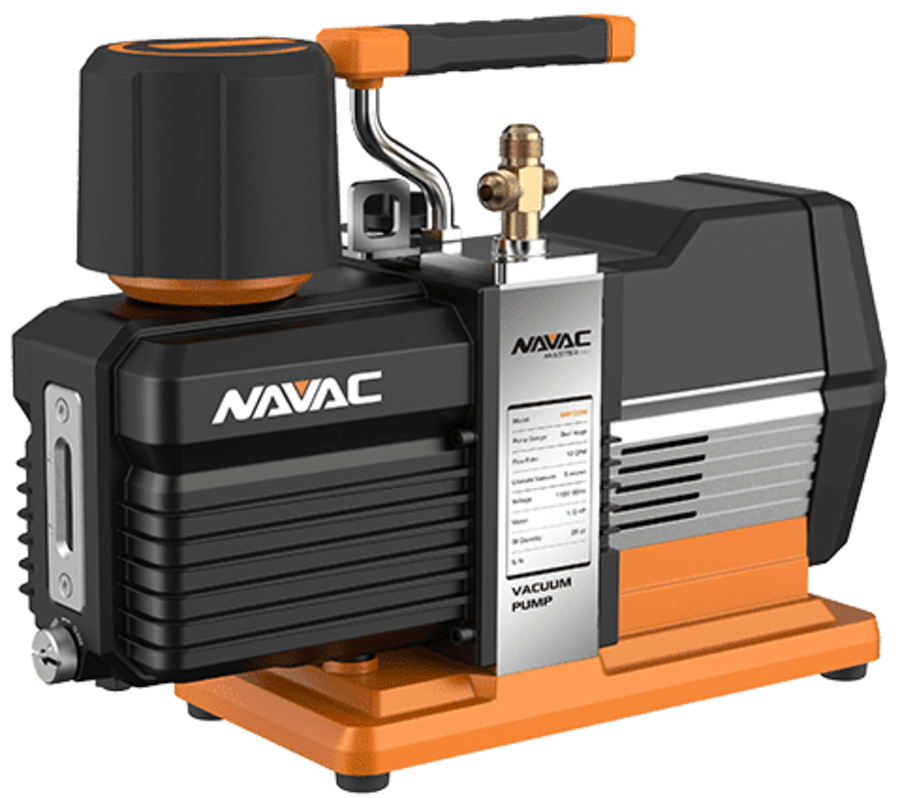

NAVAC NP12DM Vacuum Pump, 12 CFM 5 Micron 115V w/ 3 inlet ports

Product Description

The NAVAC NP12DM is a dual stage vacuum pump designed for HVAC professionals. This vacuum pump operates at twelve cubic feet per minute and reaches an ultimate vacuum of five microns, making it suitable for commercial refrigeration and air conditioning systems.

• Dual stage rotary vane technology
• Inverter motor for efficient operation
• Three inlet ports: one quarter inch, three eighths inch, and one half inch

Product Highlights

Designed for reliability, the NP12DM integrates oil back-flow prevention. It is ideal for achieving deep vacuums and fast evacuation times.

Product Information

Standard Information

• Brand: NAVAC Inc
• Part Number: NP12DM
• Series: Spring Stocking
• Country of Origin: USA

Technical Specifications

• Air Flow Capacity: 12 CFM
• Ultimate Vacuum: 5 microns
• Voltage: 115V
• Amperage: 7.9 A
• Horse Power: 1/2 HP
• Weight: 39.7 lbs
• Shipping Dimensions: 22.3 x 14.2 x 9.2 inches
• Oil Capacity: 28 fl oz
