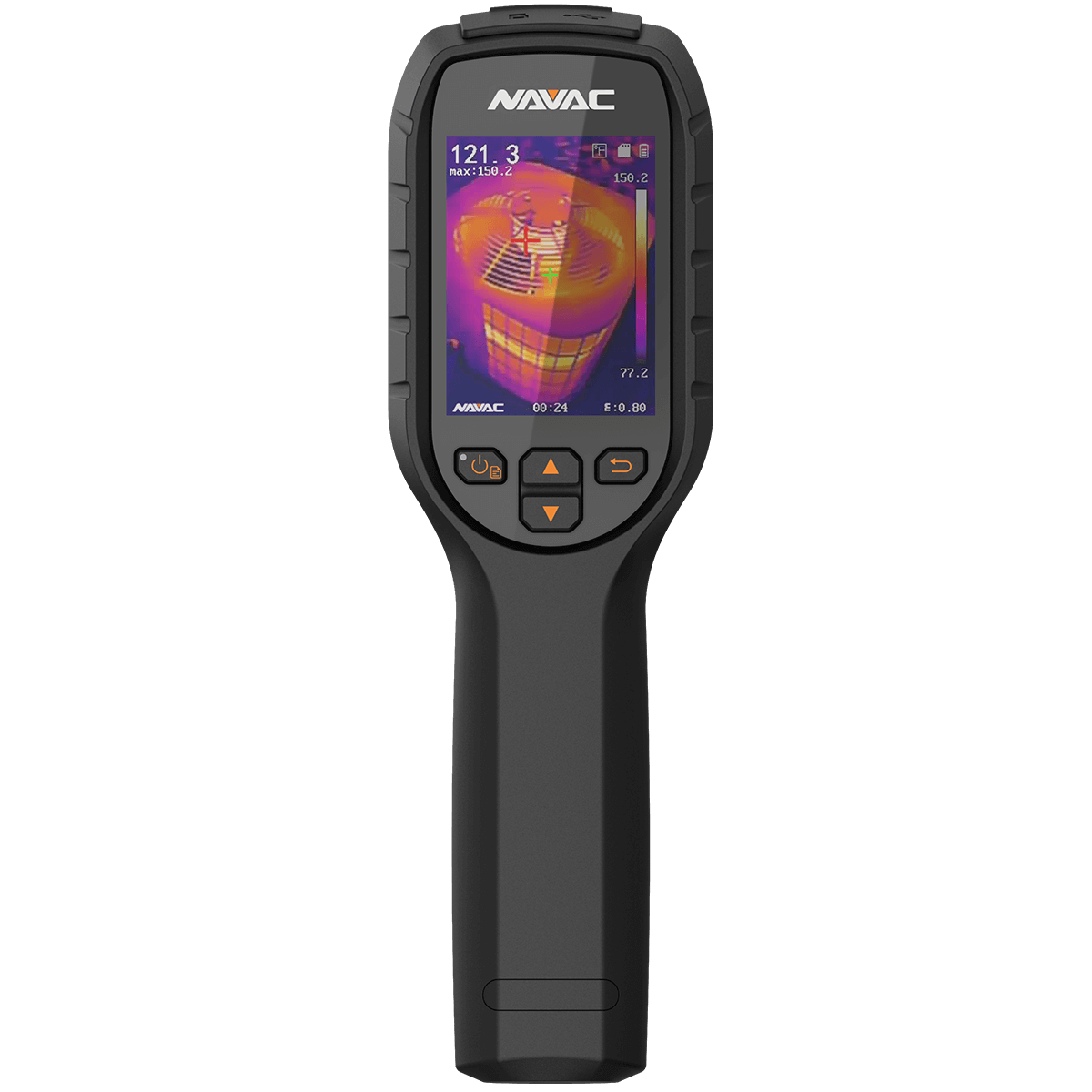

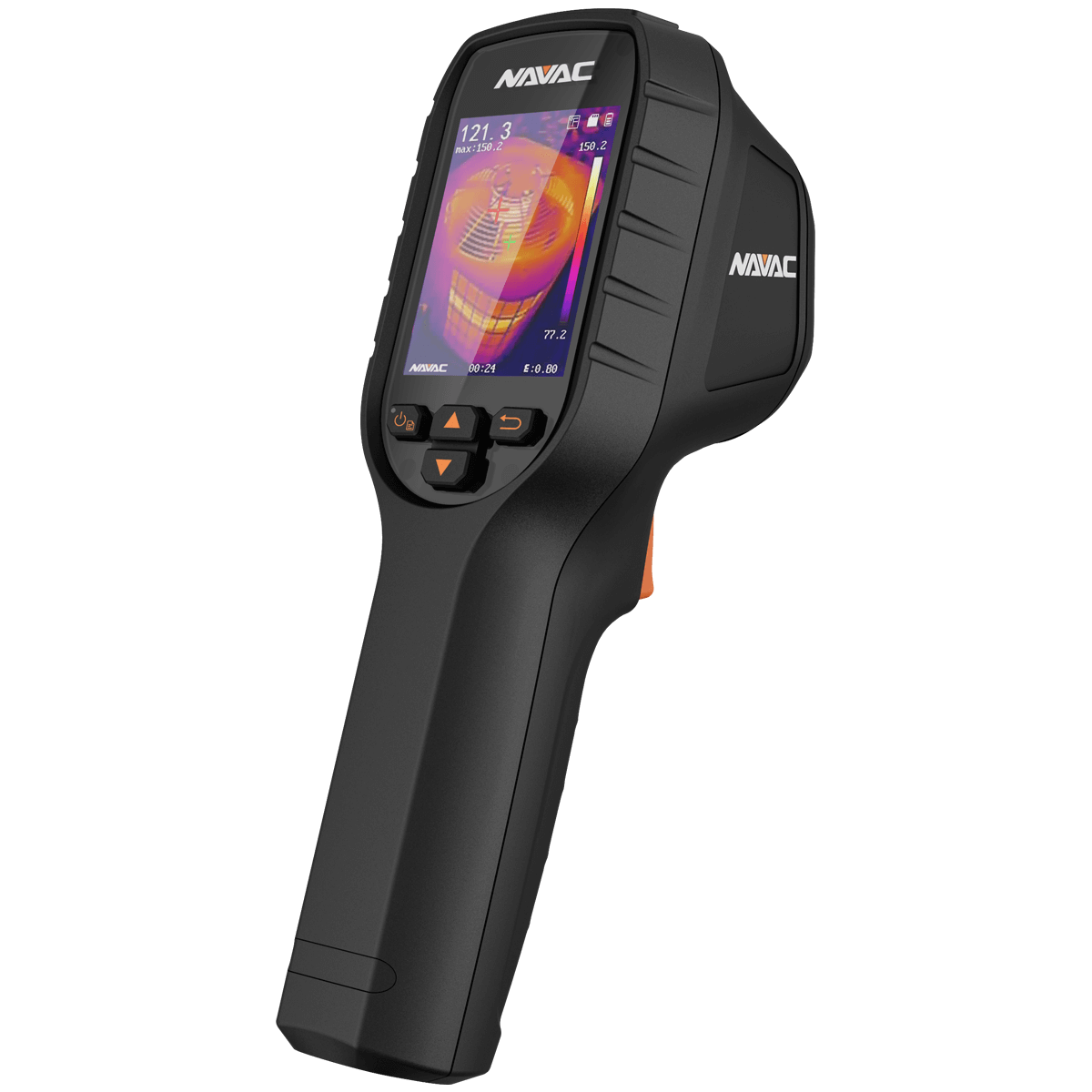

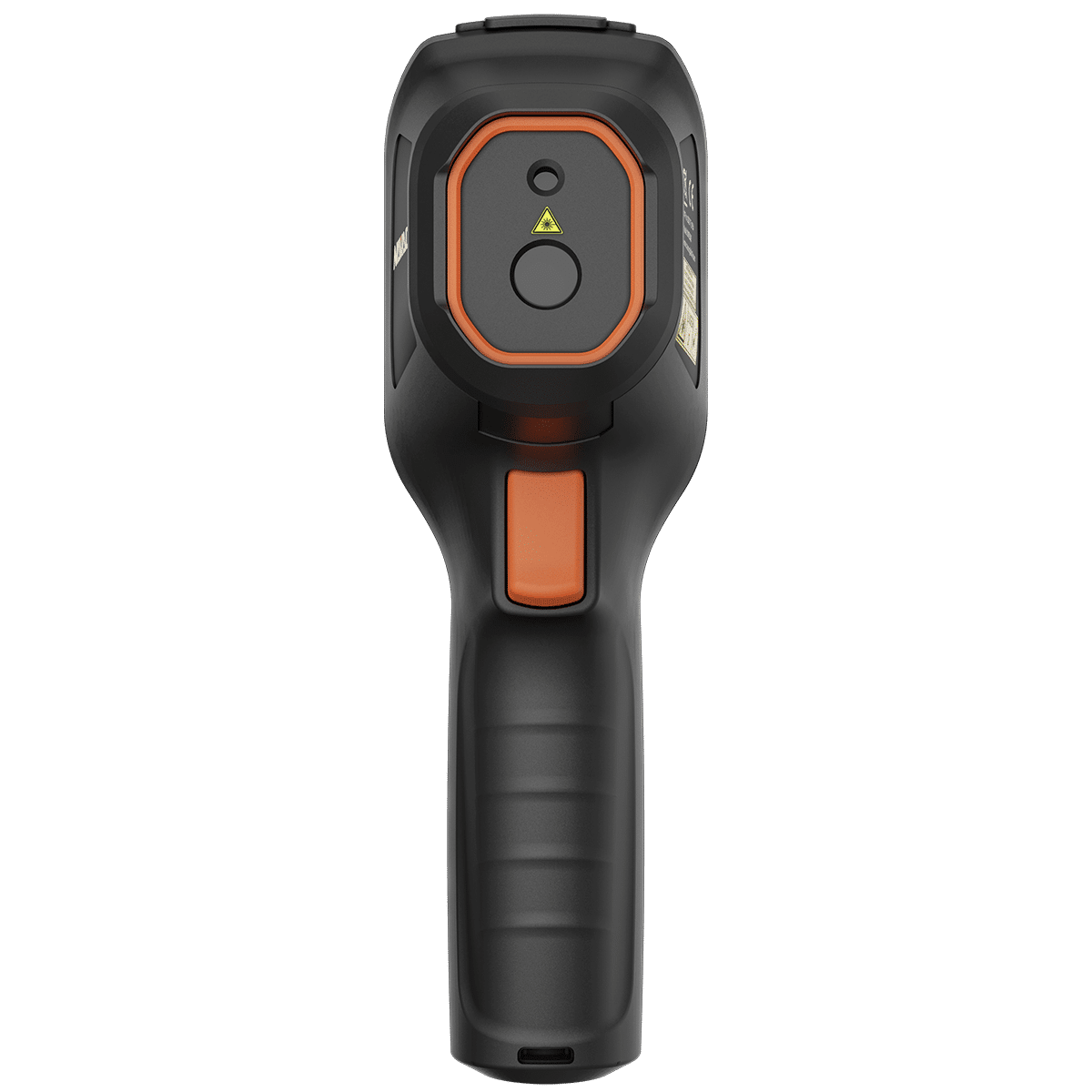

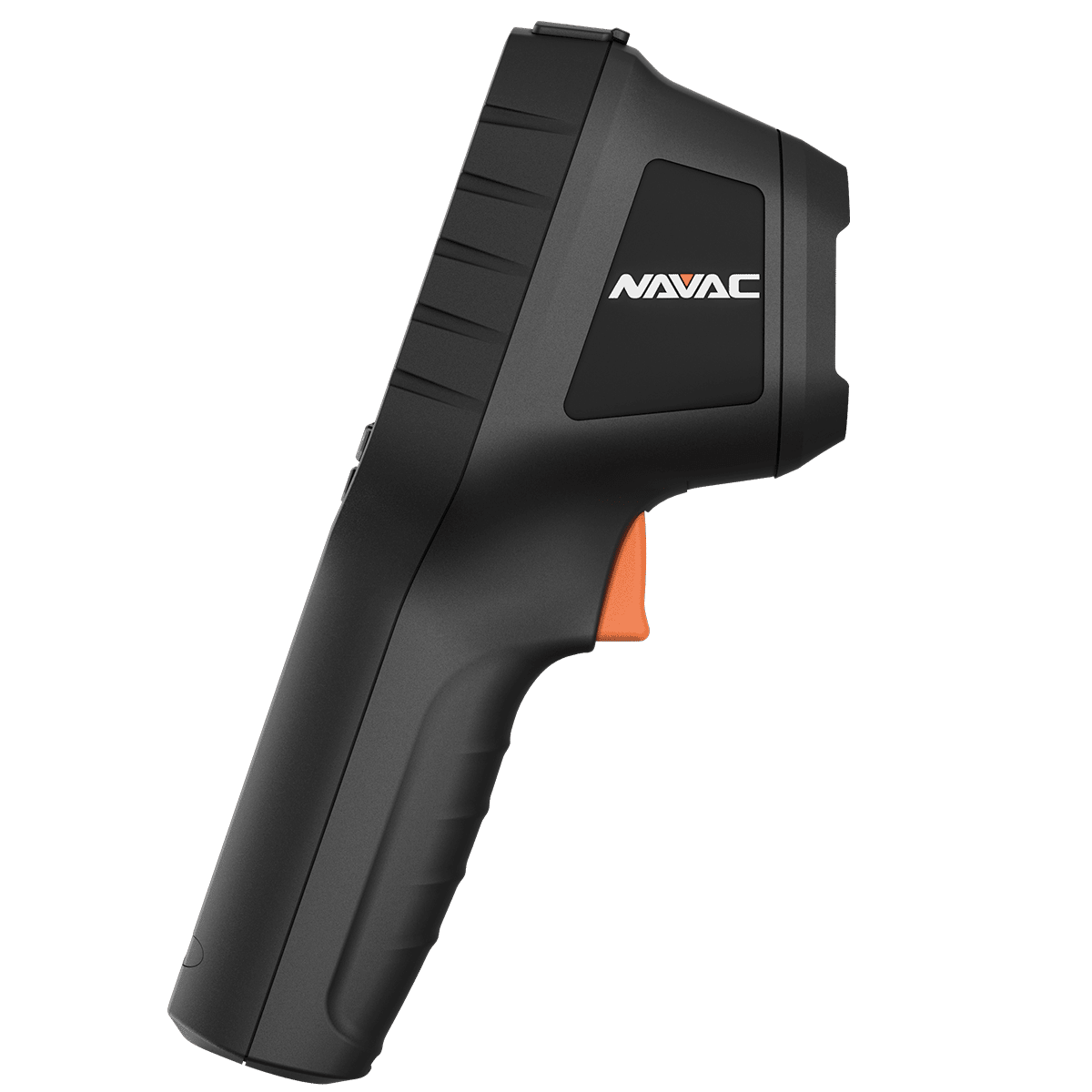

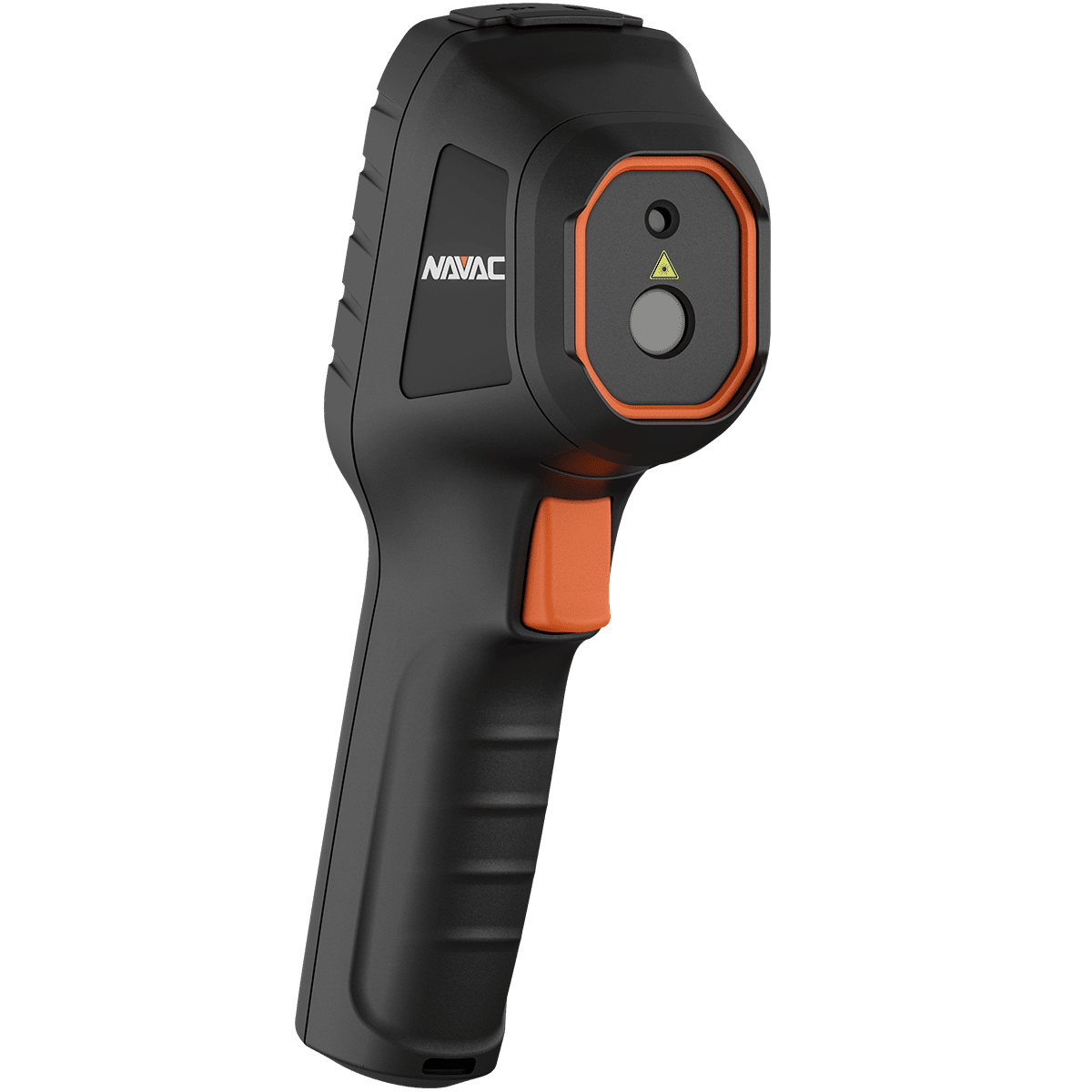

NAVAC NMT1000 Thermal Imaging Camera

Product Description

The NAVAC NMT1000 Thermal Imaging Camera is an essential tool for HVAC professionals. This device features a thermal resolution of one hundred sixty by one hundred twenty pixels and utilizes a Vanadium Oxide Detector. It can measure temperatures from negative four degrees Fahrenheit to one thousand twenty-two degrees Fahrenheit, ensuring accuracy for a wide range of applications.

• Temperature measurement from -4°F to 1022°F (-20°C to 550°C)
• Includes measurement presets for Center Spot, Hot Spot, and Cold Spot analysis
• Continuous operation for up to eight hours on battery power

Product Highlights

This thermal camera is designed for quick startup and easy operation, making it ideal for both residential and commercial HVAC inspections.

Product Information

Standard Information

• Brand: NAVAC
• MPN: NAVAC-NMT1000

Technical Specifications

• Model: NMT1000
• Thermal Resolution: 160 x 120 (19,200 pixels)
• Refresh Frequency: 25 Hz
• Display: 320 x 240 pixels, 2.4-inch color LCD
• Temperature Range: -4°F to 1022°F (-20°C to 550°C)
• Measuring Accuracy: ± 3.6°F (± 2°C) or ± 2%
• Thermal Sensitivity (NETD): < 40 mK
• Battery Life: 8 hours
• Measurement Presets: Center Spot, Hot Spot, Cold Spot, Off
• Accessories: Micro SD (inside the camera), USB Cable, Protective Bag, Wrist Strap
• Warranty: 2 years
