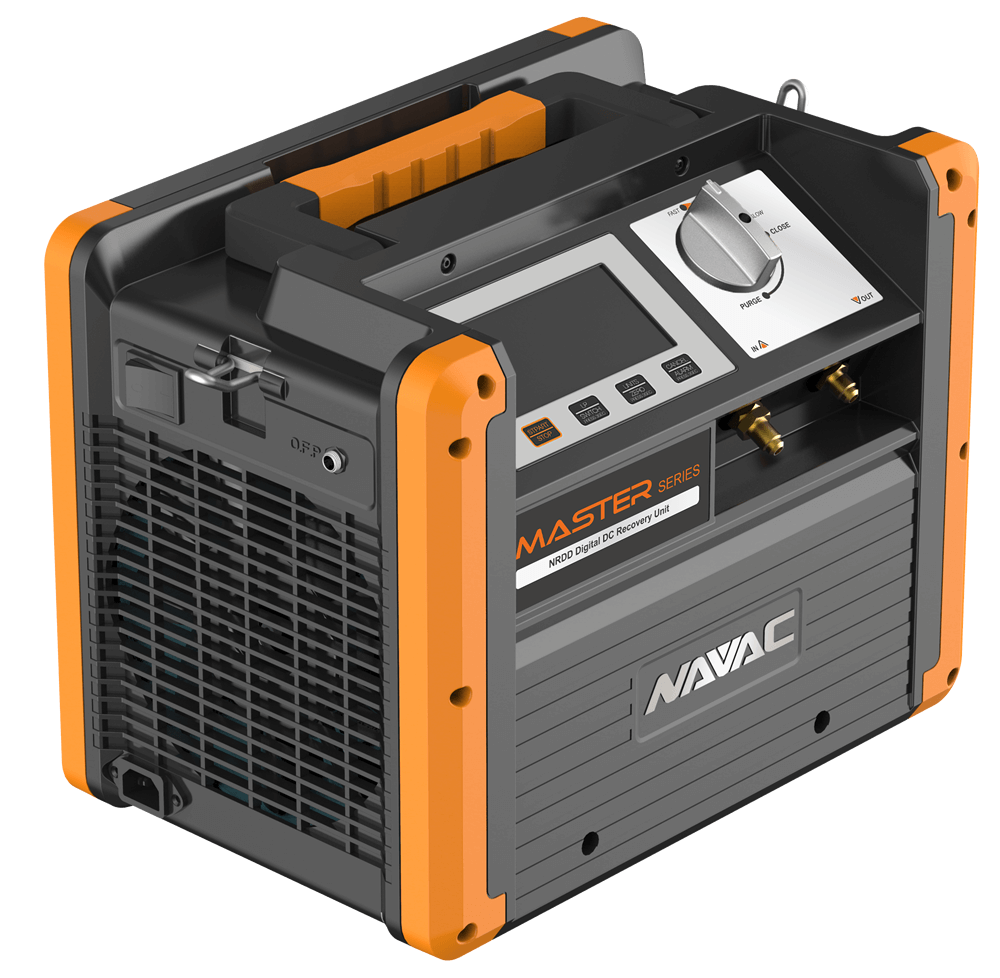

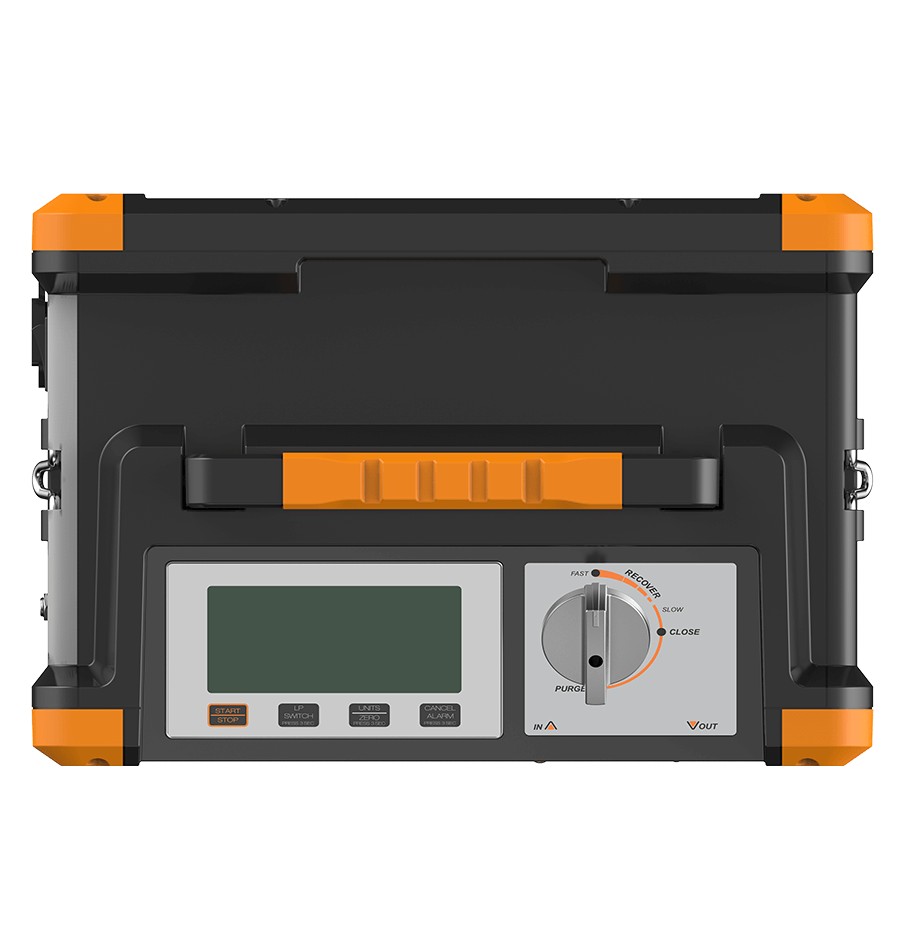

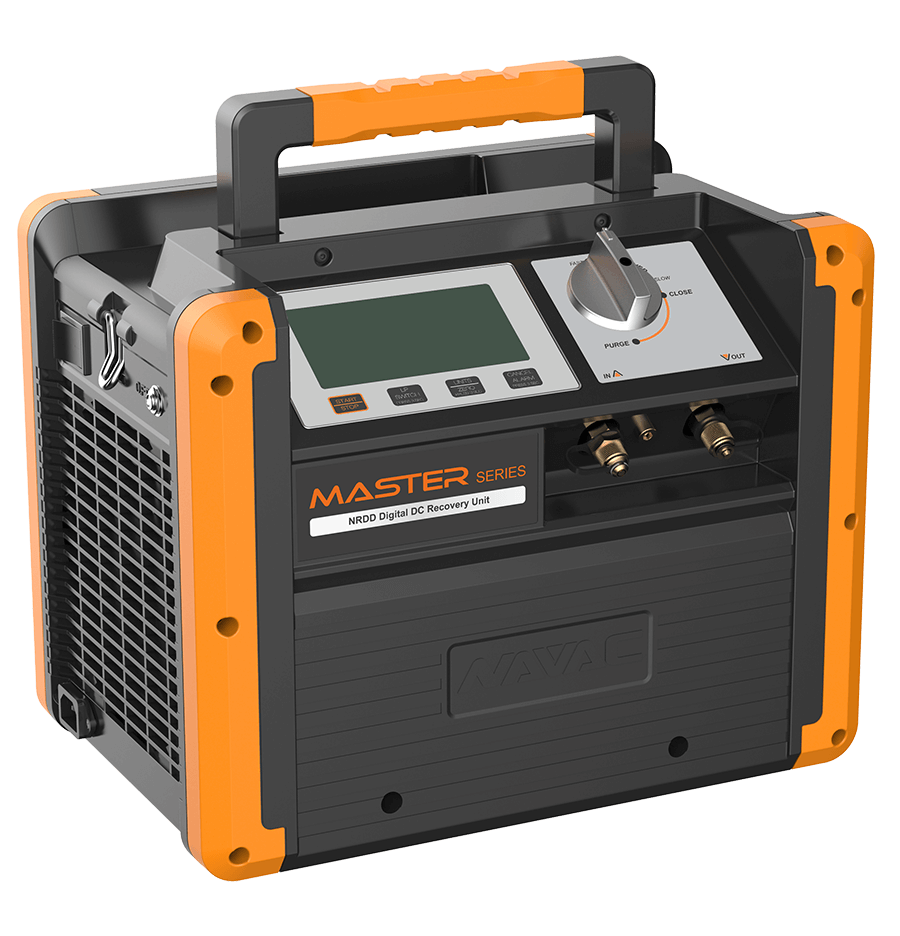

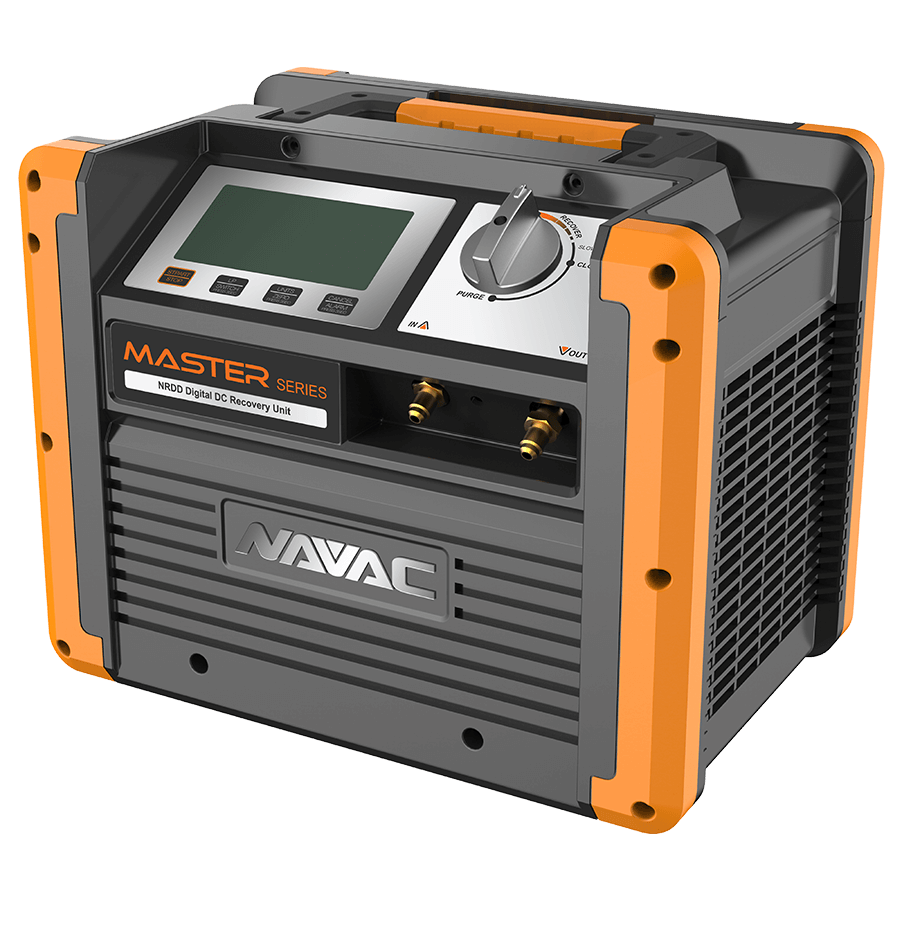

NAVAC NAVAC-NRDD NAVAC NRDD Brushless DC Recovery Unit

Product Description

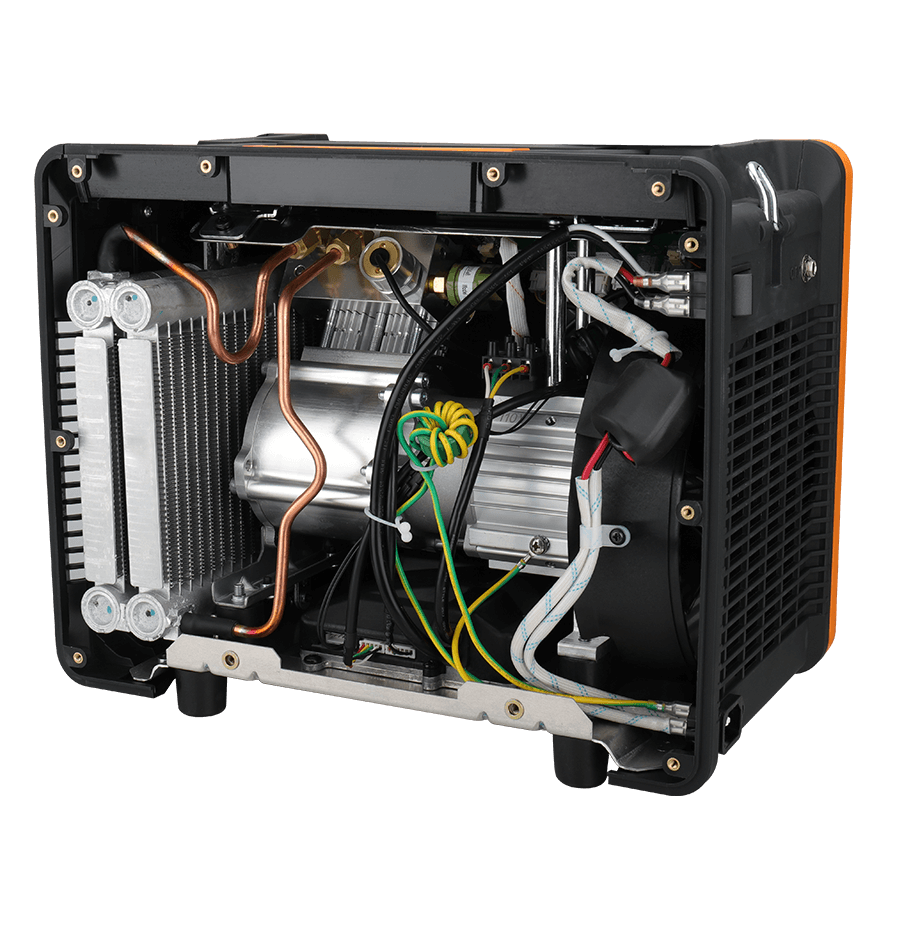

The NAVAC NRDD is a refrigerant recovery unit designed for efficient and effective refrigerant management. This unit features a brushless DC motor and an oil-free compressor, which enhance its reliability and performance in various refrigerant recovery applications. The twin-cylinder design contributes to quicker recovery times. It includes a self-purging function and a large backlit display for real-time monitoring of recovery operations. It is suitable for use with multiple refrigerants, including R-12, R-134a, R-410A, and R-22.

• Lightweight and compact for easy transportation.
• Dual cylinder design offers fast recovery operation.
• Compatible with various refrigerants for versatility.

Product Highlights

This recovery unit allows technicians to manage refrigerant types effectively and ensures safe operations with built-in safety features.

Product Information

Standard Information

• Model: NRDD
• Power Supply: 115V/60Hz

Technical Specifications

• Motor: 1 HP
• FLA: 11 A
• Max Current Draw: 12 A
• Compressor Type: Oil-less, Air-cooled, Piston style
• Automatic Safety Shut-Off: 558 psi / 38.5 bar
• Recovery Rate R-410A Direct Vapor: 0.75 lbs/min
• Recovery Rate R-22 Direct Vapor: 0.64 lbs/min
• Dimension: 14.5 inches x 9.9 inches x 11.7 inches
• Weight: 25.4 lbs
• Warranty: 3 years
