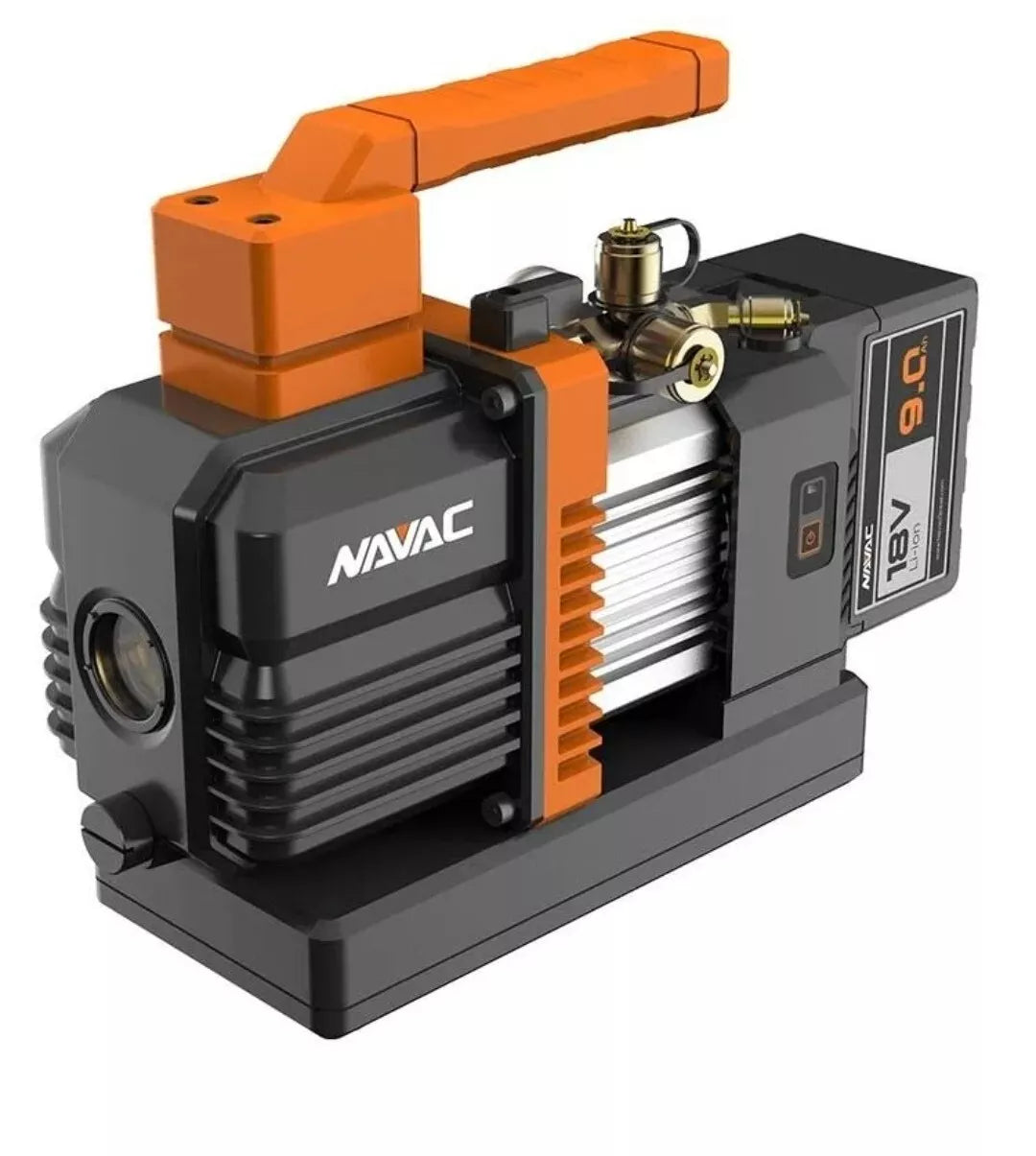

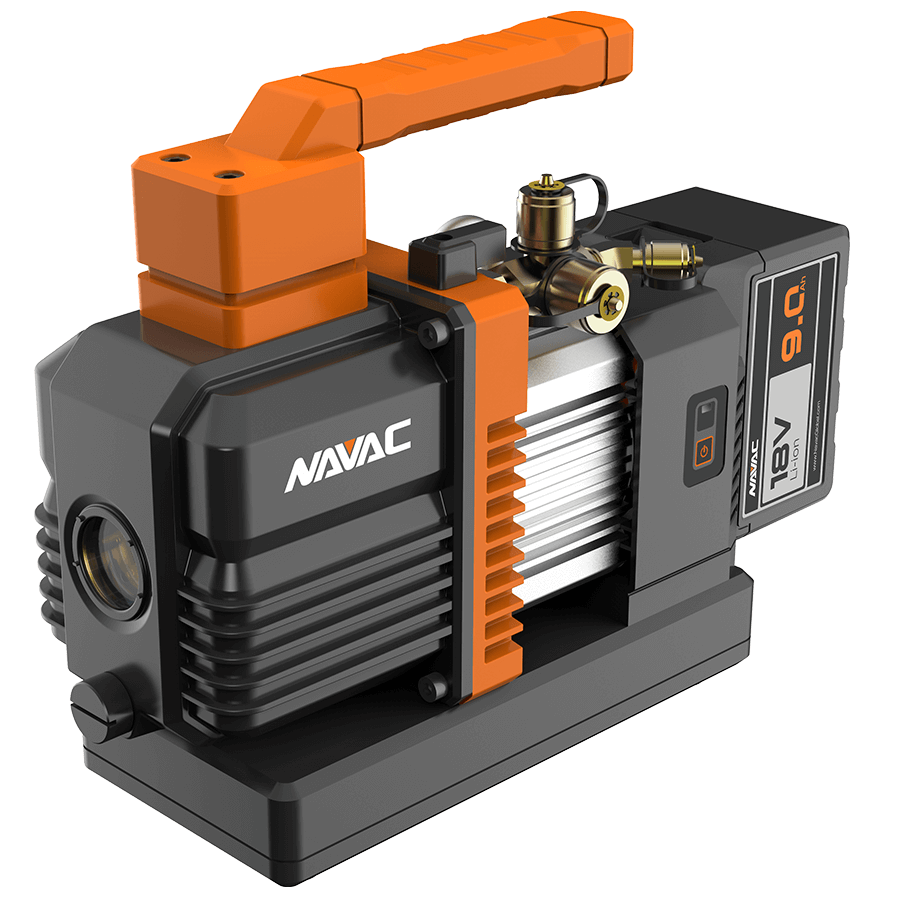

NAVAC NAVAC-NP4DLM Cordless Vacuum Pump - 4 CFM

Product Description

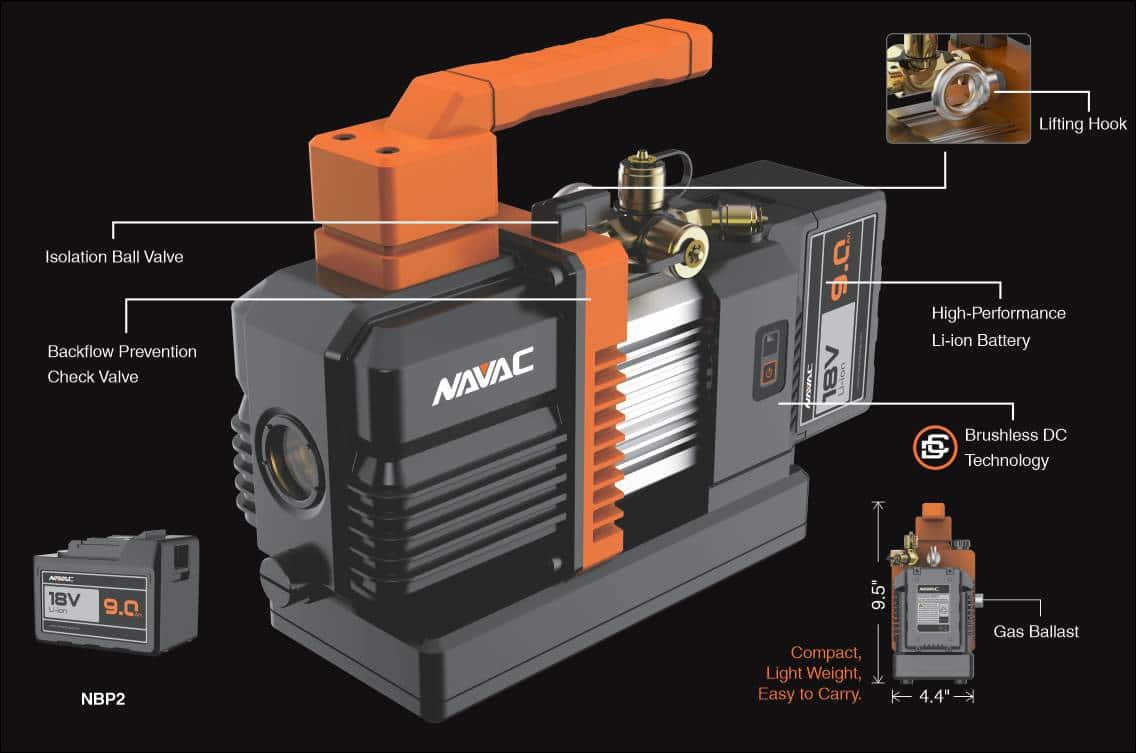

The NAVAC NP4DLM cordless vacuum pump is designed for residential and light commercial use. This pump offers a flow rate of four cubic feet per minute and can achieve an ultimate vacuum down to fifteen microns through its dual-stage operation. It is powered by an eighteen-volt, nine amp-hour lithium battery, providing up to one hour of runtime on a single charge. The pump features a check valve to prevent backflow and an isolation valve for maintenance tasks. A gas ballast is included to assist with moisture handling. Weighing fifteen point four pounds, this vacuum pump incorporates a lifting hook to enhance portability. It is compatible with A2L refrigerants and has an inlet port that accommodates quarter-inch, three-eighths-inch, and half-inch flares.

• Provides portability through its cordless design.
• Optimizes battery performance with automatic power management.
• Ensures easy transport with its compact size and lightweight structure.

Product Highlights

The NAVAC NP4DLM is built for efficiency and ease of use in HVAC applications, making it an ideal choice for technicians.

Product Information

Standard Information

• Brand: NAVAC
• Type: Tool

Technical Specifications

• Model: NP4DLM
• Flow Rate: 4 CFM
• Ultimate Vacuum: 15 Micron
• Battery: High-performance lithium
• Running Time: Up to one hour
• Weight: 15.4 pounds
• Inlet Port: 1/4, 3/8, 1/2 Flare
• Power Supply: 18V, 9Ah
• Pump Design: Dual-Stage, DC Motor
• Motor Power: 1/2 HP
• Oil Capacity: 8.8 oz
• Dimensions: 12.4 x 4.4 x 9.4 inches
• Accessory: Carry bag, NBP2 Battery, NC2 Charger, Oil Bottle (Oil Not Supplied)
• Warranty: 2 Years
• Amperage Rating: 10 A
• Voltage Rating: 18 V
