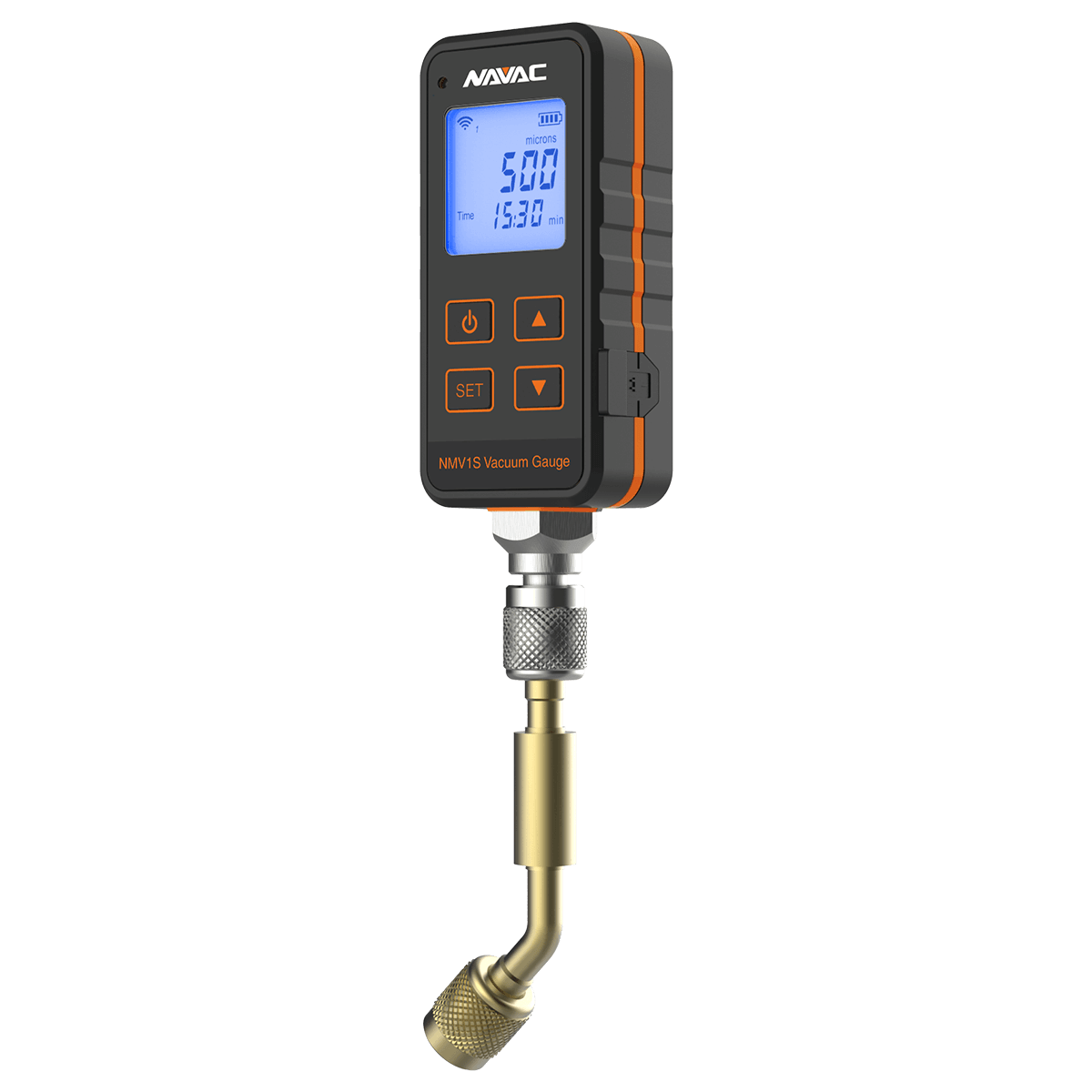

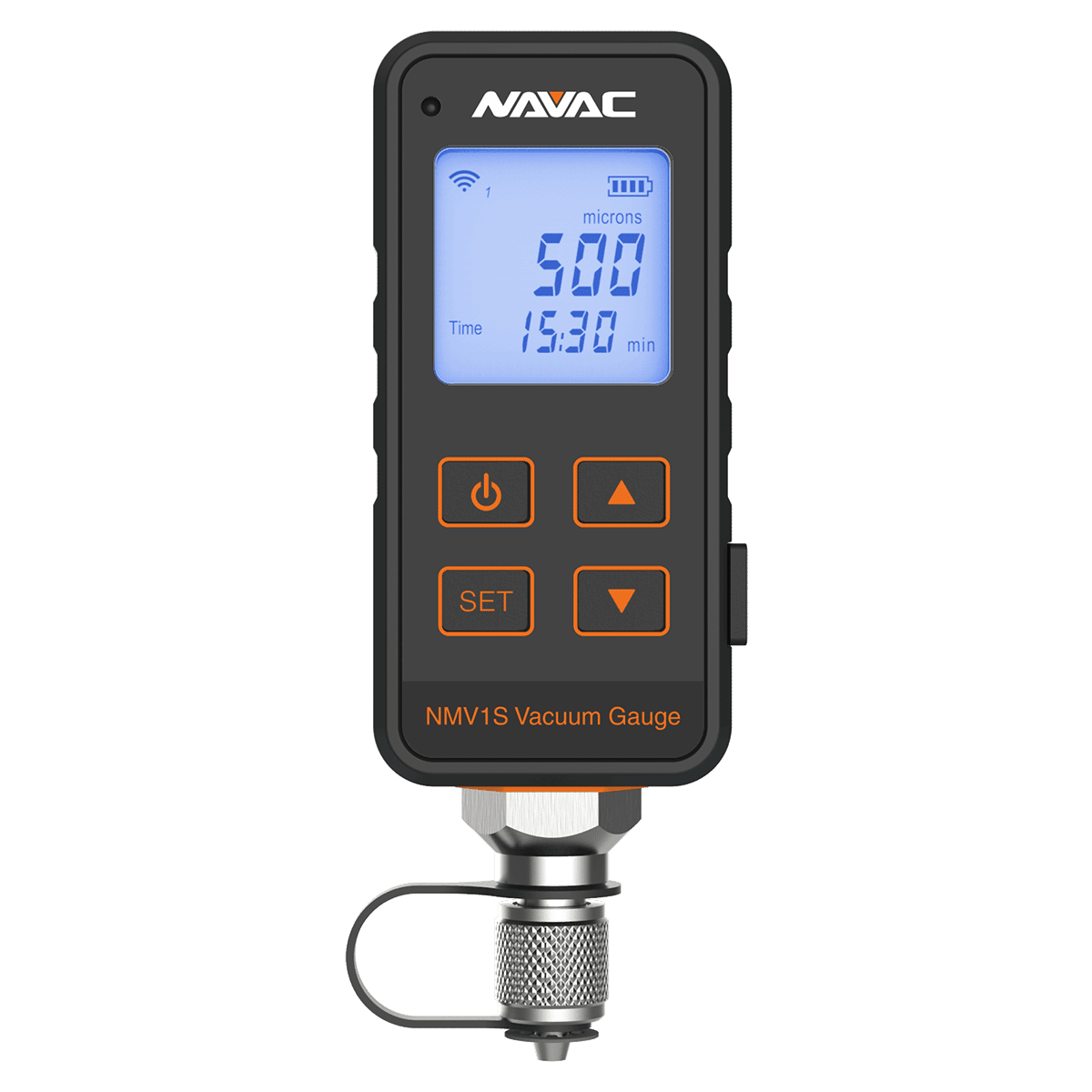

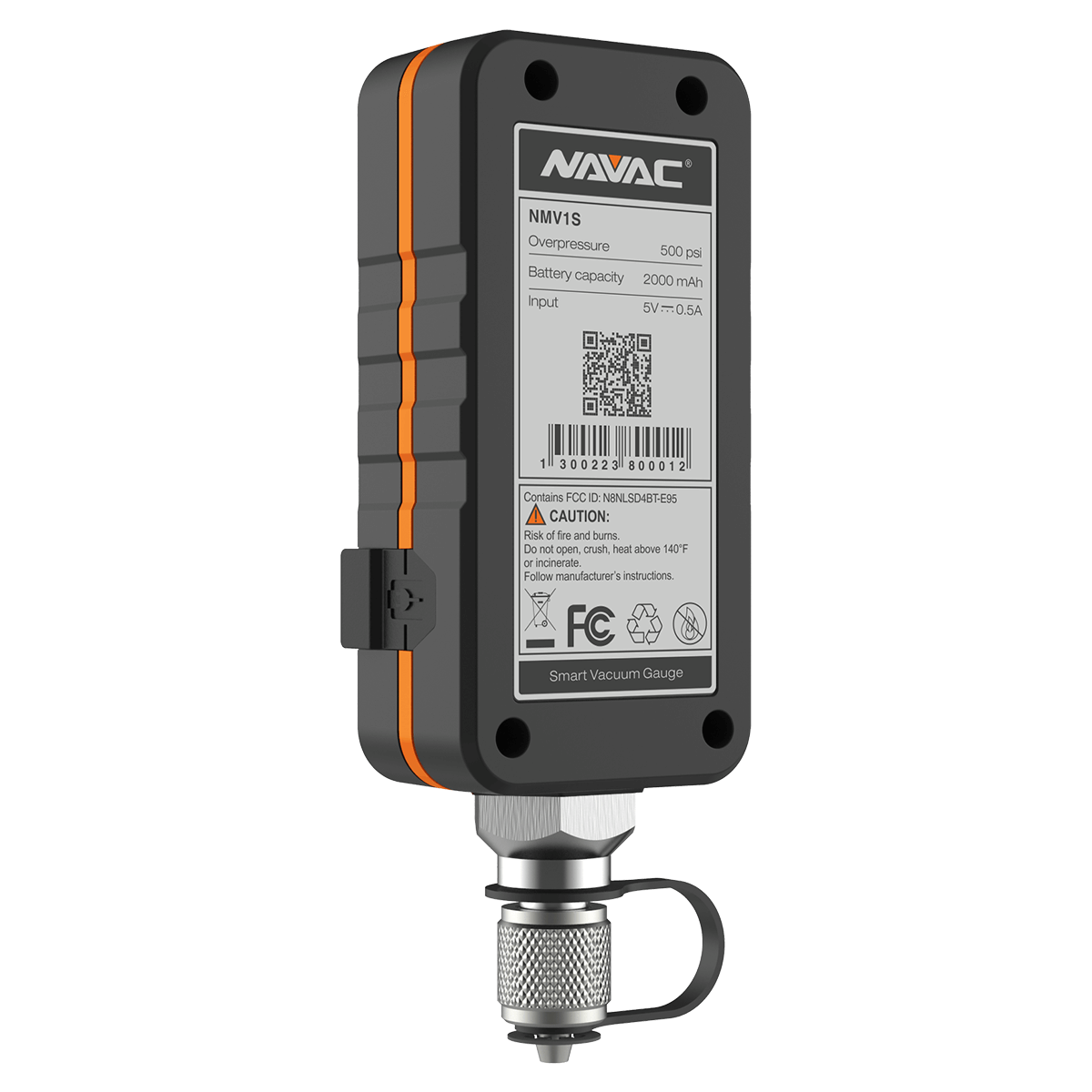

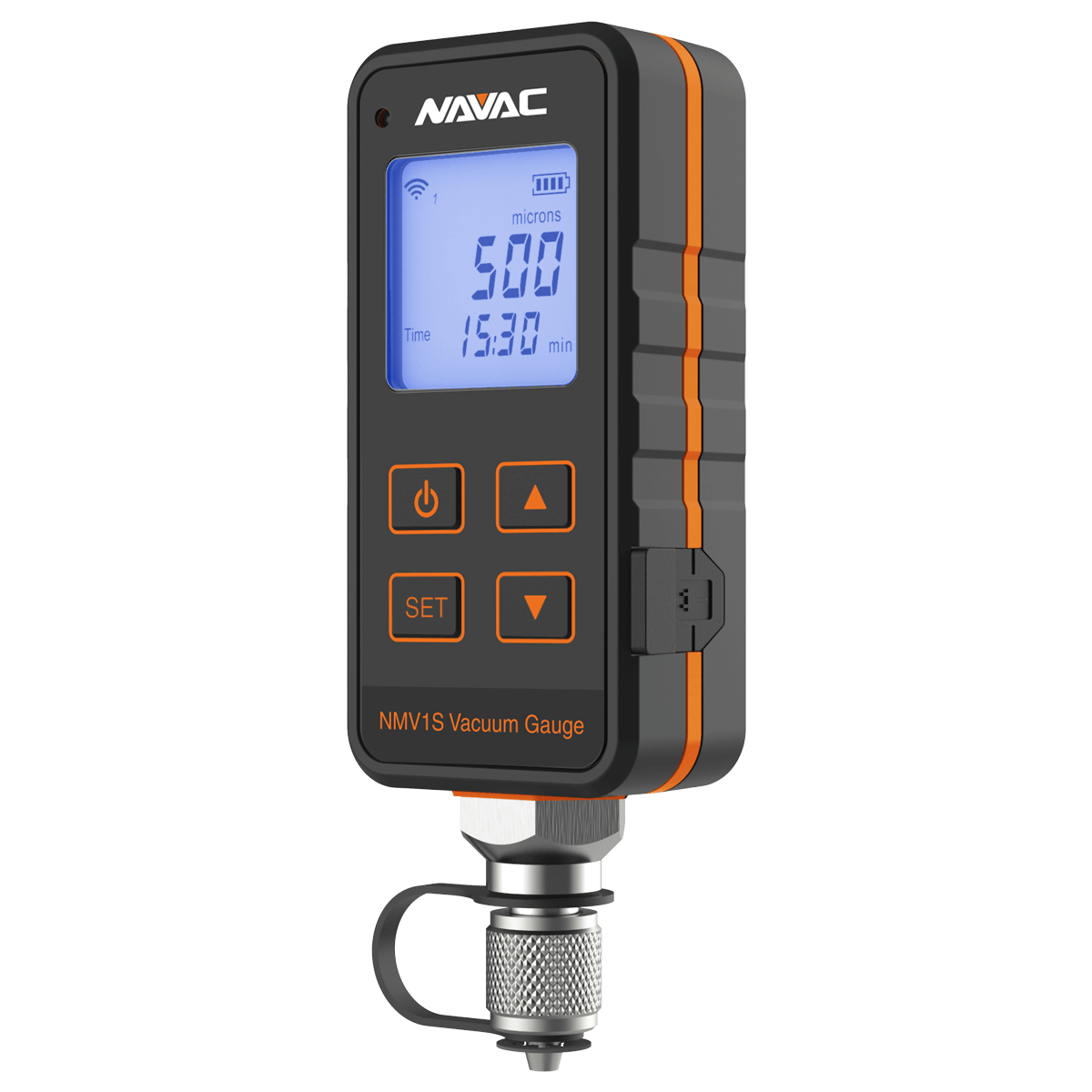

NAVAC NAVAC-NMV1S Premium Digital Micron Vacuum Gauge

Product Description

The NAVAC NMV1S Premium Digital Micron Vacuum Gauge uses a Pirani sensor to accurately measure vacuum levels. It has a backlit digital display showing clear readings. This device features a rechargeable lithium-ion battery for prolonged use. The maximum overload pressure is five hundred psi. It includes alerts for vacuum level reminders and leakage warnings, with customizable settings for decay duration. The auto power-off function conserves battery life. An angled stem and storage bag are included for convenient handling.

• Utilizes a Pirani sensor for vacuum range from 0 to 25000 microns.
• Large, backlit digital display provides visual data.
• Audible alerts for monitoring vacuum levels and detecting leaks.

Product Highlights

Reliable and accurate vacuum measurements for HVAC applications.

Product Information

Standard Information

• Brand: NAVAC
• MPN: NAVAC-NMV1S

Technical Specifications

• Accuracy: 15-1000 microns ±5% of reading (at 68°F)
• Temperature Rating: 32 to 122 degrees Fahrenheit
• Model: NMV1S
• Maximum Pressure: 500 psi (34.5 bar)
• Range: 0-25000 microns, 0-3300 Pa, 0-33.3 mBar, 0-25 mmHg
• Resolution: 0.01 micron (<10 microns), 0.01 Pa (<10 Pa), 0.001 mBar, 0.001 mmHg
• Operating Temperature: 32-122°F (0-50°C)
• Units: Pa, mBar, mmHg, Microns
• Sensor: Pirani sensor
• Battery: 2000mAh Li-ion
• Weight: 6.2 oz
• Accessory: Angled stem, storage bag
• Warranty: 1 year
• Maximum Overload Pressure: 500 psi
