NAVAC NAVAC-NEVK3 NAVAC NEVK3 Pro Plus Rapid Evacuation Kit

Product Description

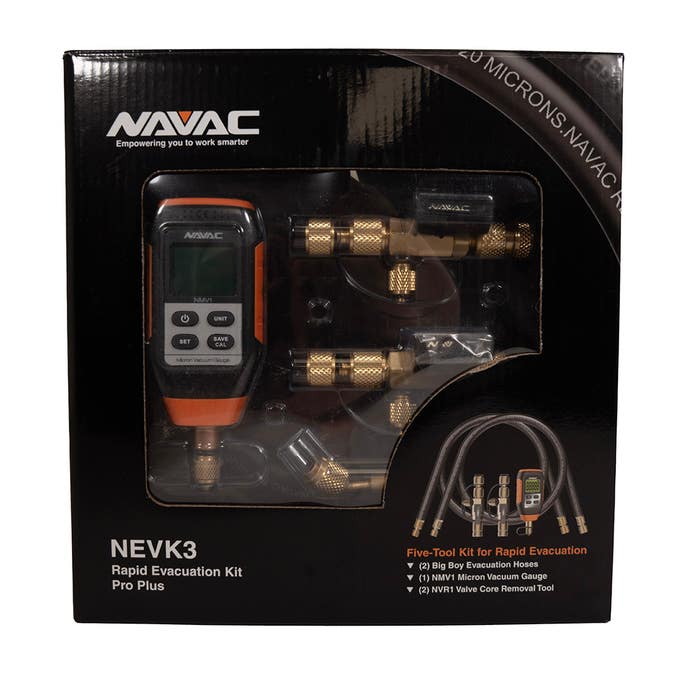

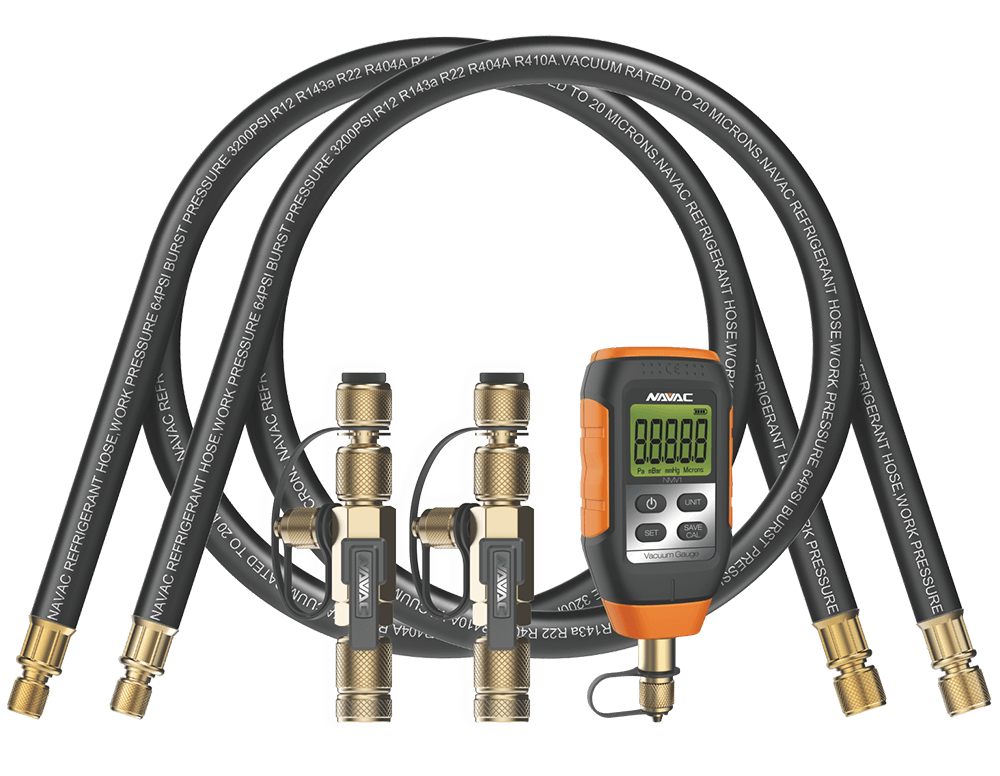

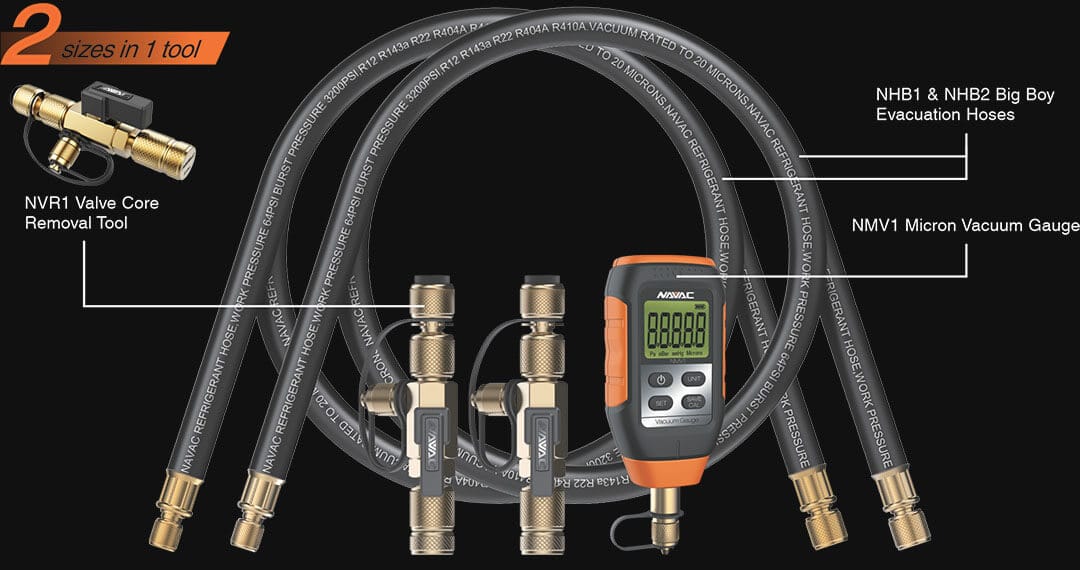

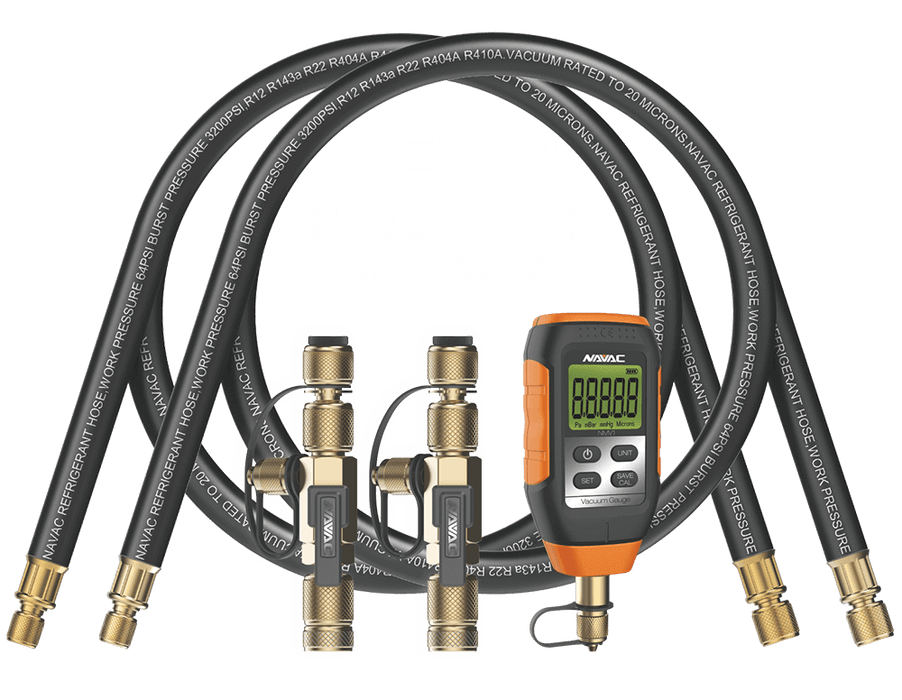

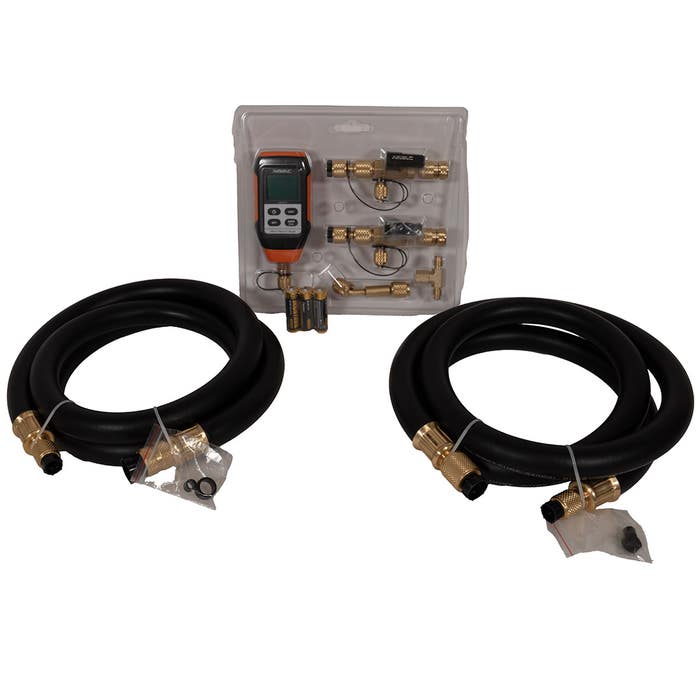

The NAVAC NEVK3 Pro Plus Rapid Evacuation Kit features essential tools for HVAC professionals. It includes the NHB1 and NHB2 Big Boy High-Flow Evacuation Hoses, the NMV1 Micron Vacuum Gauge, and two NVR1 Valve Core Removal Tools.

• Includes NHB1 and NHB2 Big Boy High-Flow Evacuation Hoses, NMV1 Micron Vacuum Gauge, and two NVR1 Valve Core Removal Tools.
• Big Boy High-Flow Evacuation Hoses with 1/2-inch diameter and six feet length, vacuum rated to twenty microns.
• NMV1 Micron Vacuum Gauge features a Pirani sensor, backlit display, and audible alert for vacuum level changes.

Product Highlights

This kit is designed for quick and efficient evacuation for HVAC applications.

Product Information

Standard Information

• Brand: NAVAC
• MPN: NAVAC-NEVK3

Technical Specifications

• Hose Fittings (NHB1): 3/8 in. to 1/4 in.
• Hose Fittings (NHB2): 1/2 in. to 1/4 in.
• Vacuum Rated: to 20 microns
• NHB1/NHB2 Hose Diameter: 1/2 in.
• NHB1/NHB2 Hose Burst Pressure: 3200 psi
• NHB1/NHB2 Hose Working Pressure: 640 psi
• NHB1/NHB2 Hose Length: 6 ft.
• NMV1 Vacuum Gauge Sensor: Pirani sensor
• NMV1 Maximum Overload Pressure: 72 psi
• NMV1 Vacuum Gauge Range: 0 to 75,000 microns
• NMV1 Units: Microns, Pa, mBar, mmHg
• NVR1 Valve Core Tool: Compatible with high-pressure refrigerants such as R-410a
• NVR1 Fittings: 1/4 in. and 5/16 in. flare fittings
• Buzzer Alarm: 90 db
• Operating Temperature: 32 to 122 °F
• Weight: 4.5 oz
• Warranty: 1 year
