Product Description

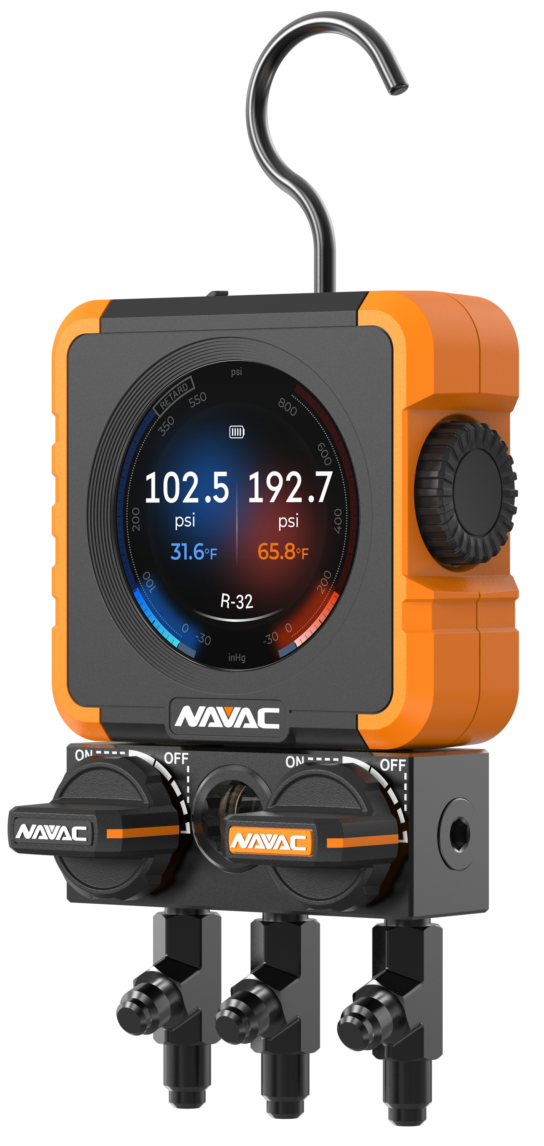

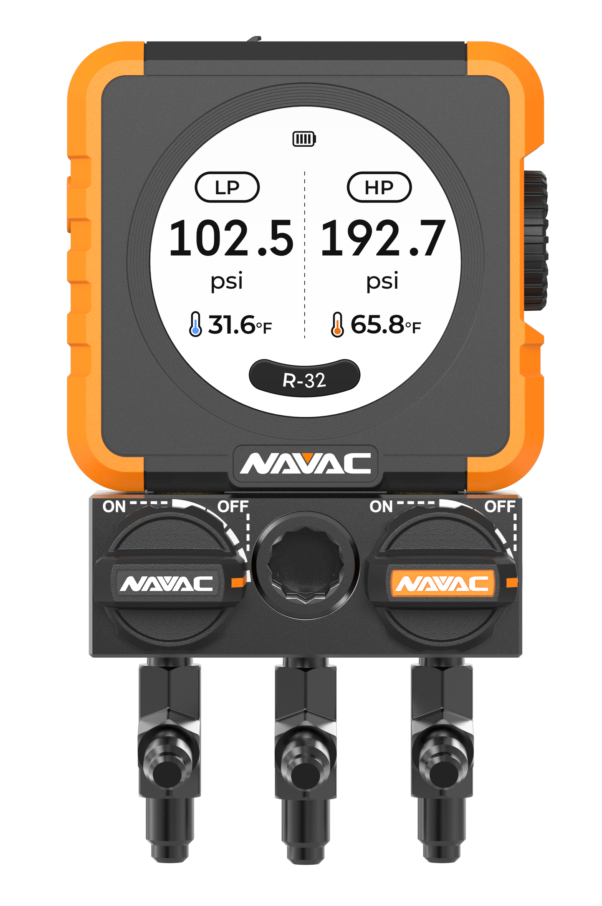

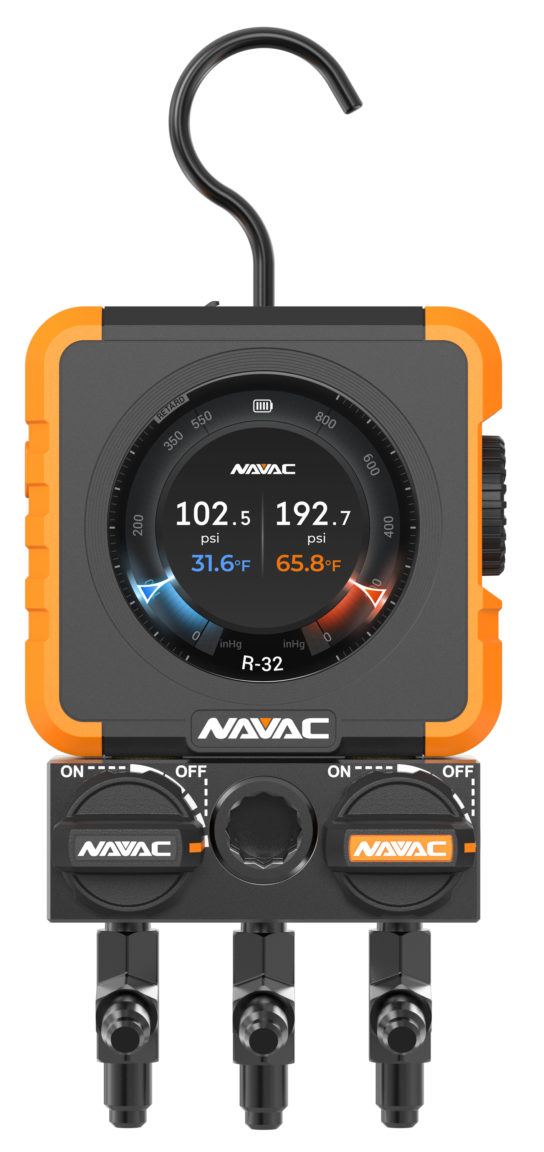

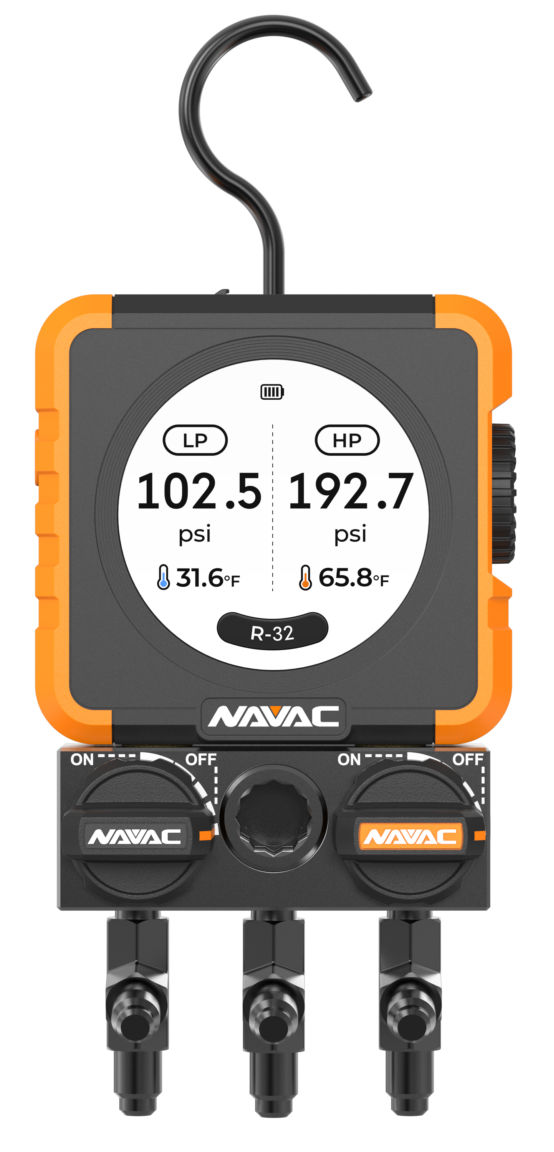

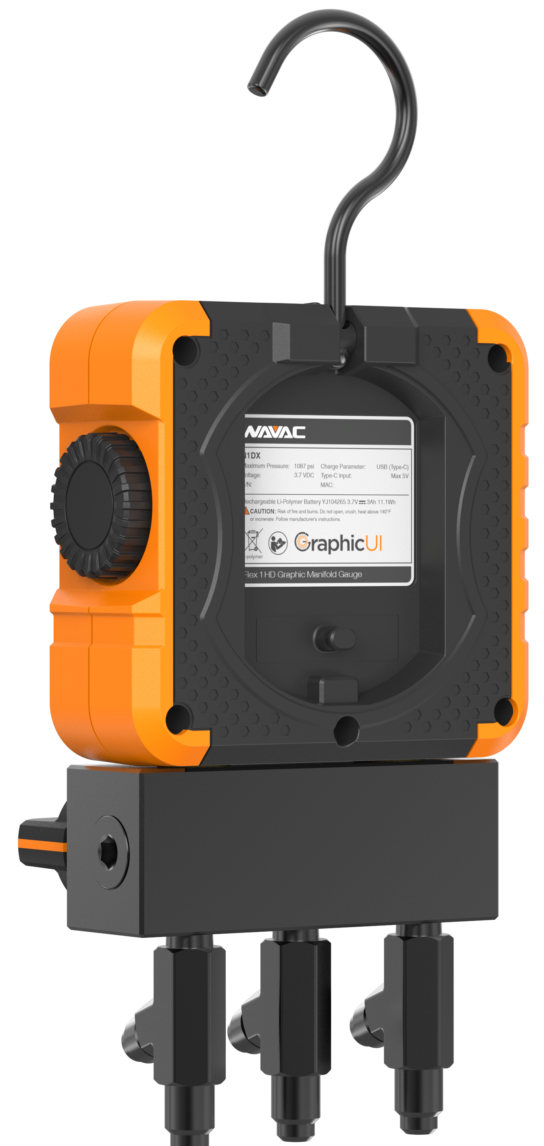

The NAVAC N1DX Flex 1 Manifold Gauge with HD Color Graphic Interface delivers digital performance in a compact, palm-sized design. The HD color graphic display provides clarity and intuitive data presentation. Designed to replace multiple analog gauges, Flex 1 supports a wide range of refrigerants. It features Class 0.4 accuracy, fast real-time response, and a rugged aluminum body with an impact-resistant rubber cover.
- HD Color Graphic Interface for enhanced visuals
- Supports a wide range of refrigerants
- Rugged aluminum body with impact-resistant rubber cover
Product Highlights
The Flex 1 is a durable, user-friendly solution for technicians, offering modern digital capability without added complexity.
Product Information
Standard Information
-
Brand: NAVAC
-
Manufacturer Part Number: N1DX
Technical Specifications
-
Refrigerant Type: R11, R113, R114, R115, R116, R12, R1224yd(Z), R123, R1233zd, R1233zd(E), R1234yf, R1234ze, R1234ze(E), R1234ze(Z), R124, R1243zf, R125, R13, R134a, R1409A, R22, R23, R236fa, R245fa, R290, R32, R401A, R401B, R401C, R402A, R402B, R403A, R403B, R404A, R405A, R406A, R407A, R407B, R407C, R407D, R408A, R41, R410A, R410B, R411A, R411B, R412A, R413A, R414A, R414B, R415A, R415B, R416A, R417A, R417C, R420A, R421A, R421B, R422A, R422B, R422C, R422D, R424A, R427A, R428A, R434A, R437A, R438A, R447A, R447B, R448A, R449A, R450A, R451A, R451B, R452A, R452B, R452C, R453A, R454A, R454B, R454C, R455A, R456A, R458A, R459A, R459B, R460A, R460B, R500, R501, R502, R503, R507A, R508B, R513A, R600, R600a, R601, R601A
-
Pressure Range: -29.0 inHg to 720 psi
-
Power Supply: Rechargeable 3000mAh Lithium Battery, Type-C charing port
-
Accessory: Storage Bag
