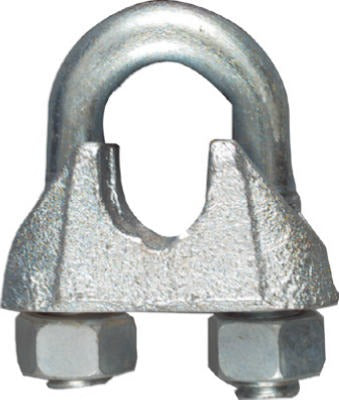

National Mfg N100-259 Wire Rope Clamp 1/8 Inches

Product Description

The NATIONAL MFG/SPECTRUM BRANDS HHI N100-259 is a 1/8 inch wire rope clamp designed for forming secure eyes and loops on wire rope. The assembly uses a steel U-bolt and hex nuts that clamp against a malleable iron saddle, delivering maximum holding strength at the connection point. This clamp meets the torque requirements of Federal Specifications FF-C-450D, Type 1, Class 2. The U-bolt and hex nuts are included in the package. Installers in rigging, construction, and general trade applications use this clamp wherever a reliable wire rope termination or anchoring point is required.

This wire rope clamp is suited for residential and light commercial applications where wire rope must be looped, terminated, or anchored. Typical uses include securing wire rope to a fixed structure, creating load-bearing eyes, or serving as an anchoring point for webbing or strap assemblies. The 1/8 inch rope size designation applies to the wire rope diameter this clamp is rated to grip. This package contains 150 individual clamps, making it appropriate for contractors and service technicians who install wire rope assemblies in volume.

Key Features

• Steel U-bolt and hex nuts provide maximum clamping strength against malleable iron saddle
• Meets Federal Specifications FF-C-450D, Type 1, Class 2 torque requirements
• Designed for forming eyes and loops on 1/8 inch wire rope
• U-bolt and hex nuts included — no additional hardware required
• Package quantity of 150 clamps suits high-volume installation work
• Limited Lifetime Warranty from National Hardware

Compatibility

Designed as an OEM-style replacement and standard-duty wire rope clamp for 1/8 inch wire rope applications in rigging and general construction use.

Installation Notes

Always de-tension the wire rope and secure the work area before installing wire rope clamps. Follow the applicable wire rope manufacturer guidelines and Federal Specification FF-C-450D requirements for the correct number of clamps per loop based on wire rope diameter. Tighten hex nuts evenly to the torque value specified by the applicable federal standard. Inspect clamps after initial loading and re-torque as needed per standard rigging practice.
