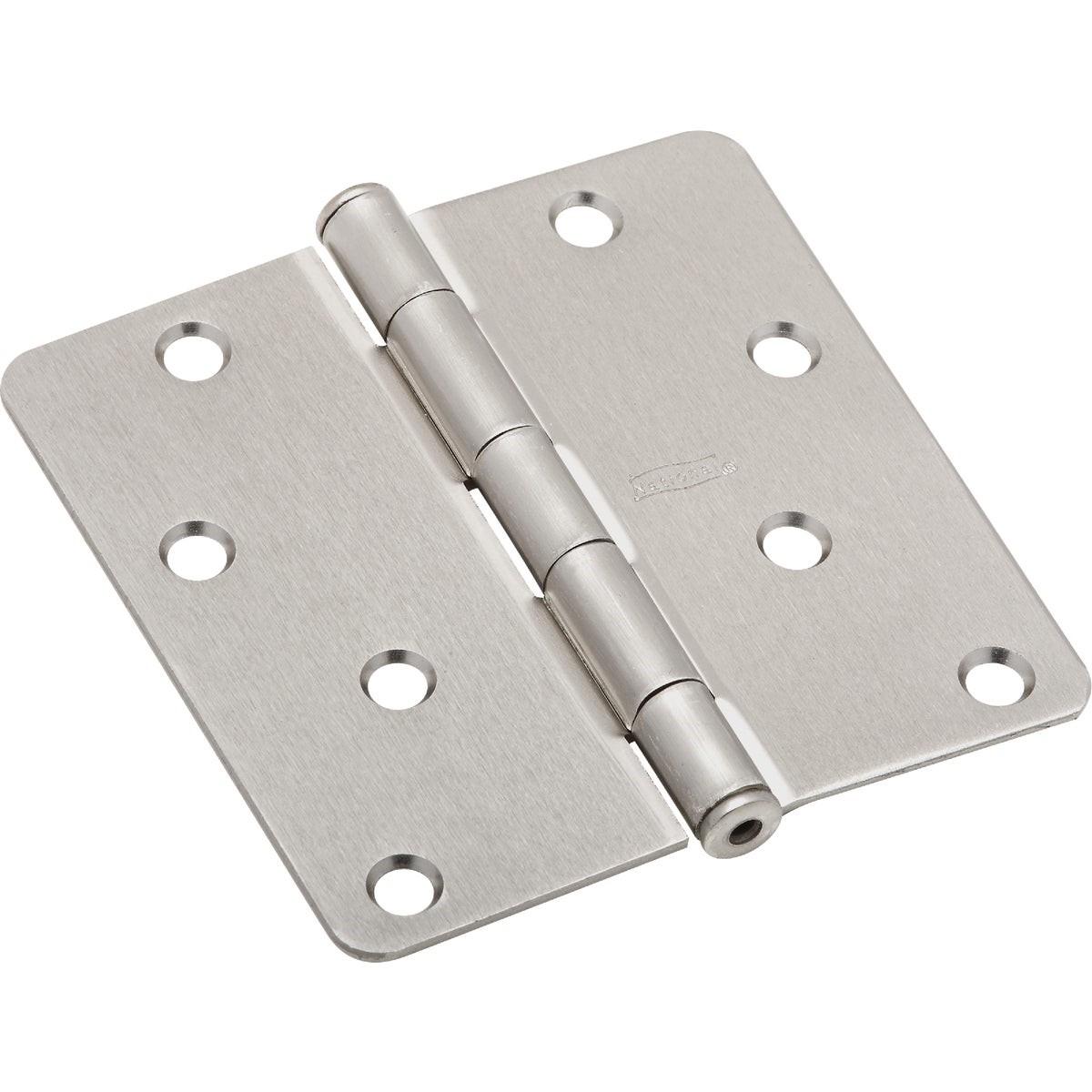

National Marker N830-246 Door Hinge 4 Inch Satin Nickel

Product Description

The NATIONAL MARKER N830-246 is a 4-inch round-corner residential door hinge finished in satin nickel. Built from steel, it features a 1/4-inch corner radius and a removable pin that simplifies installation and removal. Mounting screws are included. This hinge is intended for interior residential door applications where a clean, low-profile corner profile is required. It ships as a single unit and is suited for standard door frame installations by carpenters, general contractors, or experienced DIYers working on interior finish carpentry.

This hinge is designed for interior residential door installations. Its round corner profile and satin nickel finish make it a common choice for passage doors, closet doors, and bedroom doors in new construction and remodel projects. The removable pin design allows the door to be lifted off the frame without removing the hinge plates, which is useful during hanging and fitting operations. Mounting hardware is included, reducing the need for additional fasteners on the job.

Key Features

• 4-inch leaf size suited for standard interior residential doors
• 1/4-inch round corner radius for flush mortise installation
• Satin nickel finish for a clean, neutral appearance
• Removable pin design for easy door removal and reinstallation
• Steel construction for durability under normal interior door loads
• Mounting screws included

Compatibility

Designed as an OEM-style replacement or new-installation hinge for standard interior residential doors requiring a 4-inch round-corner hinge plate with a 1/4-inch radius.

Installation Notes

Installation is typically performed by a carpenter or finish contractor as part of interior door hanging. Mortise the hinge location to the correct depth before fastening to ensure the leaf sits flush with the door and jamb surfaces. Use a drill or screwdriver appropriate for the included fasteners, and verify door alignment before fully seating all screws. Remove the pin only after both leaves are secured to simplify door positioning during the hang.

Technical Specifications

• Hinge Size: 4 inches
• Corner Radius: 1/4 inch
• Finish: Satin Nickel
• Material: Steel
• Pin Type: Removable
• Weight: 0.55 pounds
• Unit of Measure: Each

Standard Information

• Brand: NATIONAL MARKER
• Manufacturer Part Number: N830-246
