National Marker N343079 Bypass Door Hardware 60 in

Product Description

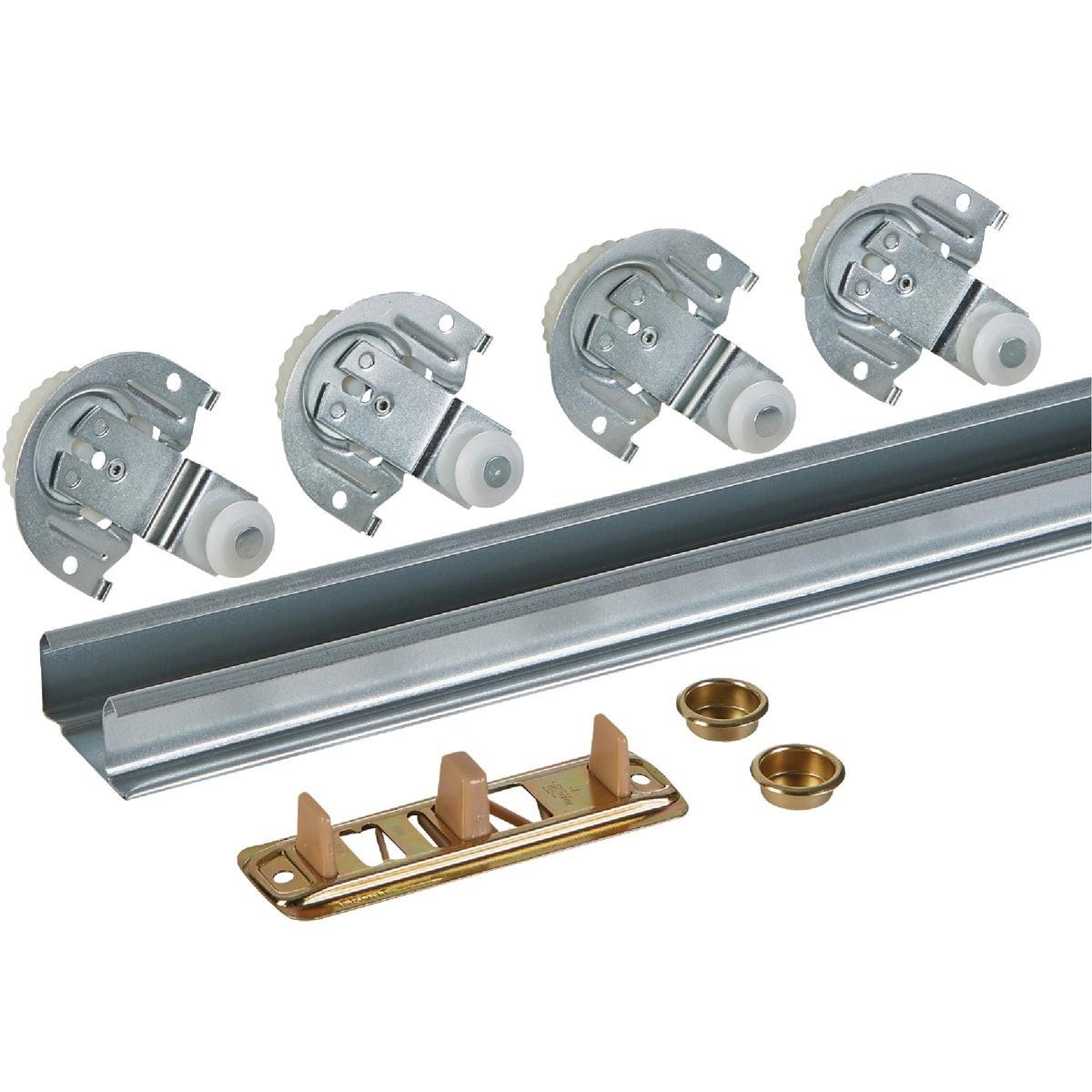

The NATIONAL MARKER N343079 is a nonfacia bypassing door hardware set designed for hollow core doors up to 48 inches wide and between 3/4 inch and 1-3/8 inches thick. The set includes a 60-inch steel track with a galvanized finish, one pair of adjustable cam-action dial hangers, one door guide, and all necessary screws. The cam-action hangers allow doors to be hung or removed without taking the hangers off the track first, which simplifies installation and door removal during service or renovation work. Minimum required headroom is 1-1/8 inches. This hardware is suited for interior residential and light commercial applications where space-saving sliding door configurations are needed.

This bypass door hardware set is intended for use with hollow core interior doors in residential or light commercial construction. It is a practical solution for closets, laundry rooms, and other areas where swinging doors are not practical due to space constraints. The nonfacia design keeps the track flush and unobtrusive. The galvanized steel track provides corrosion resistance suitable for interior environments with moderate humidity exposure.

Key Features

• Nonfacia design keeps track low-profile and unobtrusive at the door opening
• Fits doors 3/4 inch to 1-3/8 inches thick and up to 48 inches wide
• 60-inch galvanized steel track included in set
• Adjustable cam-action dial hangers allow tool-free door hanging and removal
• Requires only 1-1/8 inches of headroom above the door opening
• Complete kit includes track, one pair of hangers, one door guide, and mounting screws

Compatibility

Designed for use with hollow core interior bypass doors up to 48 inches wide and 3/4 inch to 1-3/8 inches thick. Not intended for solid core, exterior, or fire-rated door assemblies.

Installation Notes

Installation is typically performed by a carpenter or general contractor following standard interior door hardware practices. Power down any nearby electrical circuits before drilling into walls or door frames if wiring is suspected in the installation area. Verify that the header framing above the opening provides adequate structural support for the track before fastening. Follow all applicable local building codes for interior door hardware installation.

Technical Specifications

• Track Length: 60 inches
• Compatible Door Thickness: 3/4 inch to 1-3/8 inches
• Maximum Door Width: 48 inches
• Door Type: Hollow core
• Required Headroom: 1-1/8 inches
• Track Material: Steel, galvanized finish
• Hanger Type: Adjustable cam-action dial
• Set Contents: Track, 1 pair hangers, 1 door guide, mounting screws
• Weight: 3.417 pounds
• UPC: 00038613343078

Standard Information

• Brand: NATIONAL MARKER
• Manufacturer Part Number: N343079
