National Marker N266932 Stainless Steel Continuous Hinge

Product Description

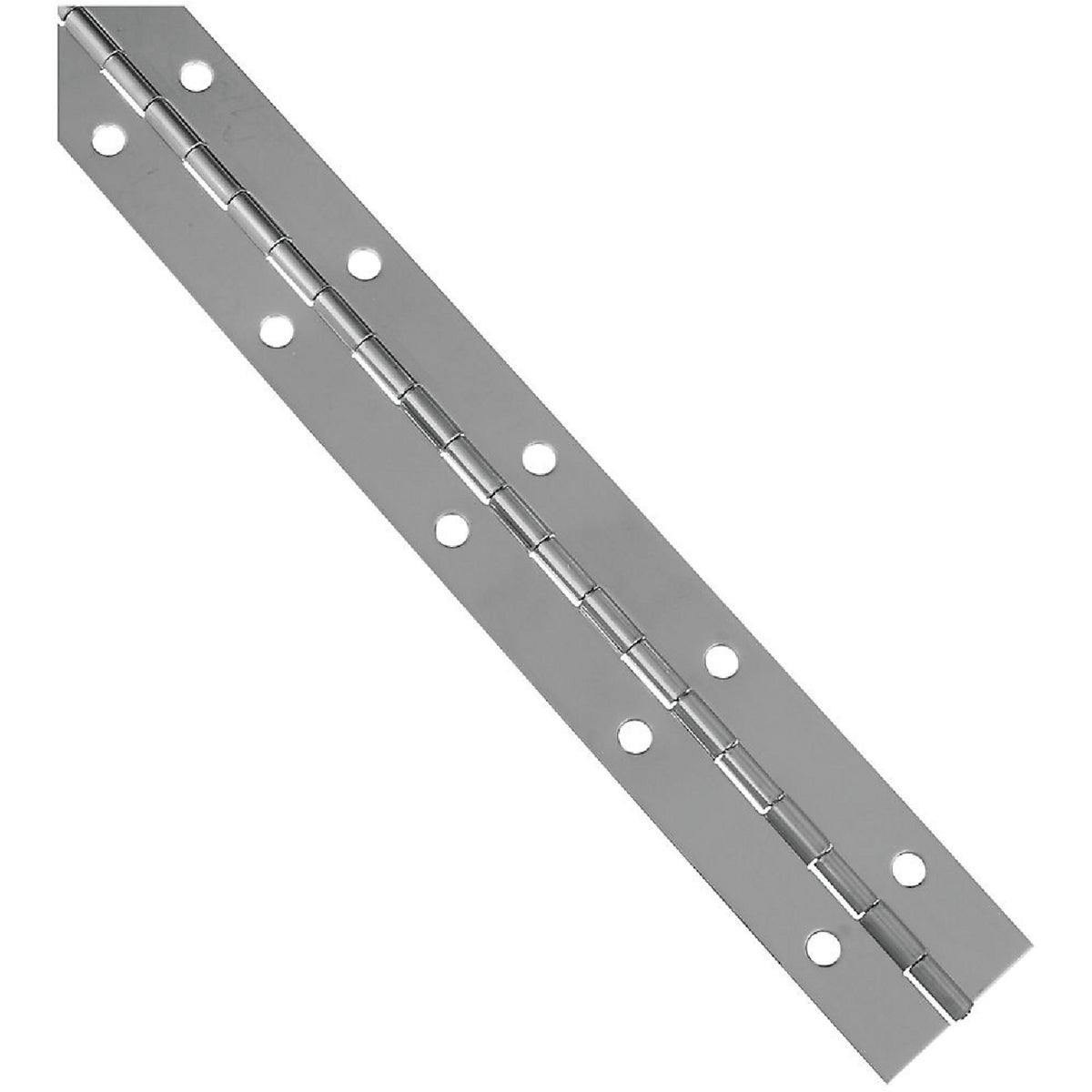

The NATIONAL MARKER N266932 is a continuous piano hinge constructed from 304 bright annealed stainless steel. Part of the V571 series, it measures 1.5 inches wide by 12 inches long and can be cut to any desired length for a custom fit. The stainless steel friction pin is retained securely and will not fall out during operation. Screw holes are spaced 2 inches apart, providing consistent fastening points along the full length. The 304 stainless steel construction resists rust and corrosion, making it suitable for demanding environments. This hinge is typically installed by carpenters, millwrights, cabinet makers, or general contractors.

The N266932 is designed for use on tool sheds, cabinets, folding tables, chests, and marine applications where corrosion resistance is critical. Its full-length continuous design distributes load evenly across the entire hinge line rather than at isolated pivot points, making it well suited for heavier doors, lids, and panels. The package includes stainless steel screws. This hinge is not approved for use in food service industry applications.

Key Features

• 304 bright annealed stainless steel construction resists rust and corrosion
• Cuttable to any desired length for custom installation
• Retained stainless steel friction pin will not fall out
• Screw holes spaced 2 inches apart for uniform fastening
• Suitable for marine and outdoor environments
• Includes stainless steel screws

Compatibility

Part of the V571 series. Designed for use on tool sheds, cabinets, folding tables, chests, and marine applications. Not for use in food service industry applications.

Installation Notes

Install using the included stainless steel screws or equivalent corrosion-resistant fasteners. If cutting to a shorter length, use a fine-tooth metal saw or tin snips and deburr all cut edges before installation. Ensure mounting surfaces are clean, flat, and structurally sound before fastening. Follow all applicable local building codes for the specific application.

Technical Specifications

• Width: 1.5 inches
• Length: 12 inches
• Material: 304 bright annealed stainless steel
• Screw Hole Spacing: 2 inches apart
• Weight: 0.395 pounds
• Series: V571
• Unit of Measure: Pack
• Minimum Order Quantity: 1

Standard Information

• Brand: NATIONAL MARKER
• Manufacturer Part Number: N266932
