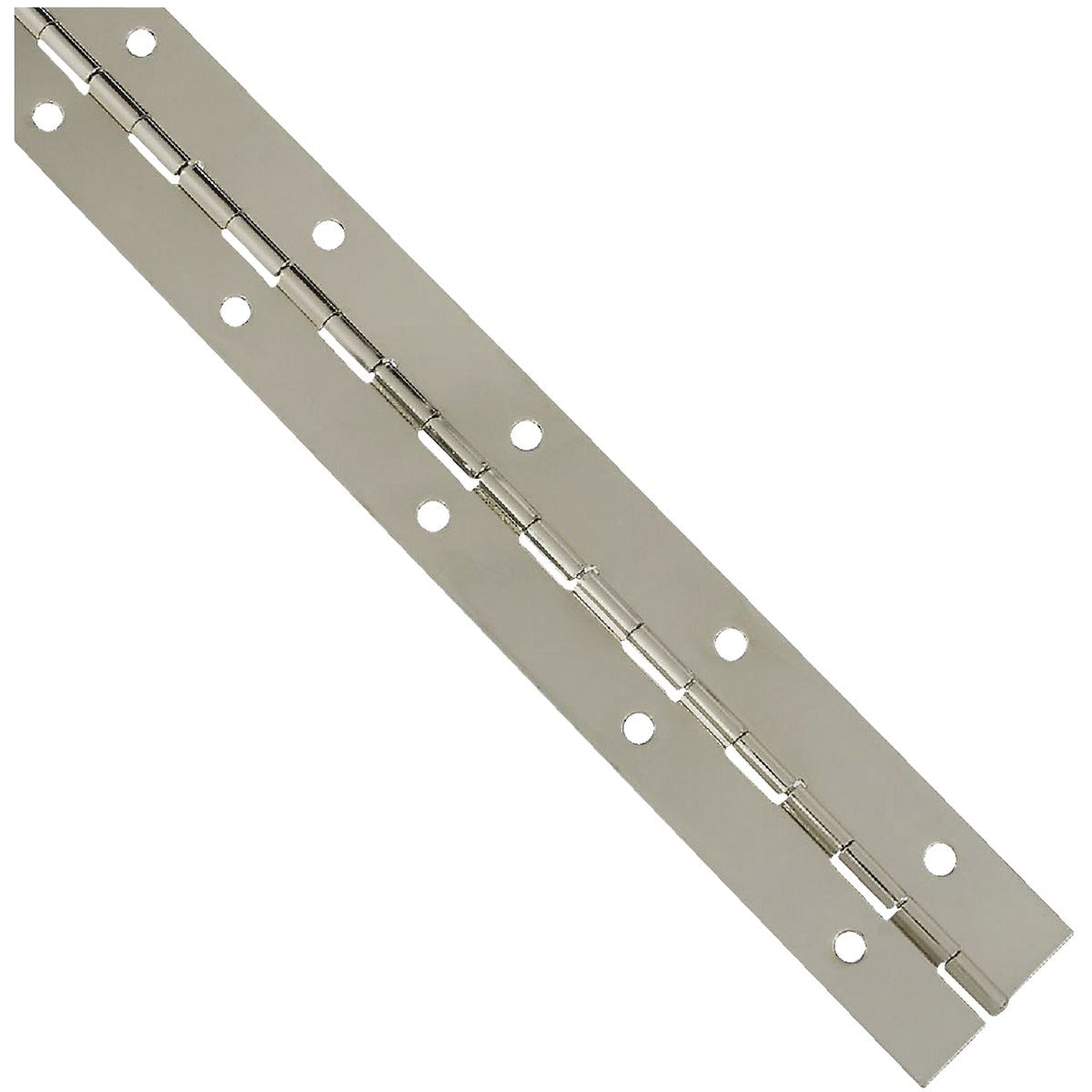

National Marker N265389 Continuous Hinge 1.5x12 in Steel

Product Description

The NATIONAL MARKER N265389 is a steel continuous hinge measuring 1.5 inches wide by 12 inches long, part of the V570 series. It is designed for light-duty applications including tool chests, cabinets, folding tables, and hobby projects. The hinge features an electrofilm-coated pin with a 0.090-inch diameter that resists rust and will not fall out when the hinge is cut to a shorter length. Screw holes are spaced 2 inches apart, and the hinge ships with Phillips flat No. 4 x 0.5-inch screws included. Constructed from 0.042-gauge steel, this hinge suits general-purpose hardware installations where a trimable, corrosion-resistant pivot point is needed.

This continuous hinge is suited for residential and light commercial applications where a piano-style hinge is needed along the full length of a door, lid, or panel. Typical install scenarios include tool chest lids, cabinet doors, folding table frames, and craft or hobby project enclosures. Because the friction pin is retained during cutting, the hinge can be trimmed on-site with standard metalworking tools to match any required length without disassembly.

Key Features

• Electrofilm-coated pin resists rust for extended service life
• Pin will not fall out when hinge is cut to a custom length
• Screw holes spaced 2 inches apart for consistent fastener layout
• Includes Phillips flat No. 4 x 0.5-inch mounting screws
• 0.042-gauge steel construction provides consistent rigidity
• Part of the V570 series for standardized replacement and sourcing

Compatibility

Designed as an OEM-style replacement or new-installation hinge for tool chests, cabinets, folding tables, and light-duty hobby project enclosures requiring a continuous piano-style hinge.

Installation Notes

Installation is typically performed by a general contractor, cabinetmaker, or skilled tradesperson using standard hand tools. Align the hinge leaf along the full length of the mating surfaces before fastening to ensure even load distribution. Use the included No. 4 Phillips flat-head screws and pre-drill pilot holes to prevent wood splitting or sheet-metal distortion. If cutting the hinge to length, use a metal-cutting blade and deburr the cut end before installation.

Technical Specifications

• Width: 1.5 inches
• Length: 12 inches
• Gauge: 0.042
• Pin Diameter: 0.090 inches
• Screw Hole Spacing: 2 inches
• Included Hardware: Phillips flat No. 4 x 0.5 inches screws
• Material: Steel
• Pin Coating: Electrofilm
• Weight: 0.26 pounds
• Series: V570
• UOM: Each

Standard Information

• Brand: NATIONAL MARKER
• Manufacturer Part Number: N265389
