National Marker N245183 Galvanized Eye Bolt 0.5x10 in

Product Description

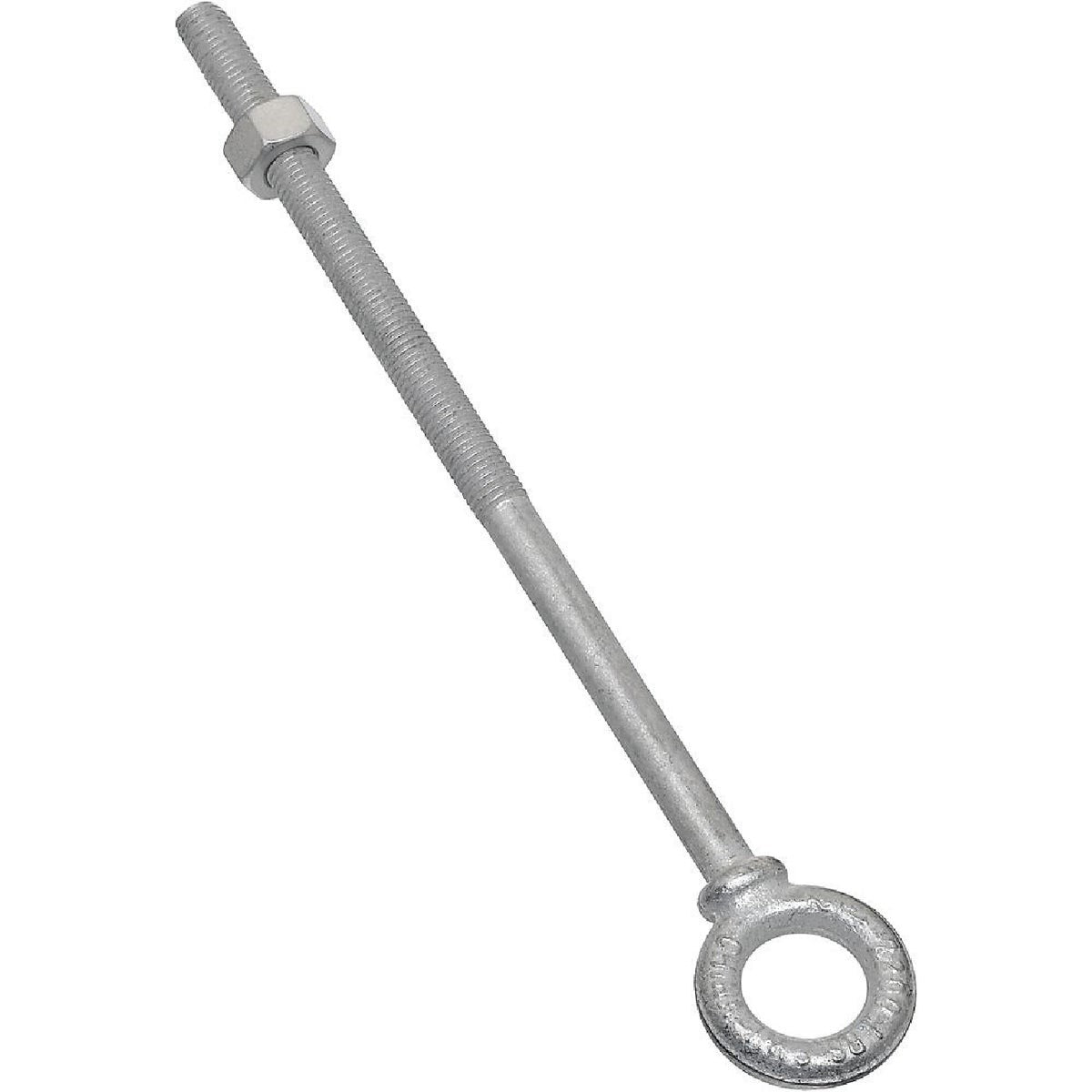

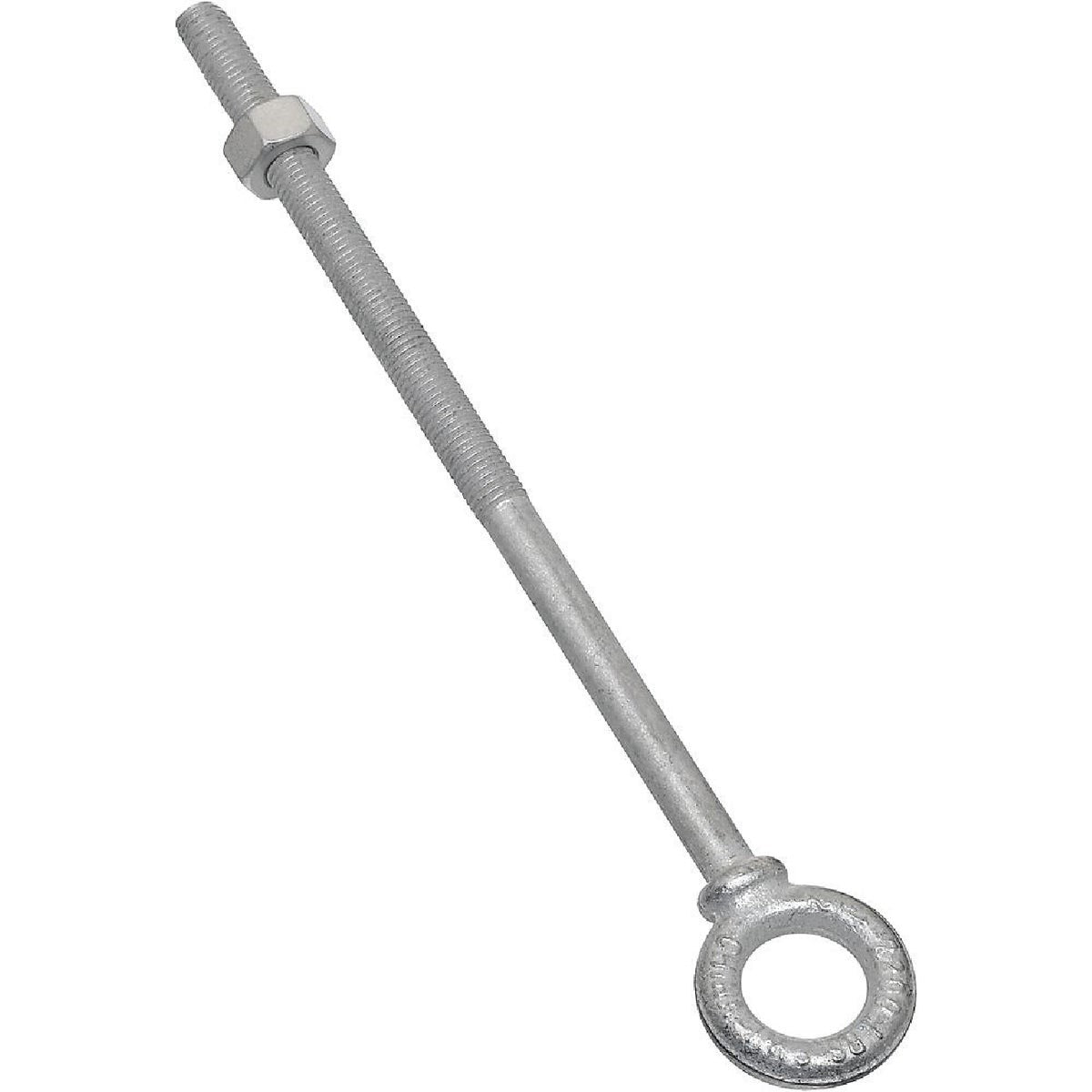

The NATIONAL MARKER N245183 is a forged galvanized eye bolt designed for rigging and lifting applications where a secure, load-rated anchor point is required. Part of the catalog 3260BC series, this shoulder-style eye bolt can be fully tightened in place, ensuring a stable mount under load. The machine screw threads pair with an assembled hex nut for positive fastening. A color-coded bar code label identifies wire size, and the Safe Working Load (SWL) is clearly printed on the label for quick reference at the job site. Weighing 0.726 pounds, it is sized at 0.5 inches diameter by 10 inches length.

This eye bolt is suited for residential and light commercial rigging, lifting, and tie-down tasks. The shoulder design makes it appropriate for angular loading applications where a standard non-shoulder eye bolt would not be rated. The pintle-punched eye accepts a 5/16 inch bolt for the 0.5 inch size variant. Electricians, riggers, millwrights, and general contractors commonly use shoulder eye bolts when securing overhead loads, running cable supports, or anchoring equipment to structural members.

Key Features

• Shoulder design allows full tightening in place and supports angled loading
• Forged steel construction with galvanized finish for corrosion resistance
• Machine screw threads with hex nut included and pre-assembled
• Pintle punched to accept 5/16 inch bolt for positive locking
• Color-coded bar code label identifies wire size for quick sorting
• SWL (Safe Working Load) clearly marked on label

Compatibility

Designed as a direct-fit shoulder eye bolt in the NATIONAL MARKER 3260BC series. Suitable for use with standard machine screw thread hardware and rigging accessories sized for a 0.5 inch diameter eye bolt.

Installation Notes

Installation should be performed by a qualified rigger or tradesperson familiar with load-rated hardware and applicable ASME B30 or OSHA rigging standards. Ensure the mounting surface material and thickness are rated to handle the intended load before installing. Tighten the hex nut fully so the shoulder seats flush against the mounting surface before applying any load. Never exceed the rated SWL printed on the label, and inspect the eye bolt for deformation or corrosion before each use.

Technical Specifications

• Diameter: 0.5 inches
• Length: 10 inches
• Weight: 0.726 pounds
• Material: Forged Steel
• Finish: Galvanized
• Thread Type: Machine Screw
• Pintle Punch Size: 5/16 inches
• Hardware Included: Hex Nut
• Series: 3260BC
• UOM: Each

Standard Information

• Brand: NATIONAL MARKER
• Manufacturer Part Number: N245183
