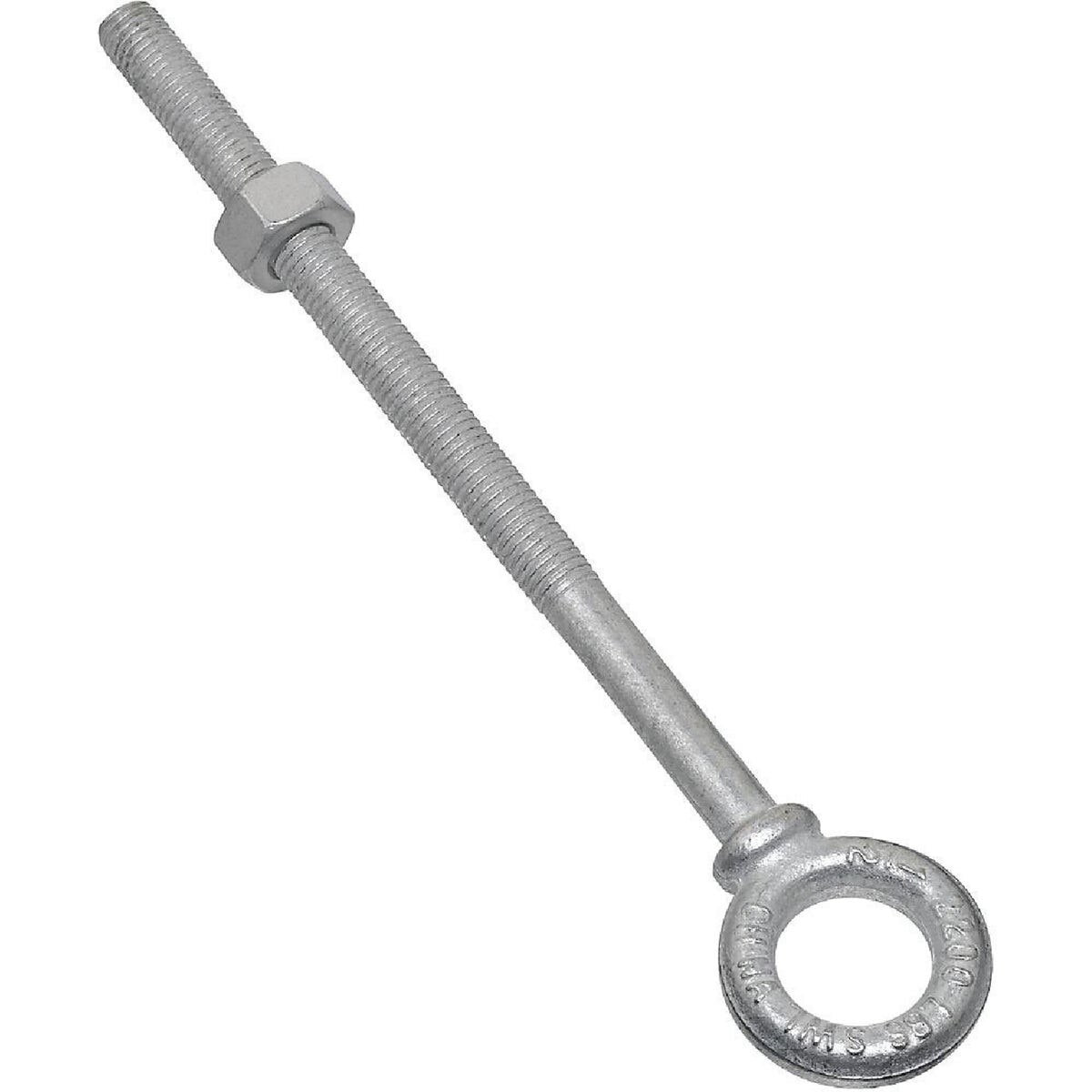

National Marker N245175 Galvanized Eye Bolt 1/2 X 8 in

Product Description

The NATIONAL MARKER N245175 is a forged galvanized eye bolt designed for overhead lifting and rigging applications in industrial and commercial settings. Built from forged steel with machine screw threads, the bolt measures 0.5 inches in diameter and 8 inches in length. It features a shoulder design that allows the bolt to be tightened securely in place, preventing rotation under load. A hex nut is assembled to the bolt from the factory. The label clearly displays the Safe Working Load (SWL) and is color coded for quick wire size identification. The bolt is pintle punched for 5/16 inch fasteners on the 0.5 inch size.

This eye bolt is suited for rigging, hoisting, and tie-down applications in manufacturing facilities, construction sites, warehouses, and maintenance environments. It is part of the catalog model 3260BC series. Licensed riggers, millwrights, and maintenance mechanics commonly install this type of hardware where a secure, load-rated anchor point is required. The shoulder design makes it appropriate for angular loading conditions compared to a plain shank eye bolt.

Key Features

• Forged steel construction for high tensile strength and reliable load capacity
• Hot-dip galvanized finish provides corrosion resistance in demanding environments
• Shoulder design allows tightening in place and supports angular loading
• Pintle punched for 5/16 inch bolts on the 0.5 inch diameter size
• Color-coded label identifies wire size; SWL clearly marked
• Hex nut included and pre-assembled on the threaded shank

Compatibility

Designed as an OEM-style replacement or direct-install shoulder eye bolt for rigging and lifting applications requiring a 0.5 inch diameter by 8 inch galvanized forged eye bolt with assembled hex nut.

Installation Notes

Installation should be performed by a qualified rigger or mechanic familiar with applicable ASME B30 rigging standards. Before installing, verify that the mounting surface or structure is rated to support the intended load including any applicable safety factor. Thread engagement should be sufficient to fully seat the shoulder against the mounting surface before applying load. Never exceed the stated Safe Working Load printed on the label.

Technical Specifications

• Diameter: 0.5 inches
• Length: 8 inches
• Material: Forged Steel
• Finish: Galvanized
• Thread Type: Machine Screw
• Includes: Hex Nut (pre-assembled)
• Pintle Punch Size: 5/16 inches
• Weight: 0.628 pounds
• Series: 3260BC
• Unit of Measure: Each

Standard Information

• Brand: NATIONAL MARKER
• Manufacturer Part Number: N245175
