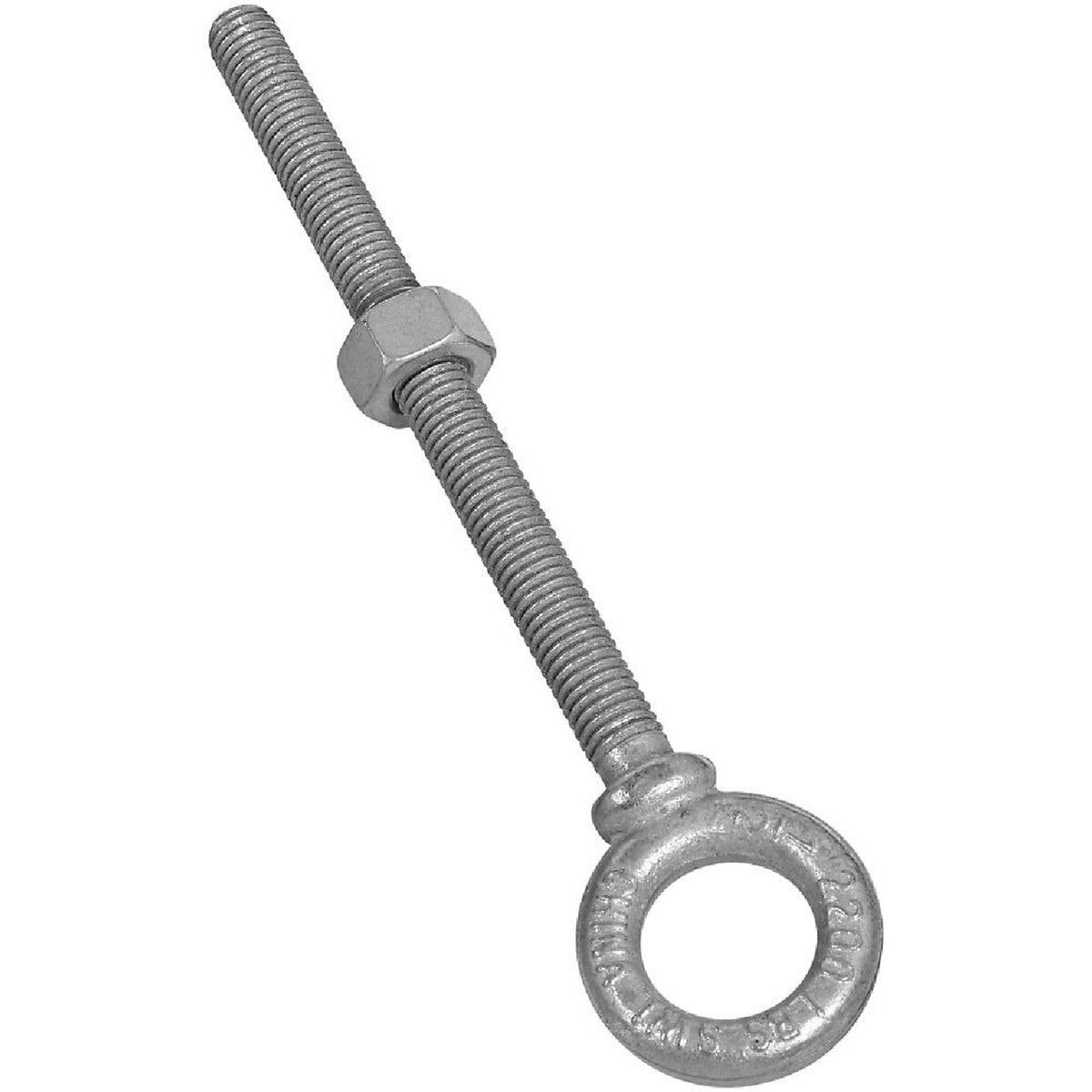

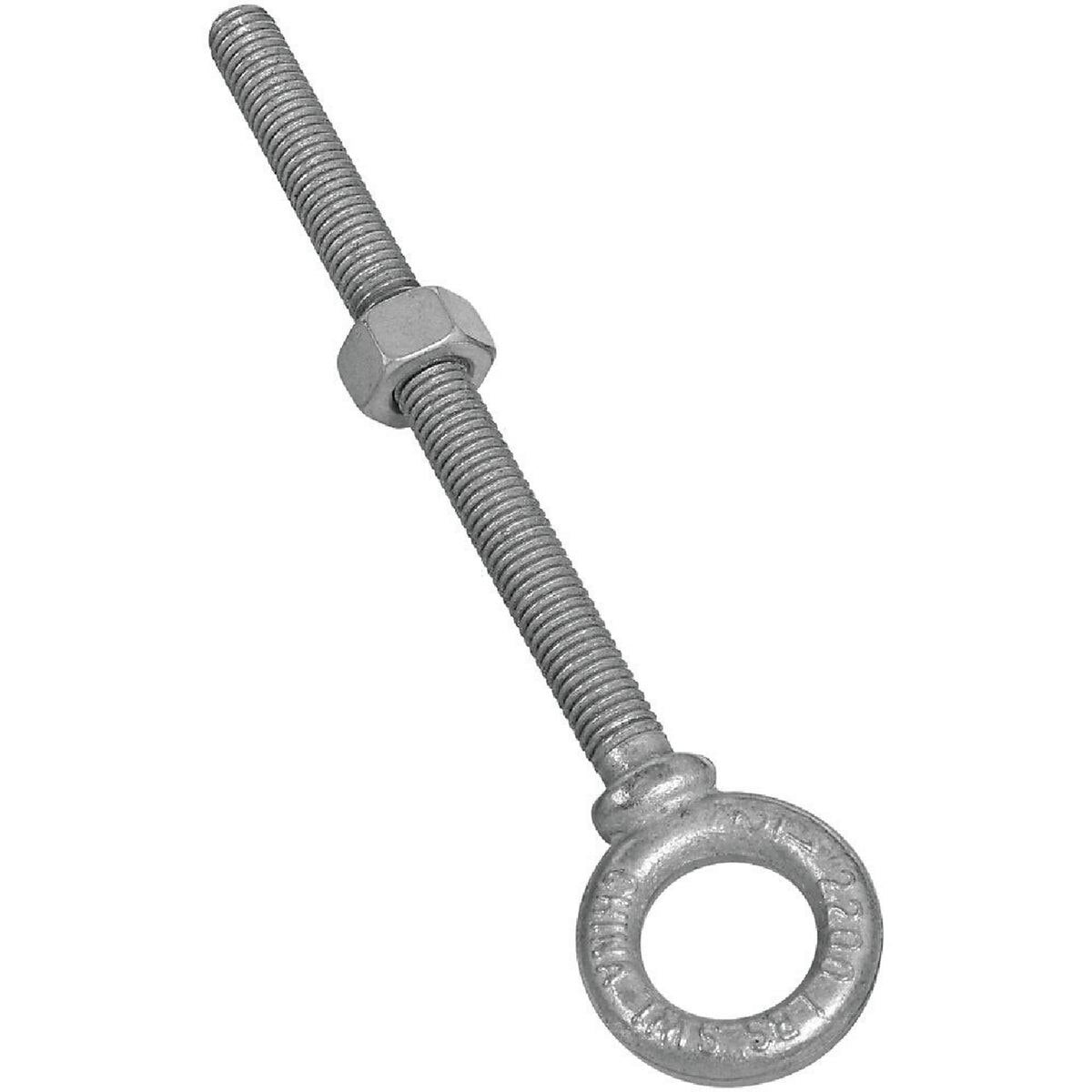

National Marker N245167 Galvanized Eye Bolt 0.5x6 in Hex Nut

Product Description

The NATIONAL MARKER N245167 is a forged galvanized eye bolt in the 3260BC catalog series, measuring 0.5 inches in diameter by 6 inches in length. Built from forged steel with machine screw threads, it ships with a hex nut assembled and ready for installation. A shoulder design allows the bolt to be tightened firmly in place, which is critical for load-bearing applications. The bar code label is color coded by wire size, and the safe working load (SWL) rating is clearly printed on the label, eliminating guesswork in the field. Pintle punched for 5/16-inch bolts at the 0.5-inch size.

This eye bolt is suited for rigging, lifting, and tie-down applications in both residential and light commercial settings. It is a standard hardware item installed by electricians, rigging crews, mechanical contractors, and maintenance technicians when a secure, load-rated anchor point is required. The galvanized finish provides corrosion resistance for installations in damp or outdoor-exposed environments.

Key Features

• Forged steel construction for high-strength load-bearing performance
• Hot-dip galvanized finish resists corrosion in wet or outdoor conditions
• Shouldered design allows the bolt to seat and tighten firmly against a surface
• Pintle punched for 5/16-inch bolt at this 0.5-inch size
• SWL rating clearly labeled for quick field identification
• Color-coded bar code label identifies wire size at a glance
• Hex nut included and pre-assembled

Compatibility

Designed as an OEM-style replacement or standard hardware component compatible with general rigging and anchor-point applications requiring a 0.5-inch by 6-inch shouldered eye bolt.

Installation Notes

Installation should be performed by a qualified rigger or licensed contractor familiar with applicable load-rating and fastener standards. Ensure the mating surface is structurally sound and that the bolt is fully shouldered and tightened before applying any load. Never exceed the labeled safe working load. Inspect the eye and threads for damage before each use.

Technical Specifications

• Bolt Diameter: 0.5 inches
• Bolt Length: 6 inches
• Material: Forged Steel
• Finish: Galvanized
• Thread Type: Machine Screw
• Pintle Punch Size: 5/16 inches
• Includes: Hex Nut Assembled
• Weight: 0.062 pounds
• Catalog Series: 3260BC
• Unit of Measure: Each

Standard Information

• Brand: NATIONAL MARKER
• Manufacturer Part Number: N245167
