National Marker N245159 Galvanized Eye Bolt Forged Steel

Product Description

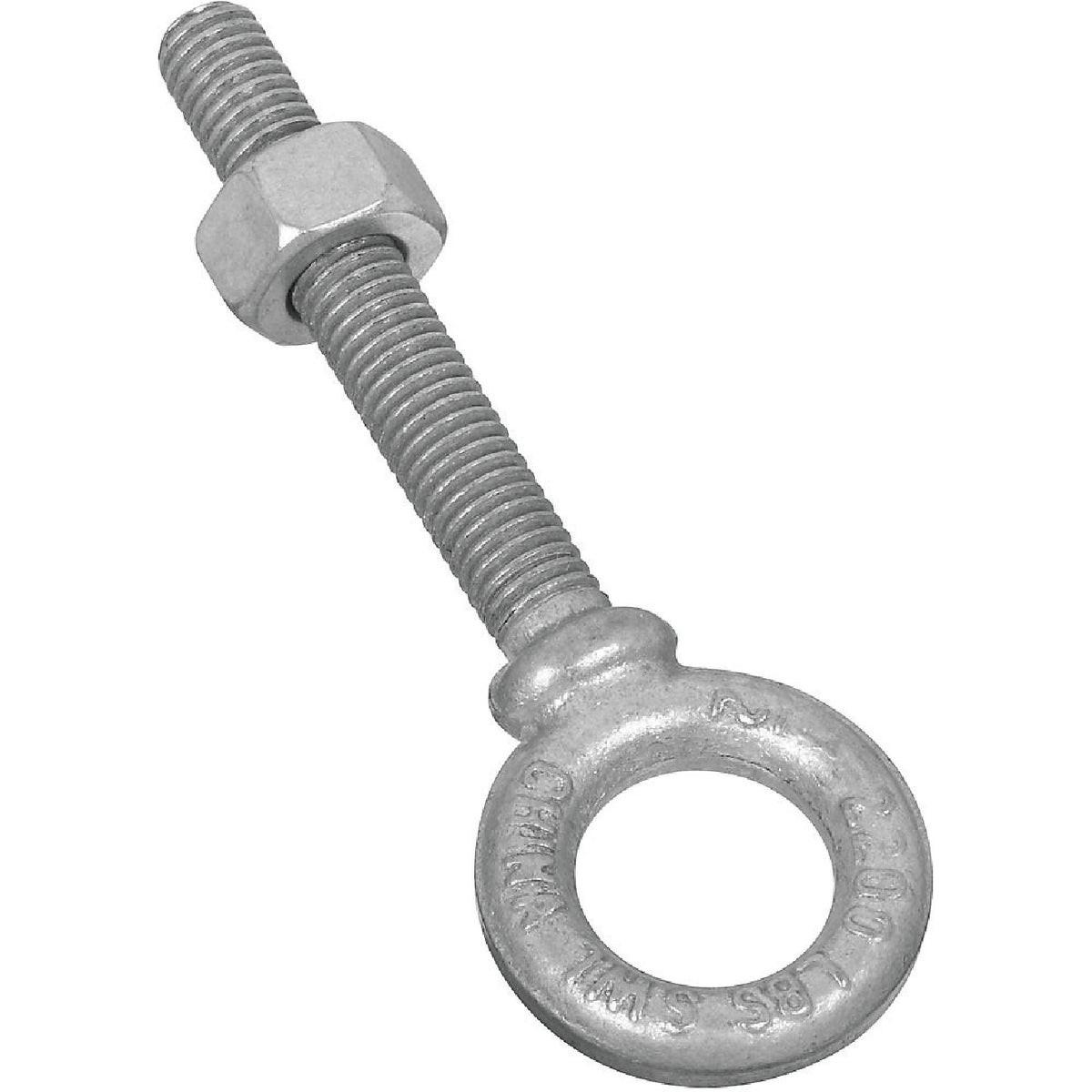

The NATIONAL MARKER N245159 is a forged galvanized eye bolt designed for reliable load-bearing applications in rigging, lifting, and fastening tasks. Part of the 3260BC catalog series, it features a shouldered design that allows the bolt to be tightened firmly in place, maintaining proper alignment under load. The bolt ships with a hex nut assembled and uses machine screw threads for secure installation. A color-coded bar code label clearly identifies wire size compatibility, and the Safe Working Load (SWL) rating is printed directly on the label so technicians can verify load capacity at a glance. At 0.426 pounds, it is a compact, single-unit fastener suited for light industrial and commercial use.

This eye bolt is intended for use in rigging setups, structural tie-down points, and overhead lifting applications where a secure, galvanized anchor point is required. The shoulder design makes it appropriate for installations with angular or offset loading. It is pintle punched for 5/16 inch bolts at the 0.5 inch size. Typical installers include millwrights, riggers, electricians installing cable supports, and general contractors working on commercial or light industrial projects where a dependable galvanized anchor point is needed.

Key Features

• Shouldered forged steel body allows the bolt to be tightened securely in place for stable, aligned installation
• Hot-dip galvanized finish provides corrosion resistance for both indoor and outdoor environments
• Pintle punched for 5/16 inch bolts at the 0.5 inch size
• Machine screw threads with hex nut pre-assembled for straightforward installation
• Color-coded bar code label identifies wire size; SWL rating clearly marked on label
• Part of the 3260BC catalog series for consistent specification across project applications

Compatibility

Designed as a standard shoulder-type galvanized eye bolt for use with 5/16 inch pintle hardware at the 0.5 inch bolt size. Sold individually; consult the 3260BC series specification sheet for additional sizes and wire rope compatibility pairings.

Installation Notes

Eye bolts should be installed by qualified riggers or tradespeople familiar with applicable ASME B30 rigging standards and local building codes. Always de-energize or isolate the structure or load path before installing or removing the fastener. Do not exceed the labeled Safe Working Load under any loading condition. Shoulder-type eye bolts must be fully seated with the shoulder flush against the mounting surface before applying any load to ensure rated performance.

Technical Specifications

• Bolt Diameter: 0.5 inches
• Bolt Length: 3.25 inches
• Material: Forged Steel
• Finish: Galvanized
• Thread Type: Machine Screw
• Pintle Punch Size: 5/16 inches
• Weight: 0.426 pounds
• Unit of Measure: Each
• Catalog Series: 3260BC
• UPC: 00038613245150

Standard Information

• Brand: NATIONAL MARKER
• Manufacturer Part Number: N245159
