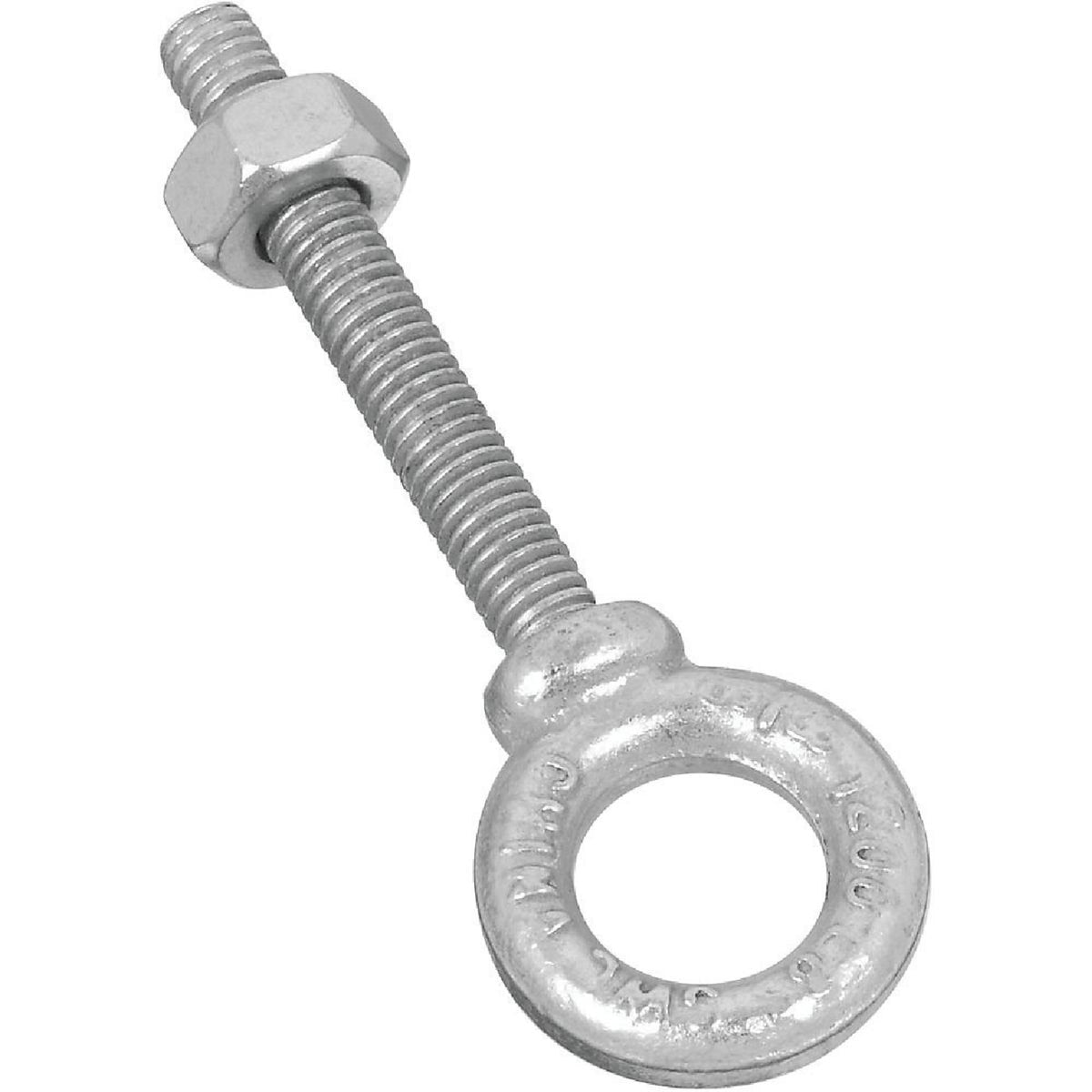

National Marker N245126 Galvanized Eye Bolt 3/8x2.5 In.

Product Description

The NATIONAL MARKER N245126 is a forged steel galvanized eye bolt designed for rigging and lifting applications where a secure, tightened-in-place anchor point is required. Sized at 3/8 inch diameter by 2-1/2 inch length, this shoulder-style eye bolt can be fully seated and tightened against a surface for lateral and angular load capacity. It ships with a hex nut assembled and features machine screw threads for compatibility with standard fastening hardware. The safe working load (SWL) is clearly printed on the color-coded bar code label, giving installers immediate reference without consulting separate documentation. Forged construction provides the structural integrity expected in trade and industrial rigging contexts.

This eye bolt is suited for use in construction, rigging, material handling, and mechanical service applications where a reliable threaded anchor point is needed. The shoulder design makes it appropriate for angled or side-loading scenarios, distinguishing it from plain-shank eye bolts. Pintle punched for 3/8 inch bolts, this unit is part of the catalog model 3260BC series. It is sold individually and is appropriate for installation by contractors, riggers, and maintenance technicians working with lifting hardware and rated fastener assemblies.

Key Features

• Shoulder design allows the bolt to be fully tightened against the work surface for improved load distribution
• Forged steel construction with galvanized finish for corrosion resistance
• Machine screw threads with hex nut included and pre-assembled
• Color-coded bar code label displays safe working load (SWL) for quick field identification
• Pintle punched for 3/8 inch bolts
• Part of the 3260BC catalog series

Compatibility

Designed as an OEM-style forged shoulder eye bolt for use with standard 3/8 inch machine screw thread fastener assemblies in rigging and lifting applications.

Installation Notes

Installation should be performed by a qualified rigger or mechanical contractor familiar with rated lifting hardware and applicable ASME B30 or OSHA rigging standards. Always confirm the rated SWL on the label before loading. Tighten the hex nut fully so the shoulder seats flush against the mounting surface before applying any load. Never exceed the labeled safe working load, and inspect the eye bolt and threads for wear or damage before each use.

Technical Specifications

• Bolt Diameter: 3/8 inches
• Bolt Length: 2-1/2 inches
• Material: Forged Steel
• Finish: Galvanized
• Thread Type: Machine Screw
• Includes: Hex Nut Assembled
• Series: 3260BC
• Weight: 0.209 pounds
• Sold As: Each

Standard Information

• Brand: NATIONAL MARKER
• Manufacturer Part Number: N245126
