National Marker N245084 Galvanized Eye Bolt 0.25x4 in Forged

Product Description

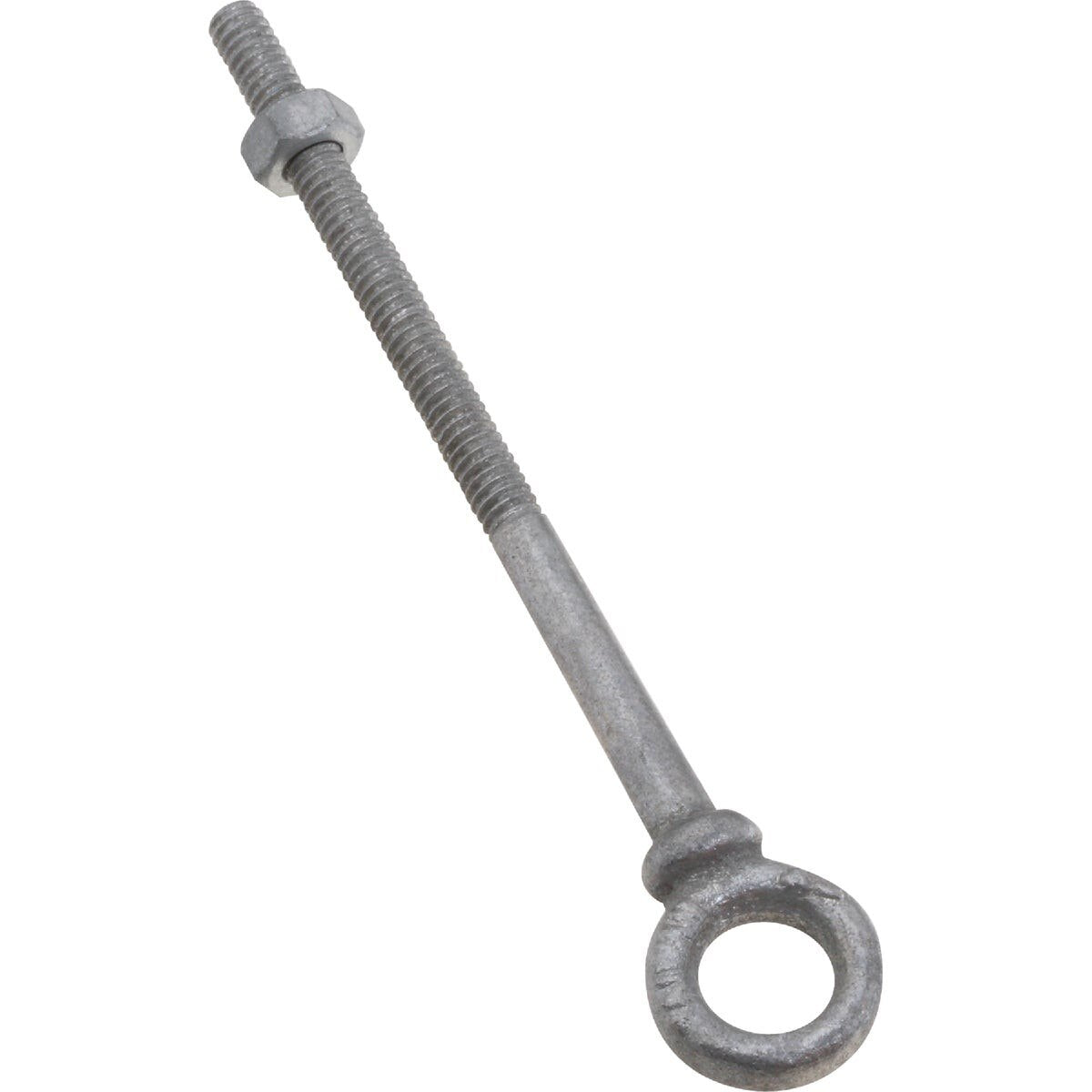

The NATIONAL MARKER N245084 is a forged galvanized eye bolt designed for rigging and lifting applications where a secure, load-rated anchor point is required. Sized at 0.25 inches in diameter by 4 inches in length, this eye bolt features a shoulder design that allows it to be fully tightened and seated against the mounting surface. It is manufactured from forged steel and arrives assembled with a machine-screw-thread hex nut. The safe working load (SWL) is clearly marked on the color-coded bar code label, which also identifies the appropriate wire size for the application.

This eye bolt is suited for use in construction, industrial maintenance, rigging, and general trade applications where a reliable threaded anchor point is needed. The galvanized finish provides corrosion resistance for both indoor and outdoor environments. The shoulder configuration makes it appropriate for angular loading scenarios where a standard shank-only eye bolt would not seat properly. Installation is handled by electricians, ironworkers, riggers, maintenance techs, and general contractors depending on the application context.

Key Features

• Forged steel construction for high strength and consistent load capacity
• Shoulder design allows full tightening and proper seating against the work surface
• Galvanized finish resists corrosion in outdoor and wet environments
• Machine screw threads with hex nut included and pre-assembled
• Color-coded bar code label identifies wire size and displays the rated SWL clearly
• Pintle-punched for use with the appropriate shackle pin or cotter pin

Compatibility

Designed as an OEM-style replacement or new-installation fastener for general rigging, lifting, and anchoring applications requiring a 0.25-inch diameter shouldered eye bolt. Part of the catalog model 3260BC series.

Installation Notes

Install by a qualified rigger or tradesperson in accordance with applicable OSHA rigging standards and the manufacturer's SWL rating shown on the label. Ensure the mounting surface is clean and the shoulder seats fully flush before applying the hex nut. Never exceed the rated SWL or apply shock loads to the eye. Inspect the eye bolt, threads, and nut for damage before each use.

Technical Specifications

• Diameter: 0.25 inches
• Length: 4 inches
• Material: Forged steel, galvanized
• Thread Type: Machine screw threads
• Hardware Included: Hex nut, pre-assembled
• Series: 3260BC
• Weight: 0.094 pounds
• Sold As: Each

Standard Information

• Brand: NATIONAL MARKER
• Manufacturer Part Number: N245084
