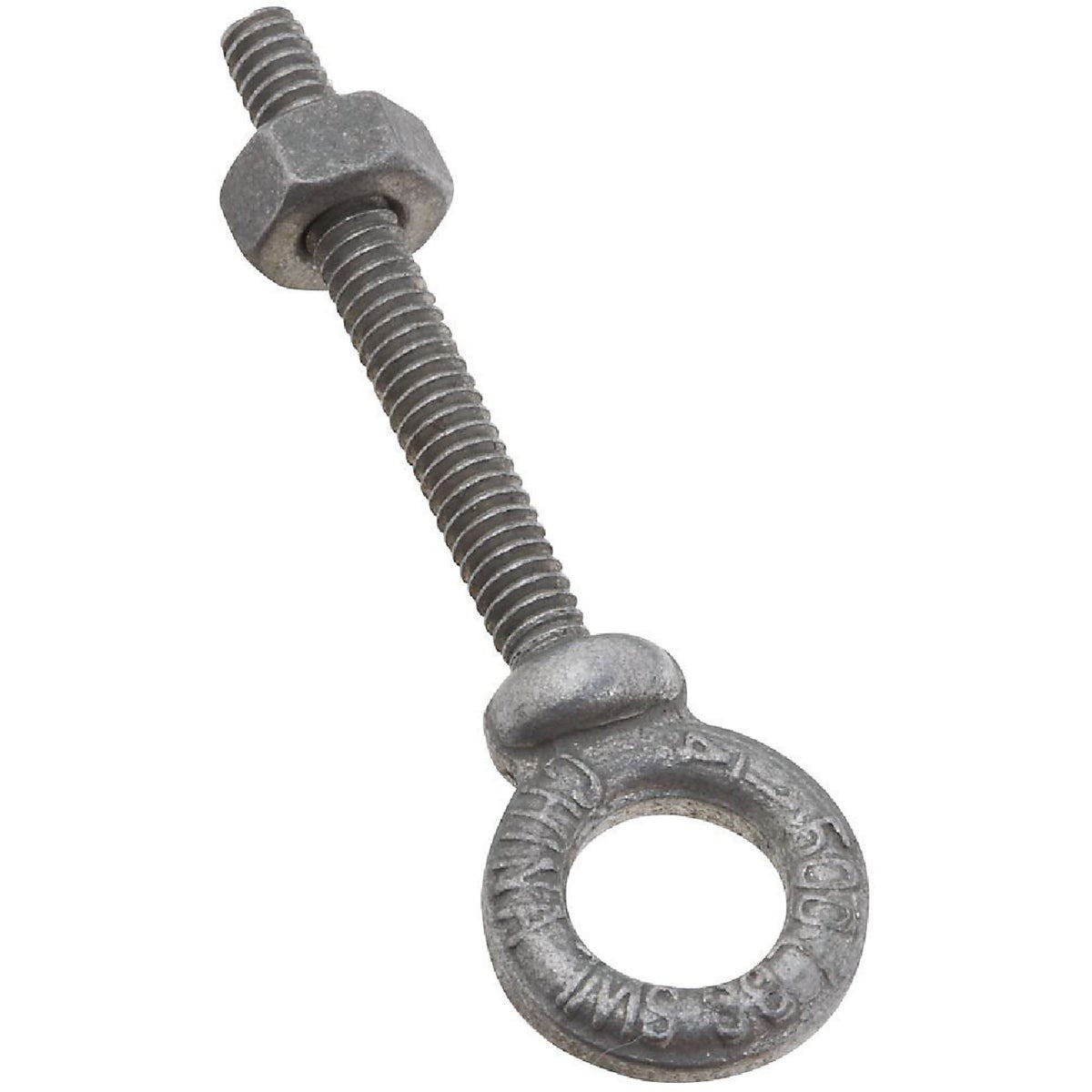

National Marker N245076 Galvanized Eye Bolt 1/4 X 2 in

Product Description

The NATIONAL MARKER N245076 is a forged galvanized eye bolt designed for rigging and lifting applications where reliable load identification and secure fastening are essential. Built to the catalog model 3260BC series, this eye bolt features a shoulder design that allows it to be tightened firmly in place, reducing the risk of rotation under load. Machine screw threads are included with a hex nut assembled. The safe working load (SWL) is clearly printed on the color-coded bar code label, giving technicians and riggers quick access to load capacity at the point of use. Manufactured from forged steel with a galvanized finish for corrosion resistance.

This eye bolt is suited for use in general industrial, construction, and trade service environments where a threaded, shoulder-style lifting point is required. The 1/4-inch shank diameter and 2-inch shank length make it appropriate for light-duty lifting, rigging, and anchoring tasks. The galvanized coating provides protection in moderately corrosive or outdoor environments. Installation is compatible with standard hex nut fastening without additional hardware beyond what is included.

Key Features

• Shoulder design allows the bolt to be tightened securely in place without rotation
• Forged steel construction for superior strength relative to cast alternatives
• Galvanized finish provides corrosion resistance for outdoor or industrial use
• Color-coded bar code label clearly identifies wire size and safe working load (SWL)
• Machine screw threads with hex nut included and assembled
• Pintle-punched for use with 5/16-inch fasteners per the 3260BC series specification

Compatibility

Designed as an OEM-style shoulder eye bolt in the NATIONAL MARKER 3260BC catalog series, suitable for standard threaded rigging and anchoring applications requiring a 1/4-inch shank diameter.

Installation Notes

Installation should be performed by a qualified rigger or tradesperson familiar with applicable lifting and rigging standards. Always ensure the mounting surface is capable of supporting the rated safe working load before use. Tighten the hex nut fully so the shoulder seats flush against the mounting surface. Inspect the eye bolt and nut for damage or corrosion before each use, and do not exceed the rated SWL printed on the label.

Technical Specifications

• Shank Diameter: 1/4 inch
• Shank Length: 2 inches
• Material: Forged Steel
• Finish: Galvanized
• Thread Type: Machine Screw
• Nut Included: Yes, hex nut assembled
• Catalog Series: 3260BC
• Weight: 0.068 pounds
• Unit of Measure: Each

Standard Information

• Brand: NATIONAL MARKER
• Manufacturer Part Number: N245076
