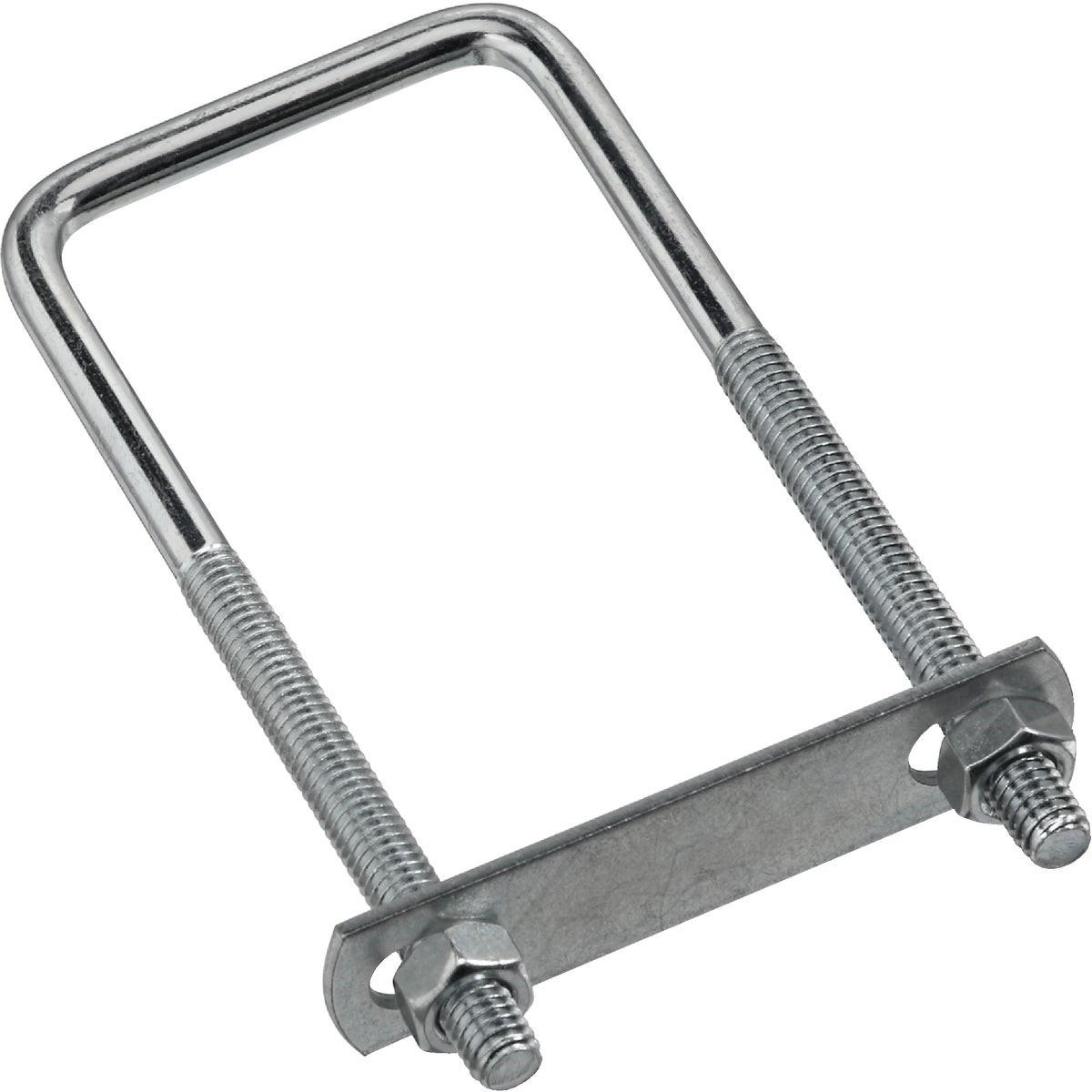

National Marker N222364 Square U-bolt Zinc Plated Steel

Product Description

The National Marker N222364 is a zinc-plated square U-bolt manufactured from steel wire, designed to secure components to rectangular wood or metal surfaces. Sized at 5/16 inch diameter with a 2-inch width and 5-inch length, this U-bolt ships as an assembled unit including a bearing plate and two hex nuts, ready for immediate installation. The zinc finish provides corrosion resistance in standard indoor and light-duty outdoor applications. Licensed tradespeople and general contractors rely on this hardware for structural fastening tasks where a square bend profile is required over a round U-bolt configuration.

This U-bolt is suited for a range of fastening applications in construction, mechanical, and light industrial settings. The square bend geometry makes it particularly effective for clamping to rectangular tubing, lumber, and structural sections. Common uses include pipe and conduit anchoring, strut mounting, and equipment tie-down on rectangular framing members. Each unit is sold individually and packaged with all required mating hardware.

Key Features

• Square U-bolt profile for secure grip on rectangular wood and metal members
• Zinc-plated steel construction for corrosion resistance in standard-duty applications
• Assembled with bearing plate and two hex nuts included — no additional hardware required
• 5/16 inch diameter rod with 2-inch inside width and 5-inch leg length
• Corresponds to National catalog model 2192BC

Compatibility

Designed as an OEM-style square U-bolt for general fastening to rectangular wood and metal structural members in residential, commercial, and light industrial applications.

Installation Notes

Installation is typically performed by carpenters, pipefitters, electricians, or general mechanical tradespeople. Before installation, ensure the mounting surface is clean, structurally sound, and appropriate for the fastener load requirements. Thread both hex nuts evenly to prevent binding and achieve consistent clamping force across the bearing plate. Consult applicable building or mechanical codes for torque and fastening requirements specific to the application.

Technical Specifications

• Rod Diameter: 5/16 inches
• Inside Width: 2 inches
• Leg Length: 5 inches
• Bend Style: Square
• Material: Steel wire
• Finish: Zinc plated
• Included Hardware: Bearing plate and two hex nuts
• Weight: 0.273 pounds
• UPC: 00038613178694

Standard Information

• Brand: National Marker
• Manufacturer Part Number: N222364
