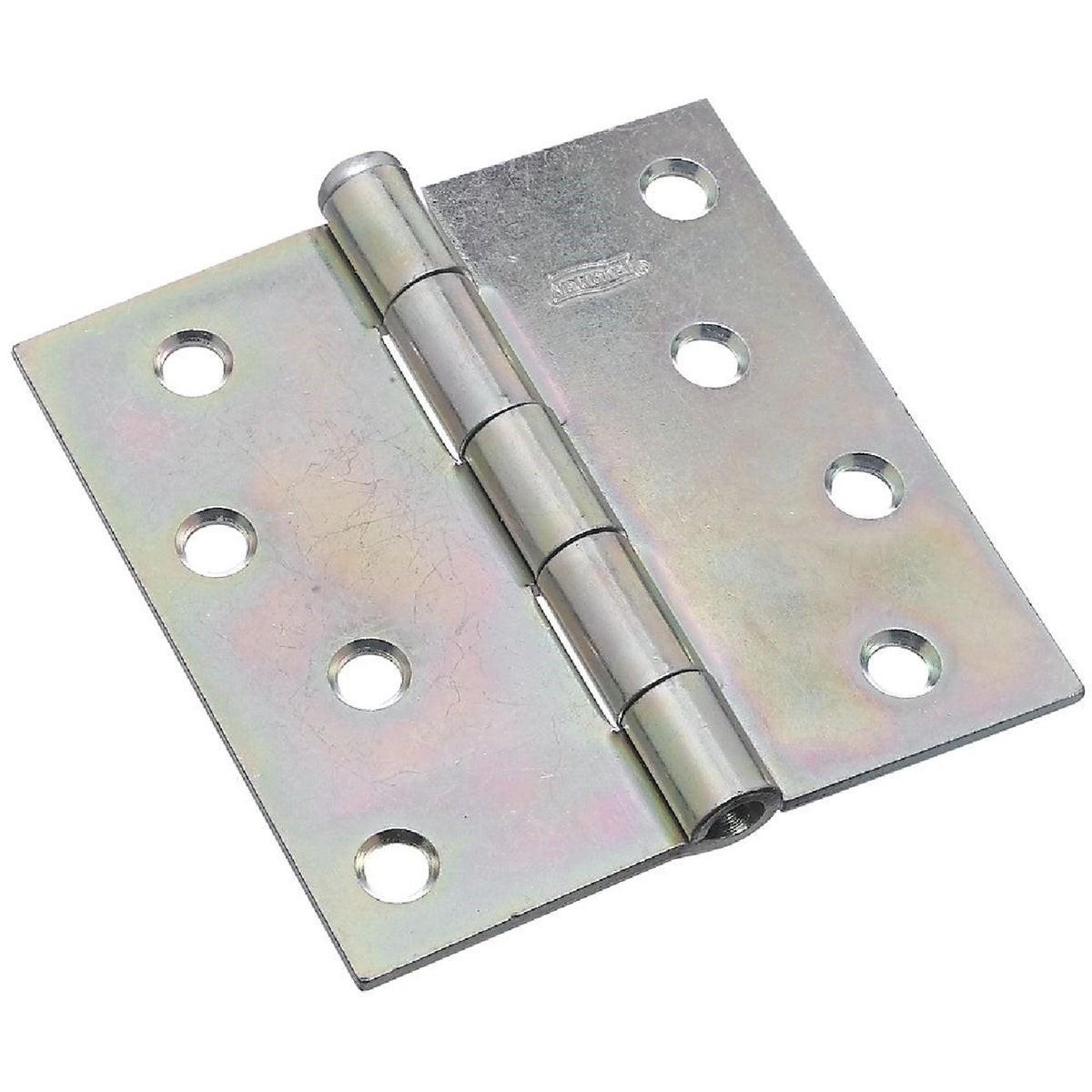

National Marker N195677 4 in Square Broad Door Hinge

Product Description

The NATIONAL MARKER N195677 is a 4-inch square broad door hinge built from zinc-plated steel with a brass loose pin. It is part of the National catalog V504 through V504BC series. The hinge is swaged for mortise-style installations, making it suitable for general utility and light industrial door applications. The loose, removable pin allows a door to be lifted free of its frame without removing the hinge leaves from the door or jamb. Licensed tradespeople and general contractors install this hardware during door hanging or service work.

This hinge is intended for general utility and industrial environments where a reliable, mortise-style pivot point is needed. The swaged construction ensures the leaves sit flush in a mortised recess. The removable pin design simplifies door removal for maintenance, painting, or replacement without disturbing the mounted hardware. It is sold individually.

Key Features

• 4-inch square leaf profile sized for standard broad-hinge mortise cutouts
• Zinc-plated steel construction for corrosion resistance in utility and industrial settings
• Loose brass pin allows door removal without uninstalling hinge leaves
• Swaged leaves designed for flush mortise installation
• Part of the National V504 through V504BC catalog series

Compatibility

Designed as an OEM-style replacement or new-installation hinge for general utility and industrial doors requiring a 4-inch square mortise broad hinge with a removable pin.

Installation Notes

Installation is typically performed by carpenters, general contractors, or maintenance tradespeople. Power down or secure the door before service to prevent movement during installation. Mortise the door edge and jamb to the correct leaf depth before fastening. Follow applicable local building codes for door hardware installation requirements.

Technical Specifications

• Leaf Size: 4 inches square
• Material: Zinc-plated steel with brass pin
• Pin Type: Loose removable pin
• Installation Type: Mortise (swaged leaves)
• Weight: 0.722 pounds
• Catalog Series: V504 through V504BC
• Sold As: Each
• UPC: 00038613195677

Standard Information

• Brand: NATIONAL MARKER
• Manufacturer Part Number: N195677
