National Marker N151878 Galvanized Steel Door Barrel Bolt

Product Description

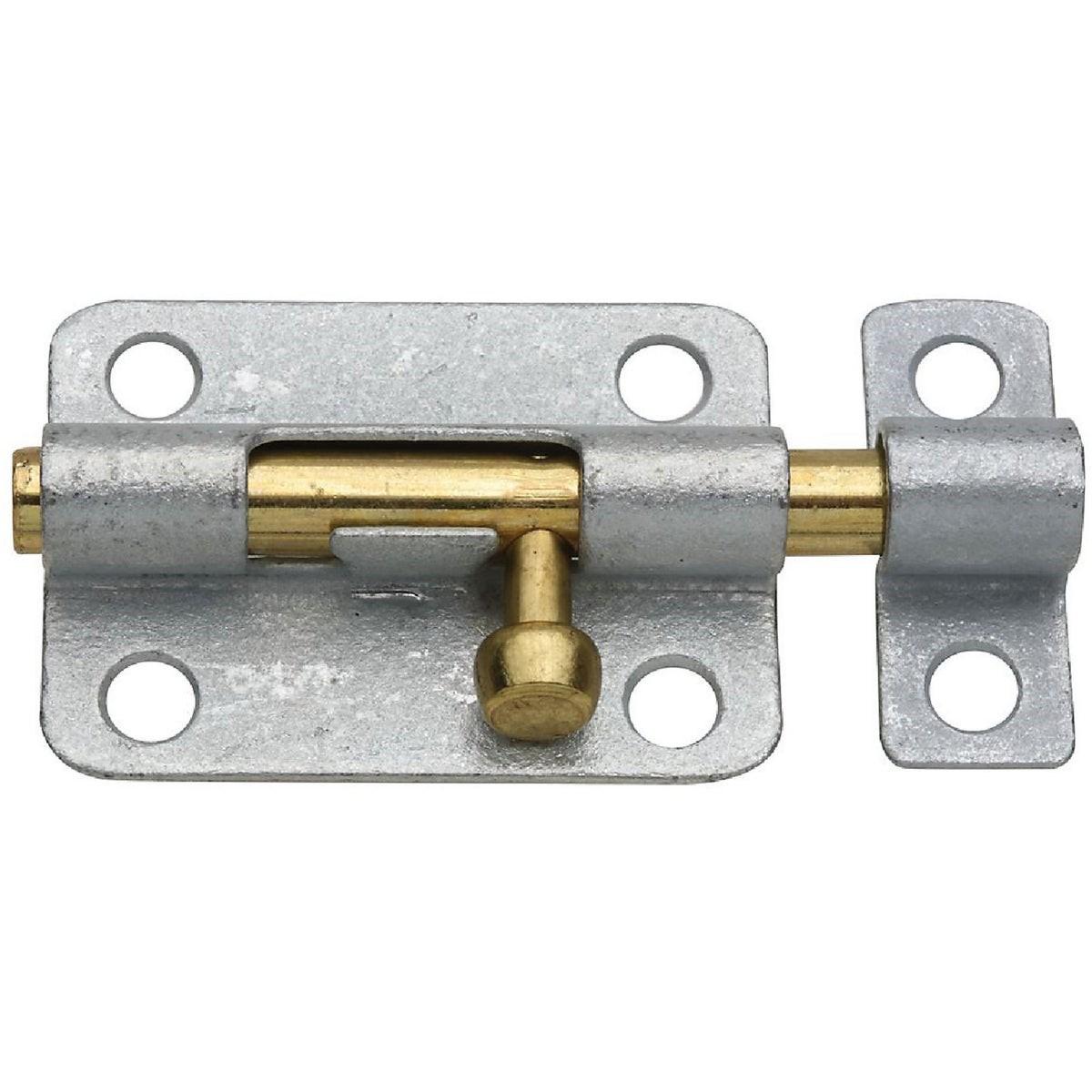

The NATIONAL MARKER N151878 is a 3-inch galvanized steel door barrel bolt designed for security and latching applications on lightweight doors, chests, cabinets, and similar enclosures. The bolt body is constructed of galvanized steel, while the bolt itself and the knob are made of brass, providing corrosion resistance suited for general interior use. The bolt diameter measures 0.32 inches. This type of hardware is typically installed by maintenance technicians, carpenters, or general contractors as part of door and cabinet security work.

This barrel bolt is suited for residential and light commercial applications where a simple slide-bolt latch is needed. It supports both right-hand and left-hand mounting configurations, making it adaptable to a variety of door swing orientations. When mounted vertically, the notch-in case design holds the bolt in the locked position without additional hardware, adding a layer of passive security. Typical applications include interior doors, utility room cabinets, storage chests, and access panels.

Key Features

• 3-inch bolt length suitable for lightweight door and cabinet security applications
• Galvanized steel construction with brass bolt and brass knob
• Compatible with both right-hand and left-hand door installations
• Notch-in case holds the bolt locked when mounted vertically
• Bolt diameter of 0.32 inches for standard latch fitment

Compatibility

Designed as an OEM-style replacement or new-installation barrel bolt for lightweight interior doors, chests, and cabinets requiring a simple slide-bolt latching mechanism.

Installation Notes

Installation is typically performed with basic hand tools including a screwdriver and drill. Ensure the door or cabinet panel is stable and properly aligned before securing the bolt case and strike plate. No power shutoff is required for hardware installation, but confirm the mounting surface material is compatible with the fasteners provided. Follow any applicable local building or cabinet hardware codes for security hardware installations.

Technical Specifications

• Bolt Length: 3 inches
• Bolt Diameter: 0.32 inches
• Body Material: Galvanized Steel
• Bolt and Knob Material: Brass
• Weight: 0.219 pounds
• Minimum Order Quantity: 1
• UPC: 00038613151871

Standard Information

• Brand: NATIONAL MARKER
• Manufacturer Part Number: N151878
