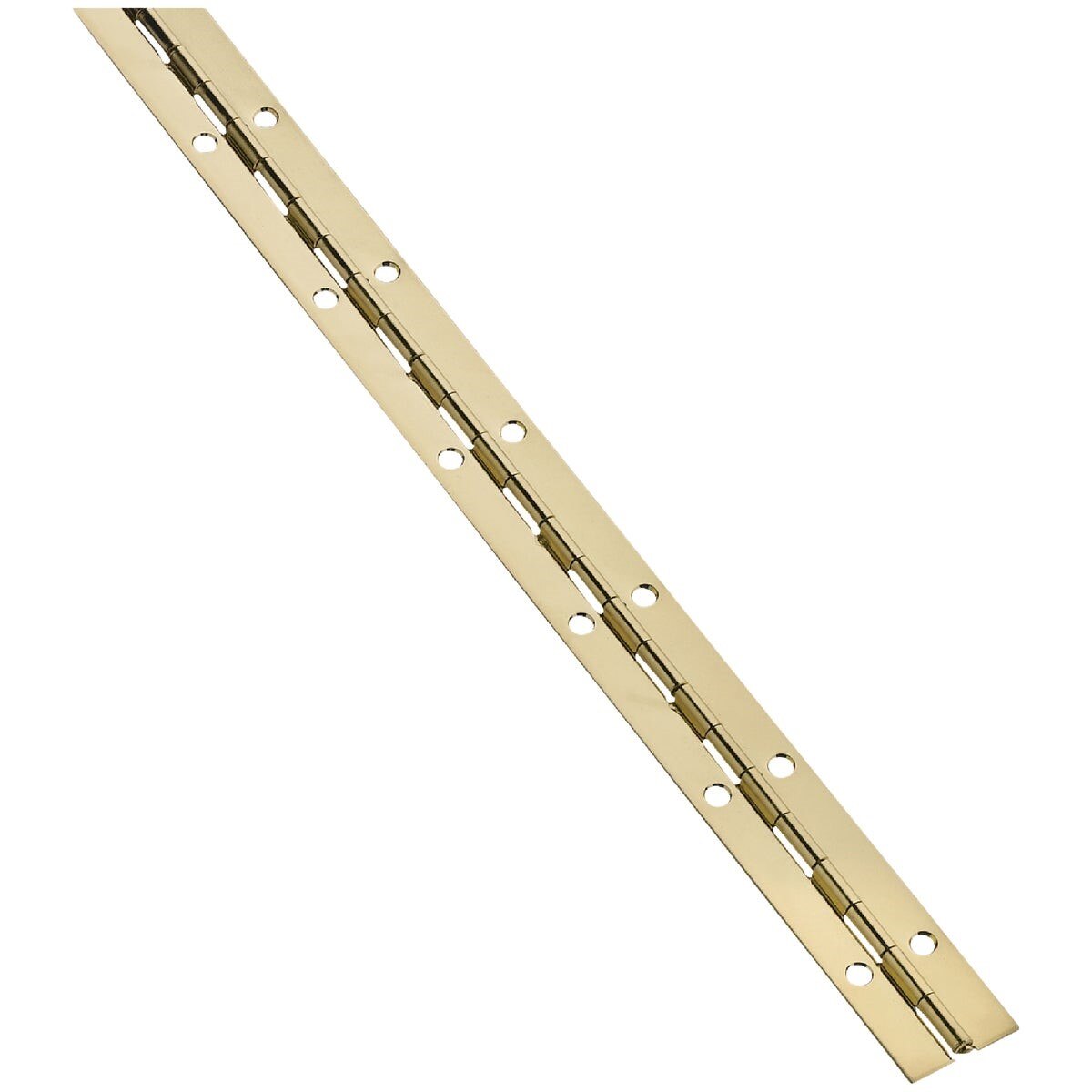

National Marker N148353 Continuous Hinge 1-1/16x48 in

Product Description

The NATIONAL MARKER N148353 is a bright brass-finish continuous hinge designed for light-duty hardware applications in residential and commercial settings. Part of the V570 series, this full-length hinge measures 1-1/16 inches wide by 48 inches long and is constructed from steel at a 0.042 gauge thickness. The electrofilm-coated pin, measuring 0.090 inches in diameter, resists rust and stays secured during cutting, allowing the hinge to be trimmed to any desired length without the pin falling out. Screw holes are spaced 2 inches apart for consistent, even fastening. Packed with Phillips flat No. 4 x 1/2-inch screws.

This continuous hinge is suited for tool chests, cabinets, folding tables, and hobby projects where a clean, full-length pivot point is required. The bright brass finish provides a finished appearance on cabinetry and storage applications. The ability to cut the hinge to length makes it adaptable to a wide range of project sizes without requiring specialty sizing. It is sold individually and ships with the hardware needed for installation.

Key Features

• Full-length 48-inch continuous hinge, cuttable to any desired length
• Friction-fit pin stays in place when hinge is cut — no pin loss during trimming
• Electrofilm-coated 0.090-inch diameter pin for rust resistance
• Screw holes spaced 2 inches apart for even load distribution
• 0.042 gauge steel construction with bright brass finish
• Includes Phillips flat No. 4 x 1/2-inch mounting screws

Compatibility

Designed as a general-purpose continuous hinge suitable for tool chests, cabinets, folding tables, and hobby project applications requiring a full-length piano-style pivot.

Installation Notes

Installation is a general carpentry or cabinet-hardware task requiring basic hand tools including a Phillips screwdriver or drill with a Phillips bit. Cut the hinge to length with tin snips or a metal-cutting blade before mounting; deburr cut edges before installation. Ensure the mounting surface is clean and structurally sound before driving screws. No specialized trade license is typically required for standard cabinet hardware installation.

Technical Specifications

• Width: 1-1/16 inches
• Length: 48 inches
• Pin Diameter: 0.090 inches
• Gauge: 0.042
• Screw Hole Spacing: 2 inches
• Finish: Bright Brass
• Material: Steel
• Pin Coating: Electrofilm
• Included Hardware: Phillips Flat No. 4 x 1/2-inch screws
• Series: V570
• Weight: 0.8 pounds
• Sold As: Each

Standard Information

• Brand: NATIONAL MARKER
• Manufacturer Part Number: N148353
