National Marker N148205 Continuous Hinge 1-1/16x30 in

Product Description

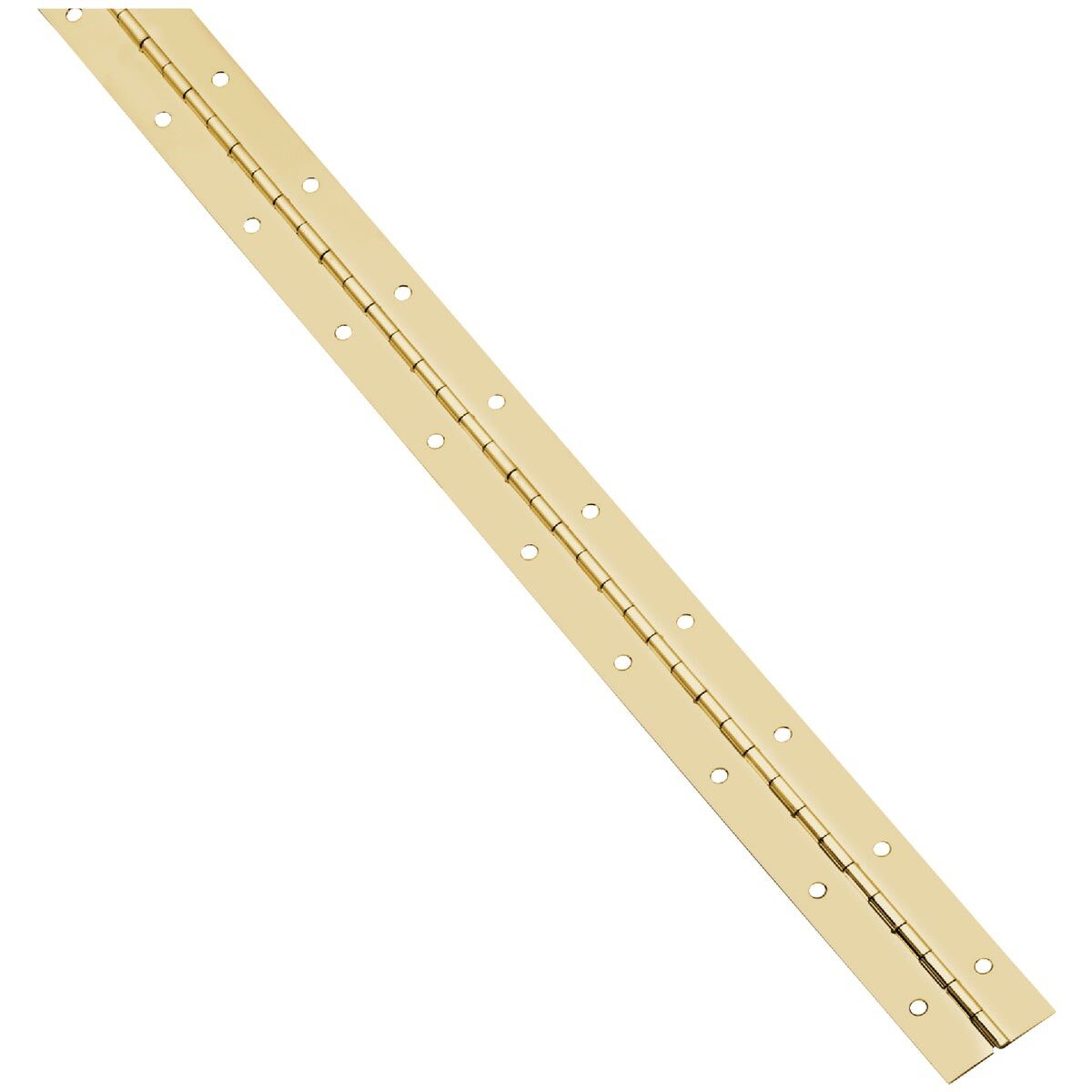

The NATIONAL MARKER N148205 is a bright brass-finish continuous hinge designed for light-duty cabinet and furniture applications. Part of the V570 series, this hinge measures 1-1/16 inches wide by 30 inches long and is constructed from steel with a gauge of .042 inches. The electrofilm-coated pin measures .090 inches in diameter and is designed to resist rust. Because the friction pin will not fall out during cutting, the hinge can be trimmed to any desired length on the job without disassembly. Screw holes are spaced 2 inches apart for consistent fastener layout.

This continuous hinge is suited for residential and light commercial use on tool chests, cabinets, folding tables, and hobby project enclosures. The full-length piano-style design distributes load evenly across the hinge point, making it a practical choice wherever a standard butt hinge would concentrate stress. It ships as a single piece and includes Phillips flat No. 4 x 1/2 inch screws.

Key Features

• Bright brass finish over steel construction, .042-inch gauge
• Electrofilm-coated pin, .090-inch diameter, for rust resistance
• Friction-pin design allows field cutting to any length without pin loss
• Screw holes spaced 2 inches apart for uniform fastener layout
• Includes Phillips flat No. 4 x 1/2 inch screws
• V570 series catalog designation

Compatibility

Designed as a general-purpose continuous hinge suitable for tool chests, cabinets, folding tables, and hobby project enclosures where a full-length hinge is required.

Installation Notes

Installation is performed with standard hand tools; a drill and Phillips screwdriver are typical. Cut the hinge to the required length with a hacksaw or tin snips before mounting. Ensure the mounting surface is clean and flat before securing fasteners. Supplied screws are intended for light-duty substrates; select longer or larger fasteners as needed for the specific application.

Technical Specifications

• Series: V570
• Width: 1-1/16 inches
• Length: 30 inches
• Gauge: .042 inches
• Pin Diameter: .090 inches
• Screw Hole Spacing: 2 inches
• Material: Steel
• Finish: Bright Brass
• Pin Coating: Electrofilm
• Included Hardware: Phillips flat No. 4 x 1/2 inch screws
• Weight: 0.5 pounds
• Sold As: Each

Standard Information

• Brand: NATIONAL MARKER
• Manufacturer Part Number: N148205
