National Marker N148171 Continuous Hinge 1.5x30 in Steel

Product Description

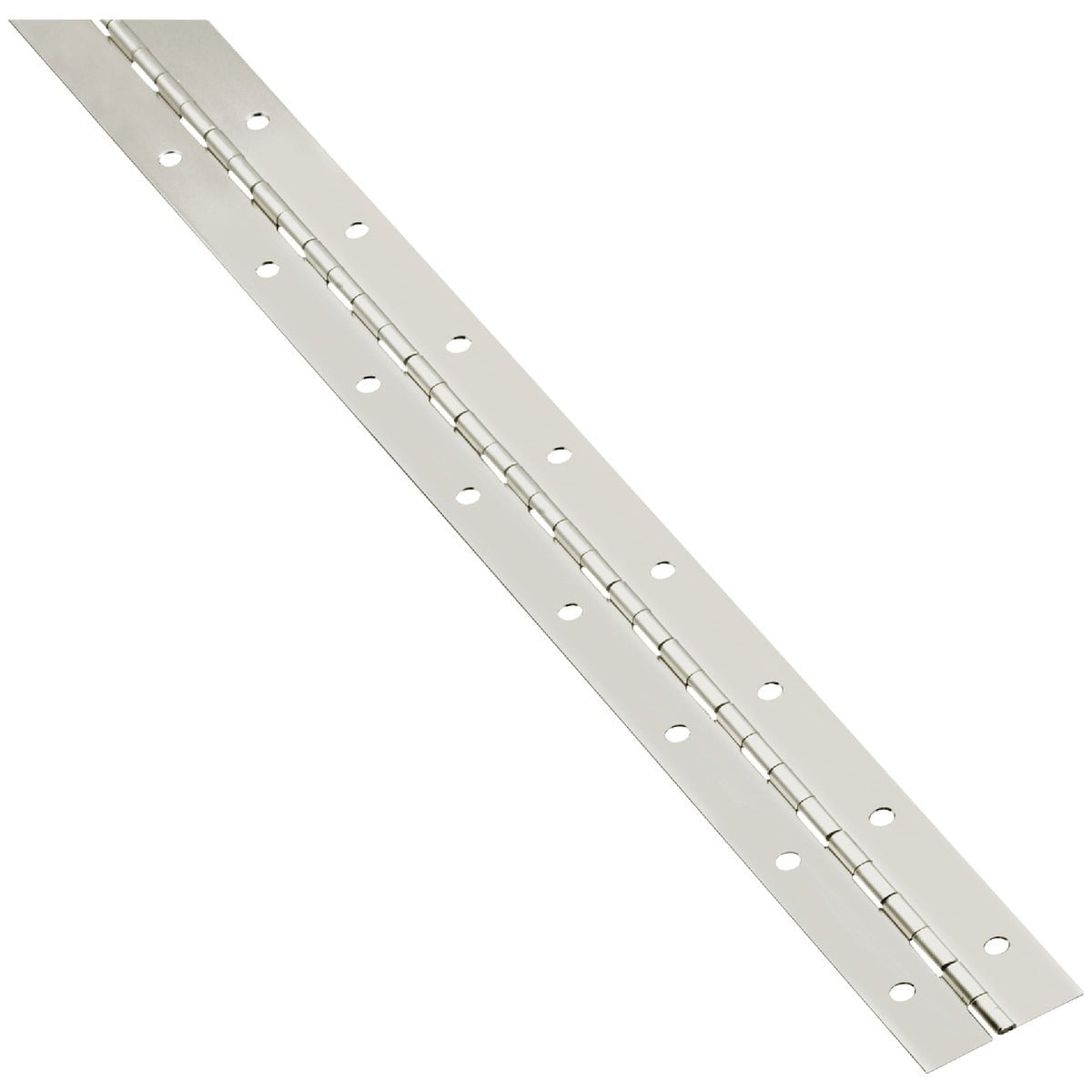

The NATIONAL MARKER N148171 is a steel continuous hinge measuring 1.5 inches wide by 30 inches long with a nickel finish, part of the V570 series. It features an electrofilm-coated pin with a 0.090-inch diameter that resists rust without falling out when the hinge is cut to a shorter length. This design allows the hinge to be trimmed to any desired size on the job without additional pin retention hardware. Screw holes are spaced 2 inches apart throughout the full length. Each unit ships with a Phillips flat No. 4 x 0.5-inch screw included. The gauge is 0.042 inches. Installers across light construction, cabinet, and furniture trades use this hinge for durable pivot applications.

This continuous hinge is suited for residential and light commercial applications including tool chests, storage cabinets, folding tables, and hobby or craft project builds. Its full-length piano-style design distributes load evenly along the entire hinge line, making it a practical choice wherever a standard butt hinge would concentrate stress at discrete mounting points. The rust-resistant pin coating makes it appropriate for shop environments where light moisture or humidity exposure is common.

Key Features

• Electrofilm-coated 0.090-inch diameter pin resists rust
• Can be cut to any desired length without the pin falling out
• Screw holes spaced 2 inches apart for consistent fastening
• 0.042-inch gauge steel construction
• Includes Phillips flat No. 4 x 0.5-inch screws
• Nickel finish for corrosion resistance and clean appearance

Compatibility

Designed as an OEM-style replacement or new-installation continuous hinge for tool chests, cabinets, folding tables, and hobby project enclosures requiring a 1.5-inch width by up to 30-inch length piano hinge.

Installation Notes

This hinge is installed by general contractors, finish carpenters, or skilled DIYers using standard hand tools. Power down or secure any associated equipment before hinge replacement on tool chests or cabinets. When cutting to length, use a fine-tooth metal saw and deburr cut edges before installation. Fasten with the included screws and ensure mounting surfaces are flat and aligned before driving fasteners fully.

Technical Specifications

• Width: 1.5 inches
• Length: 30 inches
• Gauge: 0.042 inches
• Pin Diameter: 0.090 inches
• Screw Hole Spacing: 2 inches
• Material: Steel
• Finish: Nickel
• Pin Coating: Electrofilm
• Included Hardware: Phillips flat No. 4 x 0.5-inch screws
• Weight: 0.634 pounds
• Series: V570

Standard Information

• Brand: NATIONAL MARKER
• Manufacturer Part Number: N148171
