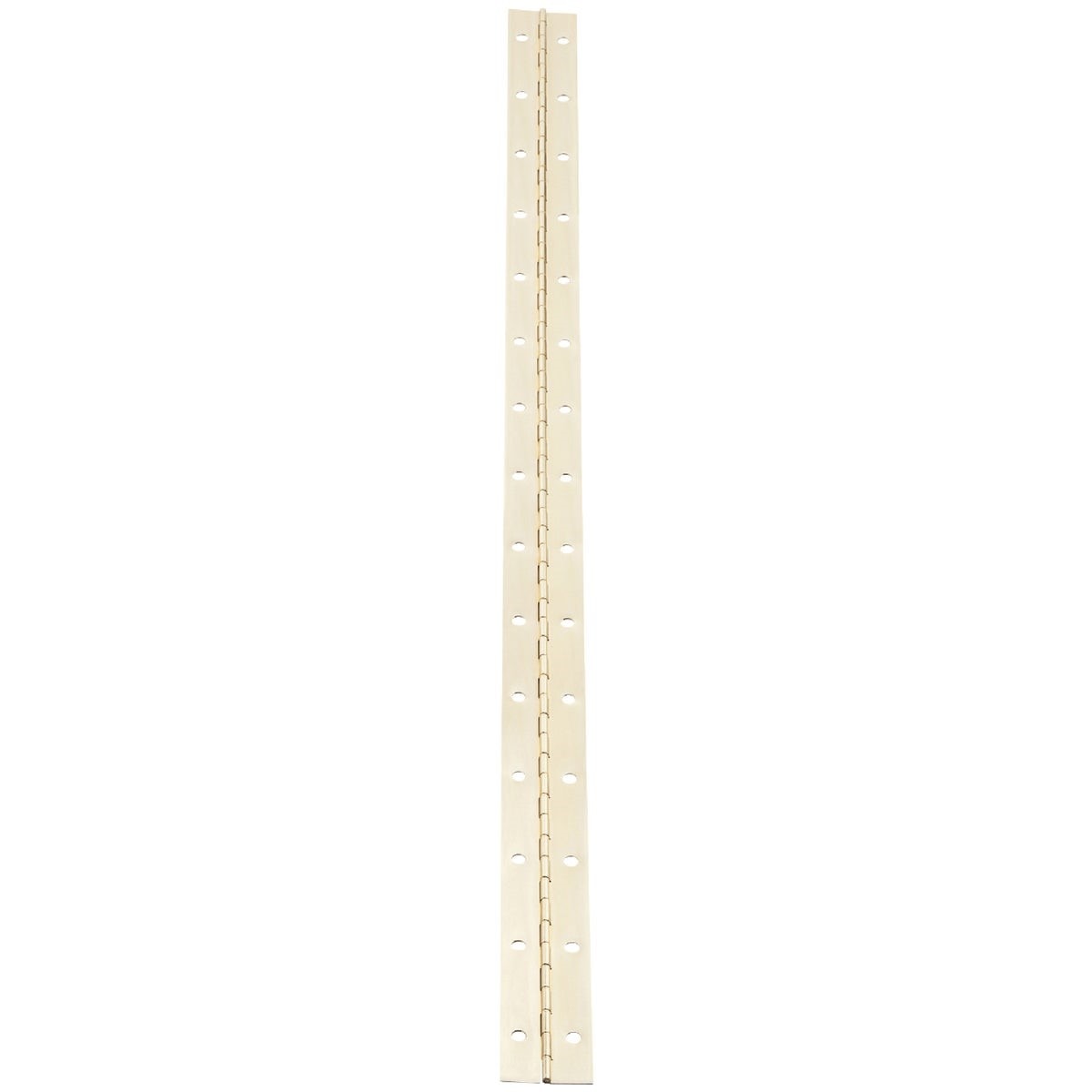

National Marker N148155 Continuous Hinge 1.5x30 in Steel

Product Description

The NATIONAL MARKER N148155 is a bright brass-finish continuous hinge manufactured from steel and measuring 1.5 inches wide by 30 inches in length. Part of the V570 series, this full-length hinge is designed for tool chests, cabinets, folding tables, and hobby projects. The electrofilm-coated pin measures .090 inches in diameter and is engineered to resist rust without falling out when the hinge is cut to a shorter length. Screw holes are spaced 2 inches apart for consistent fastener layout, and the hinge ships with Phillips flat No. 4 x 0.5 inch screws included. The .042-gauge steel construction delivers reliable durability for repeated open-and-close cycles in light-duty applications.

This continuous hinge suits residential and light commercial installations where a full-length piano-style hinge is needed along the entire edge of a door, lid, or panel. Typical applications include tool chest lids, cabinet doors, folding worktable leaves, and craft or hobby enclosures. Because the hinge can be cut to any desired length with standard metal shears or a hacksaw without losing the friction pin, it adapts to a wide range of project dimensions without additional hardware.

Key Features

• V570 series full-length continuous hinge design distributes load along the entire hinge line
• Can be cut to any desired length — friction pin will not fall out after cutting
• Electrofilm-coated .090-inch diameter pin resists rust
• Screw holes spaced 2 inches apart for uniform fastener layout
• .042-gauge steel construction with bright brass finish
• Includes Phillips flat No. 4 x 0.5 inch screws

Compatibility

Designed as a general-purpose continuous hinge for tool chests, cabinets, folding tables, and hobby project enclosures requiring a full-length or cut-to-fit piano-style hinge.

Installation Notes

Installation is typically performed with a standard Phillips screwdriver or drill driver using the included No. 4 screws. When cutting to length, use metal shears or a fine-tooth hacksaw and deburr the cut end before mounting. Align the hinge leaf evenly on both mating surfaces and fasten from the center outward to prevent warping. Ensure the mounting surface material is thick enough to hold a No. 4 fastener securely.

Technical Specifications

• Series: V570
• Width: 1.5 inches
• Length: 30 inches
• Gauge: .042
• Pin Diameter: .090 inches
• Pin Coating: Electrofilm
• Screw Hole Spacing: 2 inches
• Included Hardware: Phillips flat No. 4 x 0.5 inch screws
• Material: Steel
• Finish: Bright Brass
• Weight: 0.634 pounds

Standard Information

• Brand: NATIONAL MARKER
• Manufacturer Part Number: N148155
