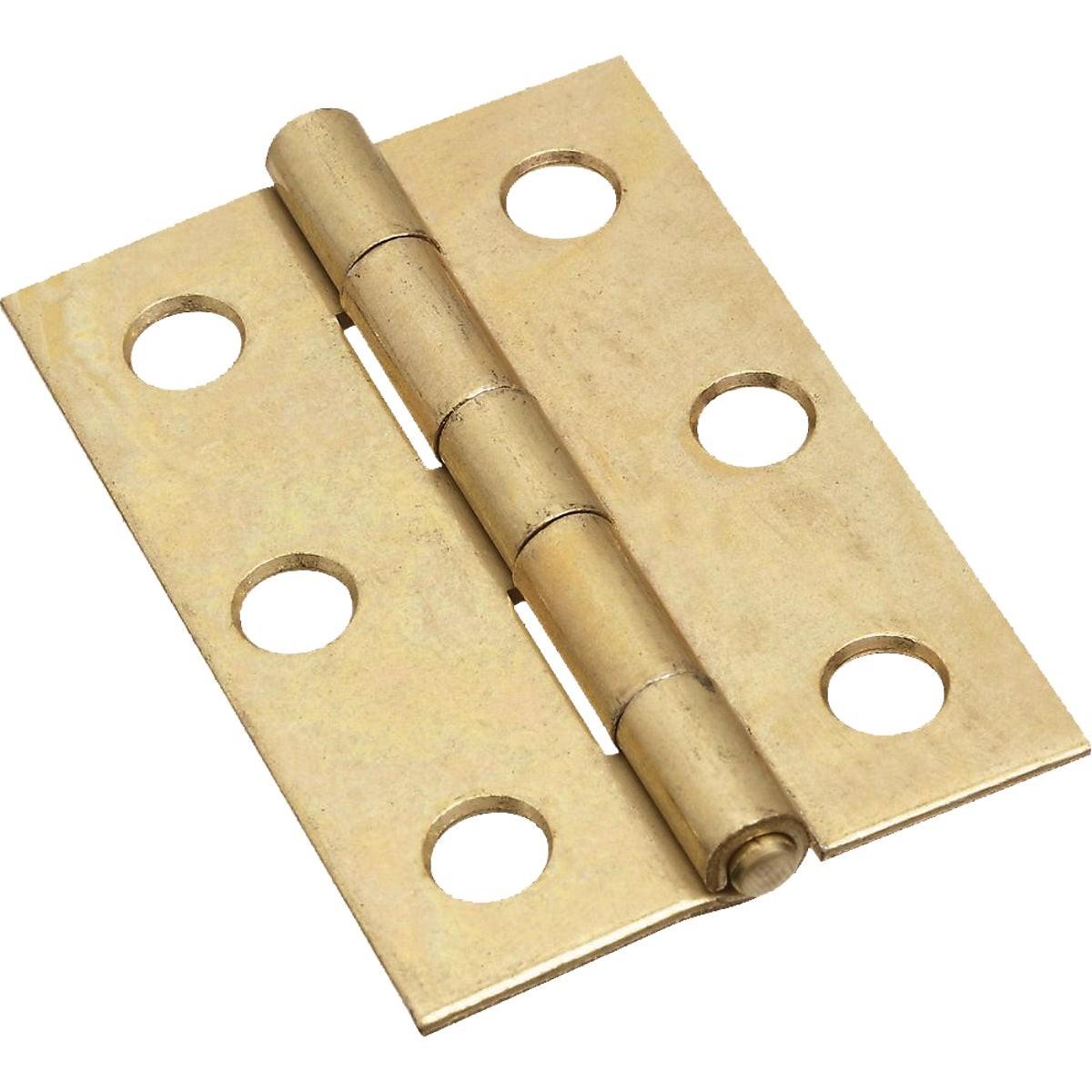

National Marker N146290 Brass Tight-pin Narrow Hinge

Product Description

The NATIONAL MARKER N146290 is a tight-pin narrow hinge finished in satin brass, designed for light-duty door, cabinet, and panel applications. The tight-pin design keeps the pin permanently fixed in the knuckle, preventing removal and maintaining consistent alignment over repeated use. Built from cold-rolled steel with a zinc undercoat and satin brass topcoat, this hinge delivers corrosion resistance suitable for interior installations. At 2.5 inches, it fits standard narrow-profile applications. Each pack includes two hinges along with mounting screws, making it a complete solution for the job at hand. Carpenters, millworkers, and general contractors are the primary installers.

This hinge is suited for residential and light commercial interior applications including cabinet doors, small access panels, and utility enclosures. The 2.5-inch leaf size fits narrow stiles and lightweight door assemblies where a full-size hinge would be oversized. The included screws match the finish and simplify installation. The V518 series catalog designation allows cross-referencing with original spec sheets for replacement or matching purposes on existing installations.

Key Features

• Tight-pin design prevents pin removal and maintains consistent hinge alignment
• Cold-rolled steel construction with zinc and satin brass finish for interior corrosion resistance
• 2.5-inch narrow profile suits cabinet doors, access panels, and light-duty assemblies
• Mounting screws included in each pack
• Two hinges per pack for paired-hinge installations
• V518 series catalog designation for straightforward spec-sheet cross-reference

Compatibility

Designed as an OEM-style replacement or new-installation hinge for narrow-profile interior cabinet doors and light-duty panel assemblies requiring a 2.5-inch tight-pin hinge in a satin brass finish.

Installation Notes

Installation is performed by carpenters, millworkers, or general contractors using standard hand tools. Power down or secure any spring-loaded panels before removing an existing hinge. Pre-drill pilot holes to prevent wood splitting, particularly in hardwood stiles. Follow applicable local building codes for door hardware when used in commercial or multi-family residential applications.

Technical Specifications

• Hinge Size: 2.5 inches
• Pin Type: Tight pin
• Base Material: Cold-rolled steel
• Finish: Zinc and satin brass
• Quantity per Pack: 2
• Screws Included: Yes
• Weight: 0.246 pounds
• Catalog Series: V518

Standard Information

• Brand: NATIONAL MARKER
• Manufacturer Part Number: N146290
