National Marker N141622 Loose Pin Narrow Hinge 1 in 2 Pack

Product Description

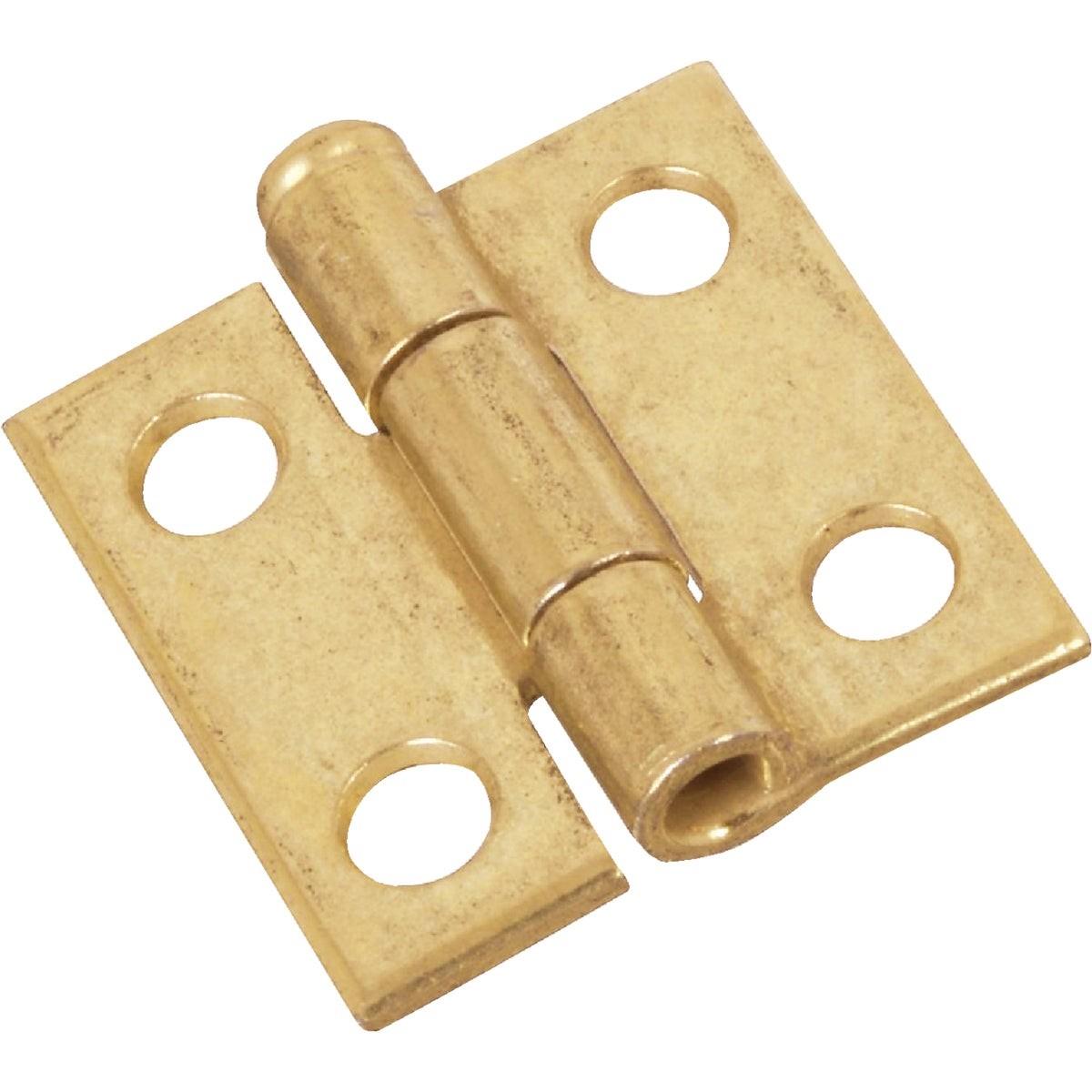

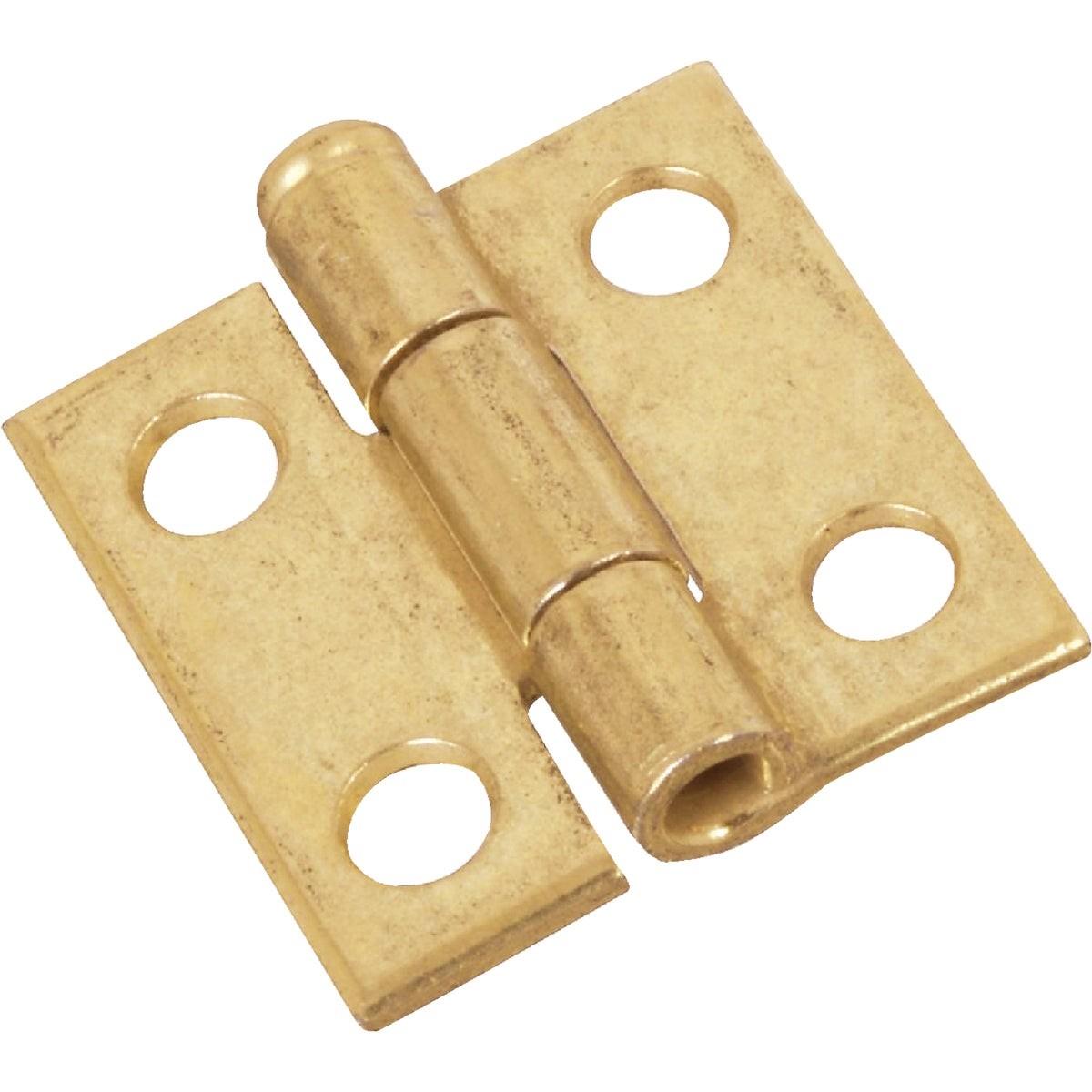

The NATIONAL MARKER N141622 is a loose-pin narrow hinge designed for light-duty door and cabinet applications. Part of the 508 series, this hinge features a removable pin that allows the door leaf to separate from the frame leaf without removing the screws — a practical design for applications where frequent removal is needed. The hinge body is constructed from cold-rolled steel with a zinc and satin brass finish. Each pack includes one pair of hinges with mounting screws included. At 0.068 pounds per pack, it is suited for small interior doors, cabinet doors, and lightweight panels.

This hinge is appropriate for residential and light commercial cabinetry, interior passage doors, and furniture applications where a narrow hinge profile is required. The loose-pin design is common in finish carpentry and cabinet installation work. The included screws simplify the installation process and make this a ready-to-install solution for trim carpenters, finish installers, and general contractors.

Key Features

• Loose-pin design allows door leaf removal without unscrewing the hinge from the frame
• Cold-rolled steel construction with zinc and satin brass finish
• Narrow hinge profile suited for lightweight doors and cabinet applications
• Mounting screws included in the visual pack
• Sold as one pair (2 hinges) per pack
• 508 series catalog model

Compatibility

Designed as an OEM-style replacement or new-installation hinge for lightweight interior doors, cabinet doors, and furniture panels requiring a 1-inch narrow loose-pin hinge.

Installation Notes

Installation is performed by finish carpenters or general contractors using standard screwdrivers or drill drivers. Ensure the door or panel is properly supported before removing the loose pin during service or replacement. Pre-drilling pilot holes is recommended on hardwood substrates to prevent splitting. Follow applicable local building codes for door hardware installation.

Technical Specifications

• Series: 508
• Hinge Size: 1 inch
• Pin Type: Loose pin
• Base Material: Cold-rolled steel
• Finish: Zinc and satin brass
• Pack Contents: 1 pair with screws
• Package Weight: 0.068 pounds
• UPC: 00038613141629

Standard Information

• Brand: NATIONAL MARKER
• Manufacturer Part Number: N141622
