National Marker N140467 Steel Broad Door Hinge 3 Inch

Product Description

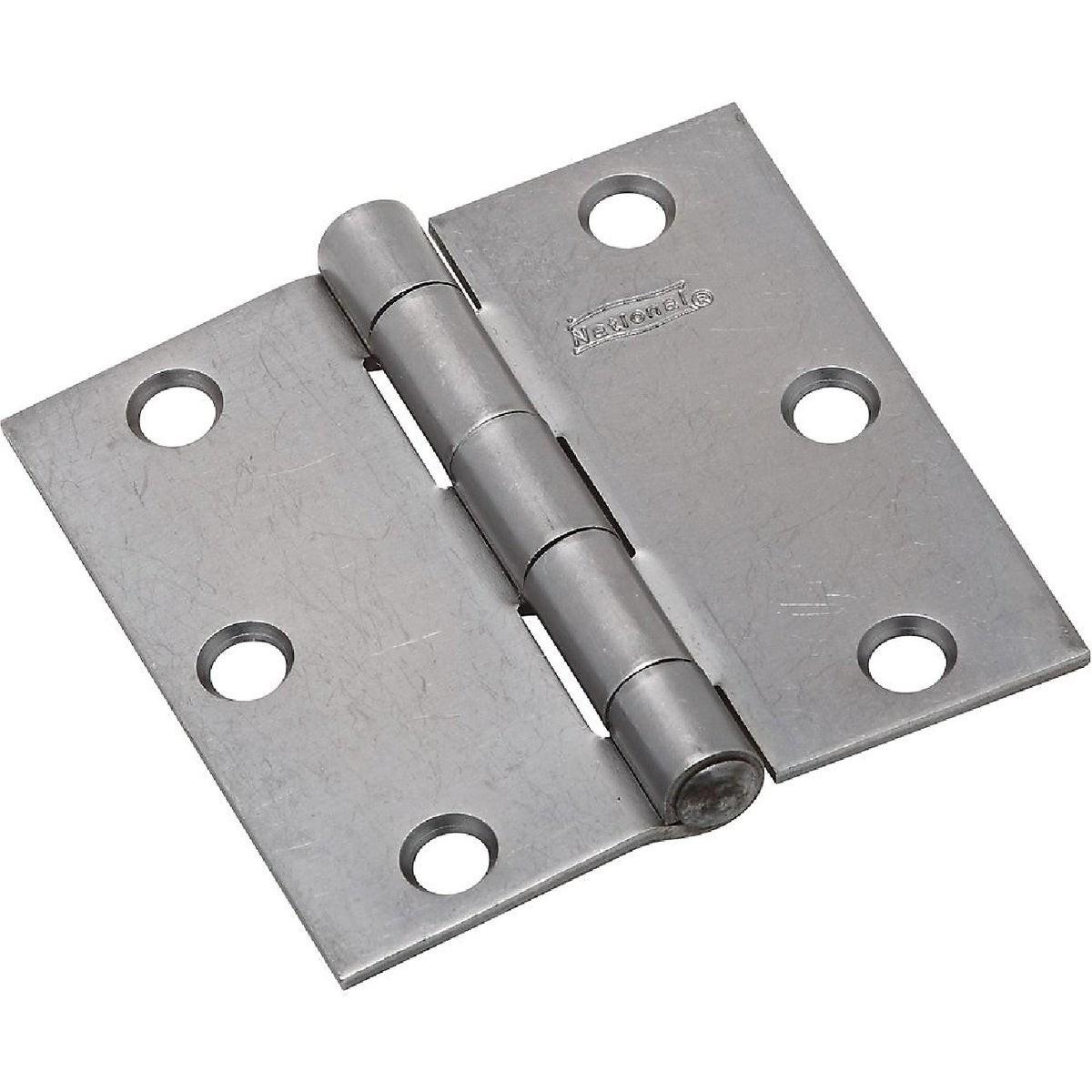

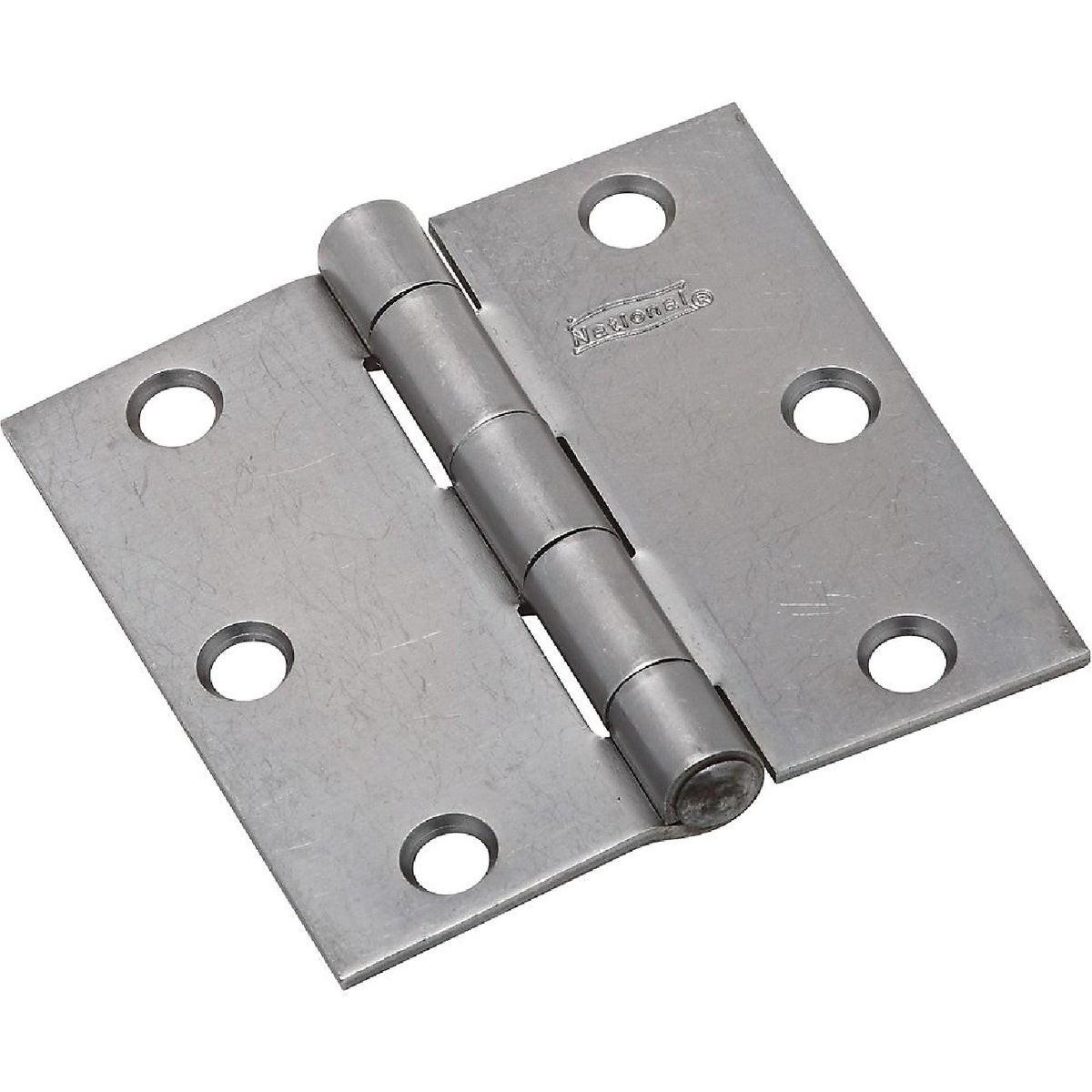

The NATIONAL MARKER N140467 is a 3-inch square steel broad butt door hinge designed for average-weight door installations. Part of the National catalog 505 series, it features a tight pin construction and a plain steel finish. This hinge is a standard residential and light commercial fastening component installed by carpenters, general contractors, and maintenance technicians during door hanging, replacement, or frame repair work.

The N140467 suits average-weight interior and exterior door applications where a square broad butt profile is required. Its tight pin design prevents pin removal during normal service, adding a basic level of security. The plain steel finish makes it suitable for painted or primed applications where the hinge face will not be left exposed to moisture long-term.

Key Features

• 3-inch square broad butt profile for average-weight doors
• Tight pin construction prevents pin removal during service
• Plain steel finish compatible with painted or primed door frames
• Part of the National 505 series catalog line
• Lightweight at 0.273 pounds per unit

Compatibility

Designed as an OEM-style replacement or standard hinge for average-weight residential and light commercial door installations requiring a 3-inch square broad butt profile.

Installation Notes

Installation is typically performed by carpenters or general maintenance technicians using a chisel, drill, and screwdriver. Mortise the hinge leaf flush with the door edge and frame before fastening to ensure proper door swing and clearance. Verify door weight and hinge load rating before installation. Follow applicable local building codes for door hardware requirements.

Technical Specifications

• Size: 3 inches square
• Material: Steel
• Finish: Plain steel
• Pin Type: Tight pin
• Weight: 0.273 pounds
• Series: National 505
• Unit of Measure: Each

Standard Information

• Brand: NATIONAL MARKER
• Manufacturer Part Number: N140467
